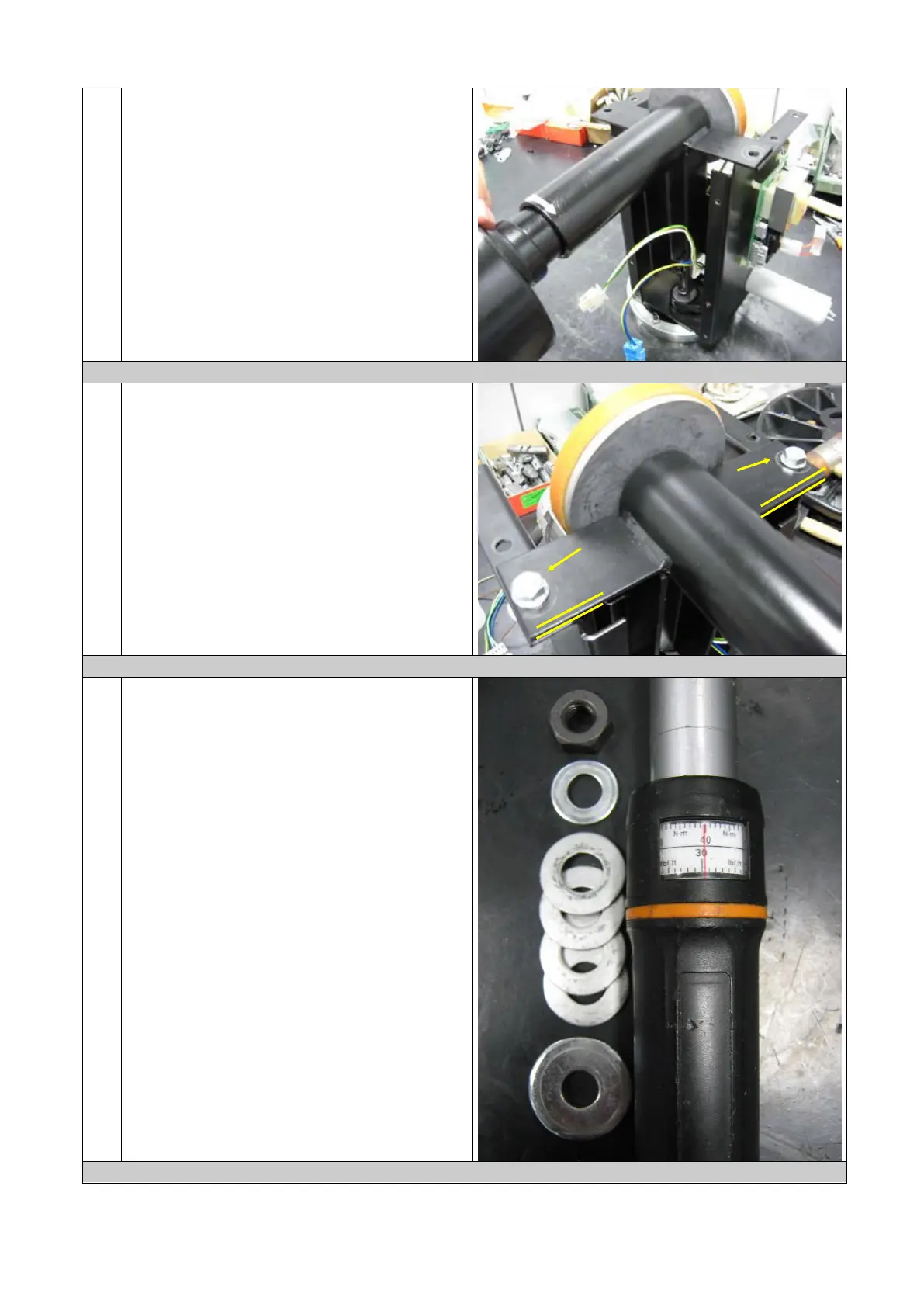

Reposition the spindle unit in the box
16
Align the plates with the box and lock the two
retaining screws
17
To lock the piezo, position the following parts in
sequence: large flat washer, 4 Belleville washers
with the concave side facing the large washer, small
flat washer, nut
These must be tightened with a 400 kg.cm torque
wrench
