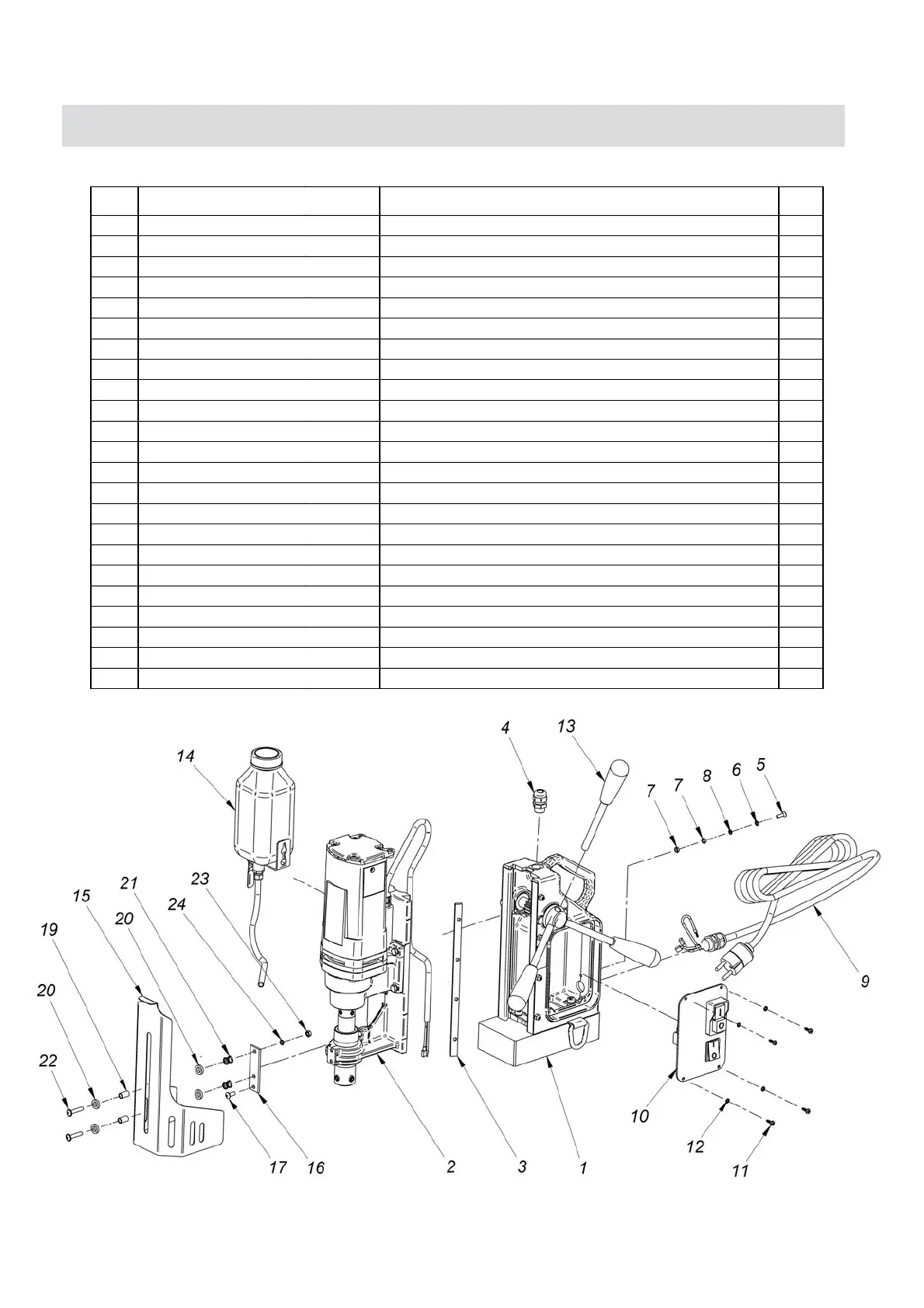

MACHINE BREAKDOWN
ITEM
PART NUMBER
DESCRIPTION
QTY
1 SEE FRAME ASSEMBLY PG14
SEE FRAME ASSEMBLY PG20
FRAME ASSEMBLY, 1
2 SLIDE ASSEMBLY 230V 1
3 SPMT35106N PLATE SLIDE INSERT 1
4 NYLON GLAND 1
5 CROSS RECESSED SCREW -M4X16 1
6 SPRING WASHER-4.1 1
7 HEX NUT M4 2
8 SPRING WASHER 4,3 1
9 SPHM35705 POWER CORD 230V 3x1 1
10
SPPRO4009
PANEL ASSEMBLY 1
11
CROSS RECESSED PAN HEAD TAPPING SCREW 3,5x13
4
12 SPRING WASHER EXTERNAL STAR 3,7 4
13 SPHM35407 SPOKE HANDLE INCLUDING KNOB 3
14 SPMT6 COOLANT SYSTEM 1
15 SPHMPRO4015 GUARD ASSEMBLY 1
16 SPHMPRO4016
BRACKET GUARDS 1
17 SCR, M5 x 12 FHSCS 1
19 SPHMPRO4019 LOWER SLEEVE, 2
20 SPHMPRO4020 NYLON WASHER SR1940, 4
21 SPHMPRO4021 PUSH SPRING, 2
22
SOCKET BUTTON HEAD CAP SCREW WITH FLANGE M5x25,
2
23 HEX NUT M5 1
24 SPRING WASHER M5 1
To Next Page
