HOLEMAKER PRO 40 - Page 21

MACHINE BREAKDOWN

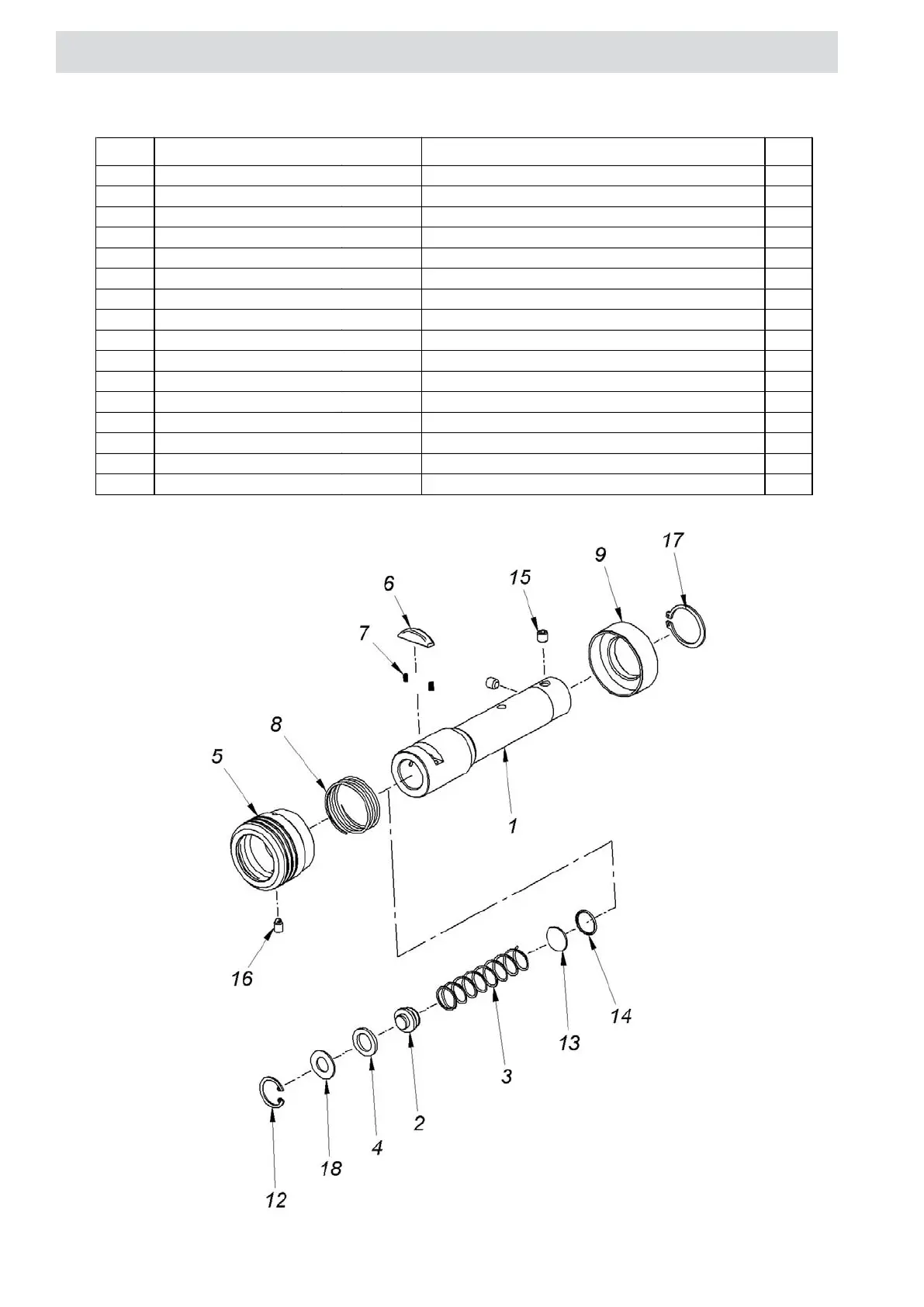

QUICK GRIP ARBOR ASSEMBLY
21
ITEM PART NUMBER DESCRIPTION
2.7.1 ARBOR BODY 1
2.7.2 PLUNGER 1
2.7.3 SPHM40273 SPRING 1,2x14,8x77,8 1
2.7.4 SPHM40274 SEAL 1
2.7.5 SPHM40275 SLEEVE CLAMP 1
2.7.6 SPHM40276 KEY 1
2.7.7 SPHM40277 KEY SPRING 2
2.7.8 SPHM40278 SLEEVE SPRING 1
2.7.9 SLEEVE 1
QTY
SPHM35509
2.7.12 INTERNAL CIRCLIP 19 1
2.7.13 1
2.7.14 O-RING 14x1,25 1
2.7.15 INSERT SCREW M6 x0,75 x6 2
2.7.16 SPHM402716 SCREW M5x8
2.7.17 EXTERNALE CIRCLIP 25
2.7.18 WASHER 16x1
1
WASHER D=18,8x10x1
