Installation Instructions
Pump Hook-Up Connections
DO NOT attempt to drive a pump starter directly from the controller.
Pump start is provided by connecting one side of the coil of a suitable
relay to the Master Valve/Pump Start output of the controller and the
other side to the controller common.
For systems supplied with water from a pump, unused stations MUST
be connected back to the last used station to eliminate the possibilty
of the pump running against a closed head.
Failure to do so could lead to pump damage!

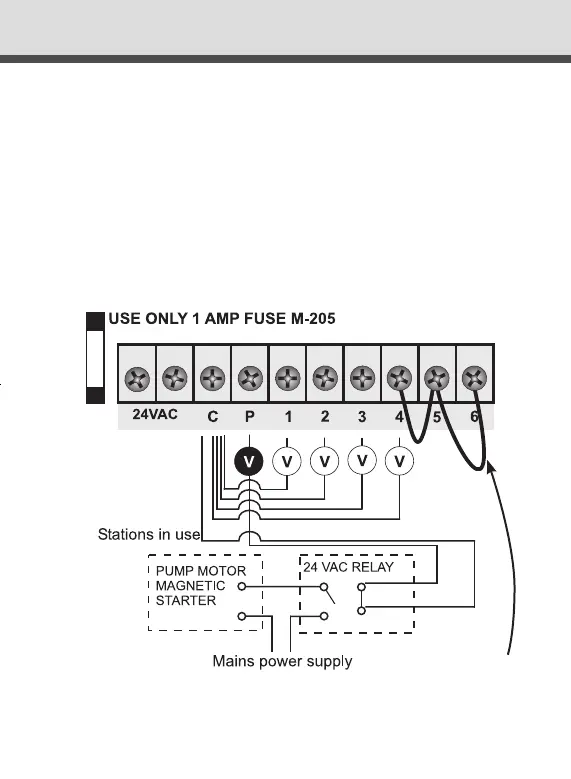

The diagram shows an 6 station controller with 4 active stations (valves):
Unused stations must be
linked back to the last
used station.
Use insulated cable.
DialEZY Controller 4 & 6 Station Instruction Manual Rev03.indd 18 10/06/2016 11:28 AM
