Holo audio Spring 2 User Manual

9 | P a g e

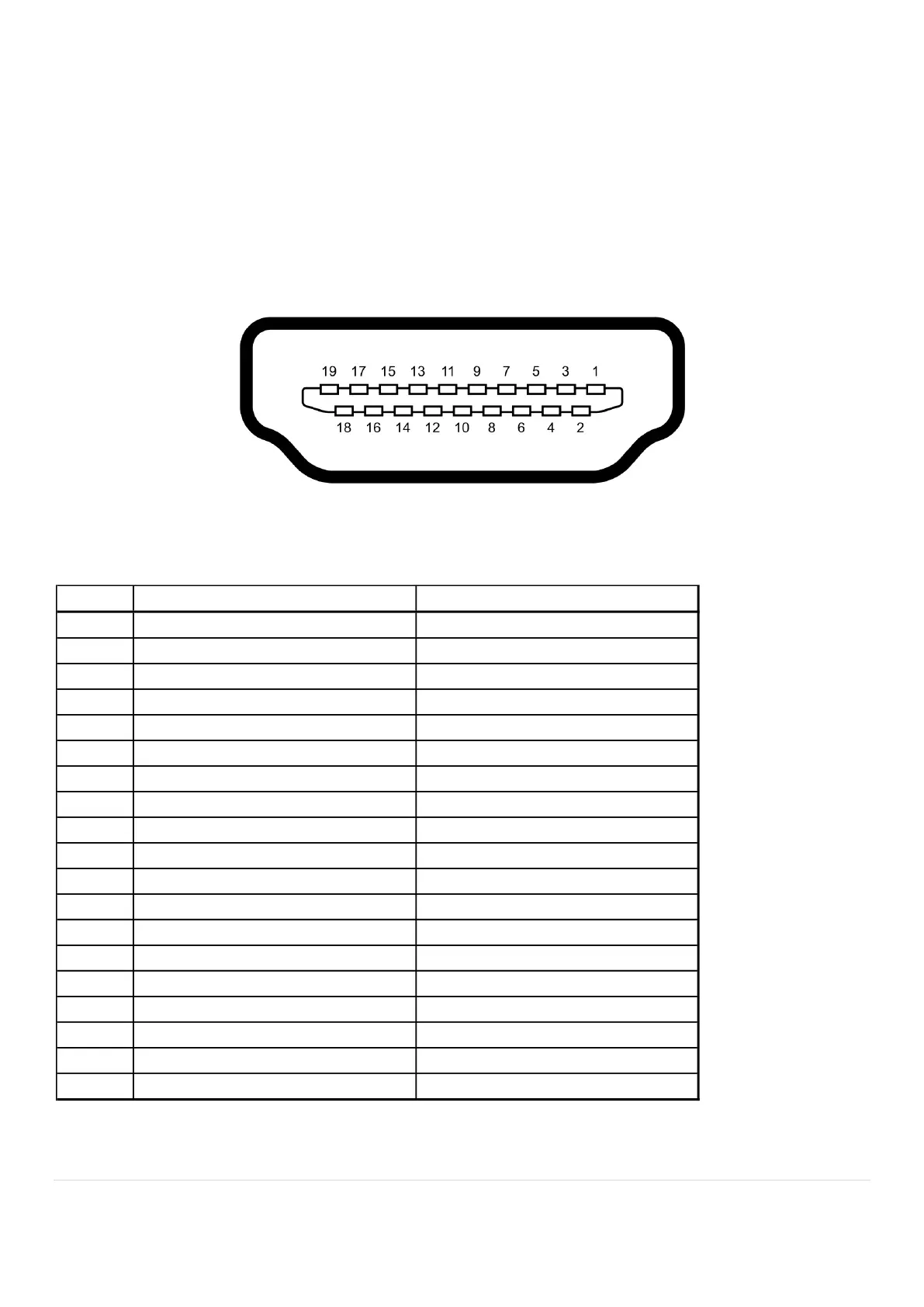

I2S Port
LVDS differential transmission mode has the same physical interface as HDMI, and a HDMI cable can be
used. But note that the electrical signal it transmits is I2S, not the audio and video signals of a conventional
HDMI.
Pin PCM DSD
1 I2S_DATA- DSD_DATA_L-
2 GND GND
3 I2S_DATA+ DSD_DATA_L+
4 I2S_BCK+ DSD_BCK+
5 GND GND
6 I2S_BCK- DSD_BCK-
7 I2S_LRCK- DSD_DATA_R-
8 GND GND
9 I2S_LRCK+ DSD_DATA_R+
10 I2S_MCLK+ DSD_MCLK+
11 GND GND
12 I2S_MCLK- DSD_MCLK-
13 NC NC
14 NC NC
15 NC NC
16 NC NC
17 GND GND
18 NC NC
19 GND GND
