HOMAG CUBE - Connections;Display;Buttons

HOMAG CUBE
Smart device 4.6.2
5 / 249082462090 _ 100210512 _ 82 _ ENU _ 00

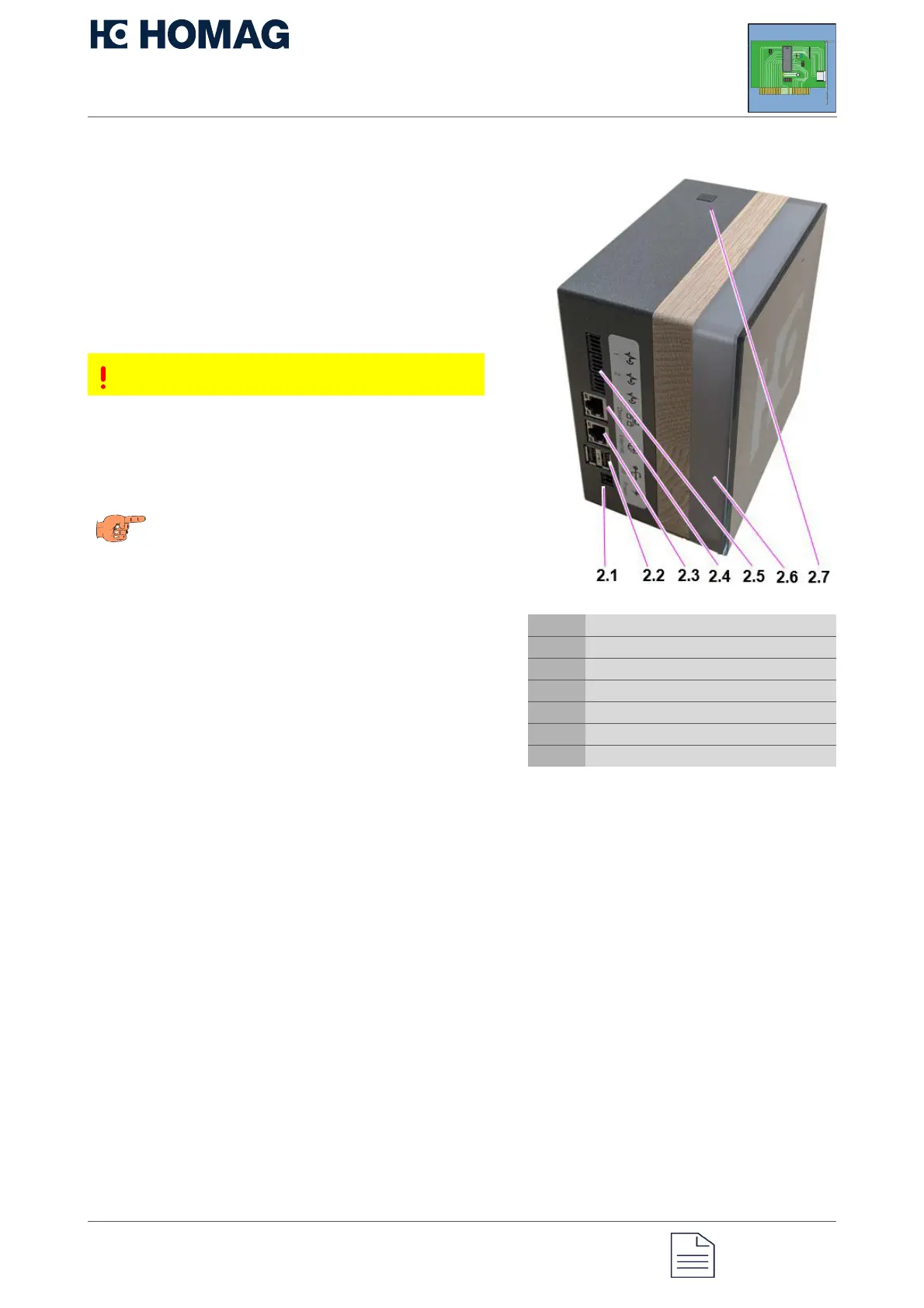

3.1 Connections/display/buttons
Plug connector for plug-in power supply unit
2.1
Ethernet IN RJ45 plug connector for Ethernet
cable from the Internet 2.3
Ethernet OUT (2.4) RJ45 plug connector for
Ethernet cable for connection to the
corresponding peripherals (e.g. LED box) 2.4
USB interfaces, e.g. for printer 2.2
2.1 Connection for power supply unit
2.2 2xUSB
2.3 Ethernet IN (Internet connection)
2.4 Ethernet OUT
2.5 I/Os
2.6 Status display
2.7 Button for functions
Caution
The device may be damaged
• Only devices that require a maximum
current of 100 mA may be connected
to the USB interface.
Note
• The HOMAG CUBE may be used in
indoor spaces only.
• It should not be exposed to direct sunlight
or heat radiation.
