Ⅰ.Set configuration list
NO.
Name
3.6m/4.6m Electric expansion
curtain track
Screw kit
Plastic accessories package
Specifications
NO.
Name
Small rail top mount bracket accessory
package(Number of bracket:3.6 m /
3pcs,4.6 m / 4pcs)
Large rail top mount bracket accessory
package(Number of bracket:3.6 m /
3pcs,4.6 m / 4pcs)

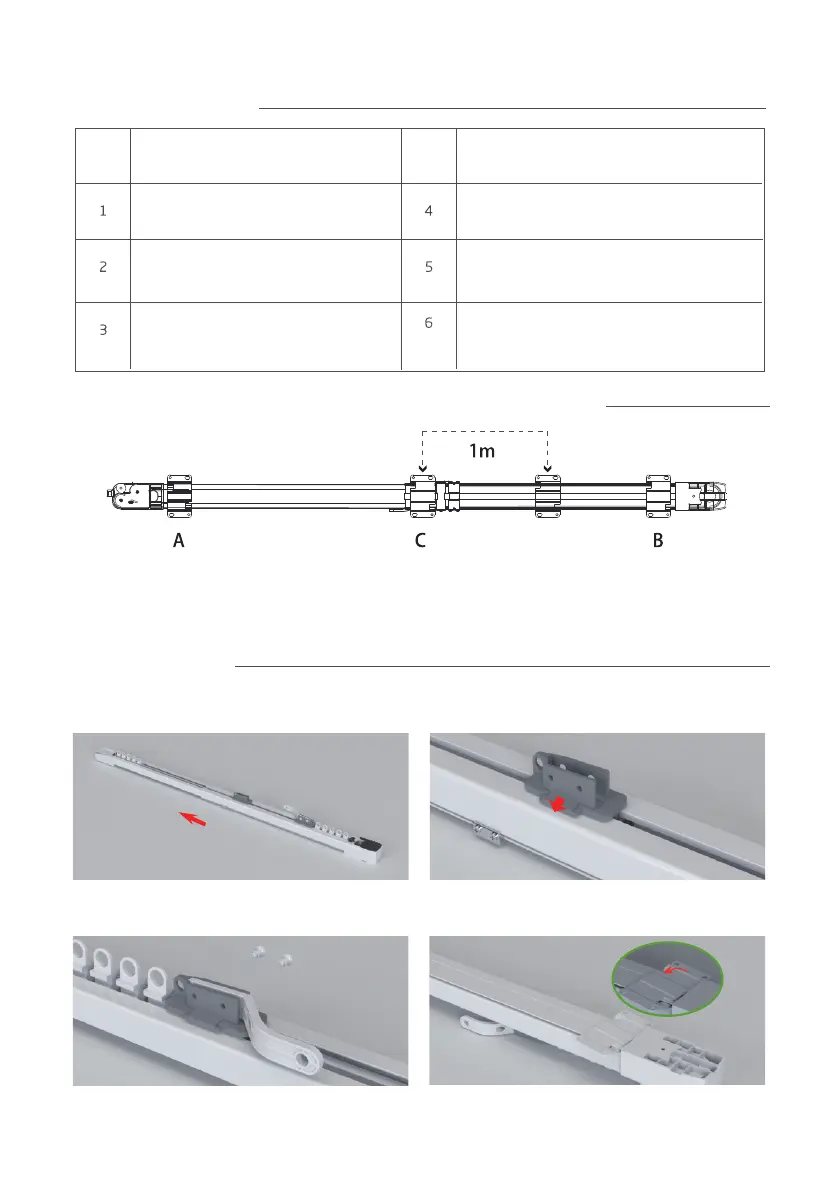

Ⅲ.Track installation
Track length adjustment
As shown above, both ends, A, B and splicing C, must be fitted with a top bracket. The
splice bracket shall be installed at the large rail. Install the rest of the bracket
according to the total length - one at every metre. The 3.6m orbital expansion range is
1.95-3.6m,4.6m. Orbital expansion range is 2.45-4.6m.
1. Pull the track down to the desired length.
2. Pull the paddle out and push the slide to
the end of the small rail.
4. Install the top mounting bracket.
3.Put it in the boom, close the paddle
and screw it in.
Ⅱ.Specification for the installation of top-mounted bracket
Expansion Rail Installation Manual
