Homelite WF10MSP User Manual

14

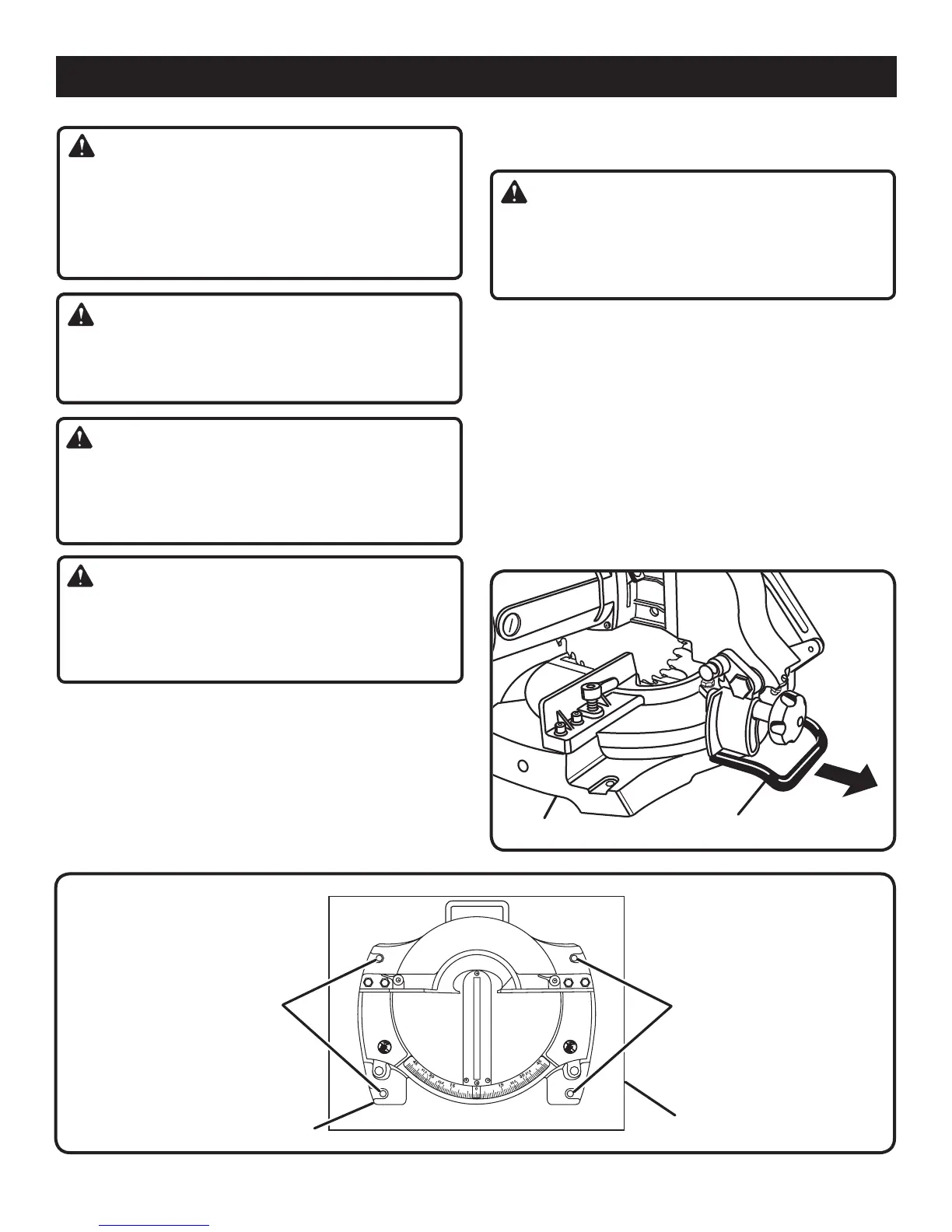

ASSEMBLY
Fig. 8
WARNING:
Do not attempt to modify this tool or create accesso-
ries not recommended for use with this tool. Any such
alteration or modification is misuse and could result in a
hazardous condition leading to possible serious personal
injury.
WARNING:
Do not connect to power supply until assembly is
complete. Failure to comply could result in accidental
starting and possible serious personal injury.
WARNING:
Do not start the compound miter saw without checking
for interference between the blade and the miter fence.
Damage could result to the blade if it strikes the miter
fence during operation of the saw.
WARNING:
A rear bracket is included with this miter saw to prevent
tipping if the saw arm is released suddenly. Do not use
this saw before pulling the rear bracket out and securely
mounting the saw to a work surface.
REAR BRACKET
See Figure 7.
The rear bracket is pushed into the base for shipping pur-
poses.
Before usage, the rear bracket must be fully extended
to prevent tipping. Grasp the rear bracket with one hand and
pull on the bracket until it is fully extended.
TRACE HOLES
AT THESE LOCATIONS FOR
HOLE PATTERN
TRACE HOLES
A
T THESE LOCATIONS FOR
HOLE PATTERN
BASE
MOUNTING SURF
ACE
MOUNTING HOLES
See Figure 8.
WARNING:
Always make sure your compound miter saw is securely
mounted to a workbench or an approved workstand.
Failure to do so could result in an accident resulting in
possible serious personal injury.
Your compound miter saw should be permanently mounted
to a firm supporting surface such as a workbench. Four bolt
holes have been provided in the saw base for this purpose.
Each of the four mounting holes should be bolted securely
using 3/8 in. machine bolts, lock washers, and hex nuts (not
included). Bolts should be of sufficient length to accommodate
the saw base, lock washers, hex nuts, and the thickness of
the workbench.Tighten all four bolts securely.
The hole pattern for mounting to a workbench is shown in
figure 8. Carefully check the workbench after mounting to
make sure that no movement can occur during use. If any
tipping, sliding, or walking is noted, secure the workbench
to the floor before operating.
Fig. 7
REAR BRACKET
BASE
