OPERATION
WRONG
WARNING:
To avoid a kickback and to avoid serious personal injury,
never position the concave edge of bowed or warped
material against the fence.
CLAMPING WIDE WORKPIECES
See Figure 33.
When cutting wide workpieces, such as 2 in. x 6 in., boards
should be clamped with a C-clamp as shown in figure 33.
Bevel
Angle Type of Cut
Setting
Left side, inside corner
1. Top edge of molding against fence
2. Miter table set right 31.62˚
3. Save left end of cut
Right side, inside cor
ner
1. Bottom edge of molding against fence
2. Miter table set left 31.62˚
3. Save left end of cut
Left side, outside corner
1. Bottom edge of molding against fence
2. Miter table set left 31.62˚
3. Save right end of cut
Right side, outside corner
1. Top edge of molding against fence
2. Miter table set right 31.62˚
3. Save right end of cut
33.85˚
33.85˚
33.85˚
33.85˚
Fig. 33

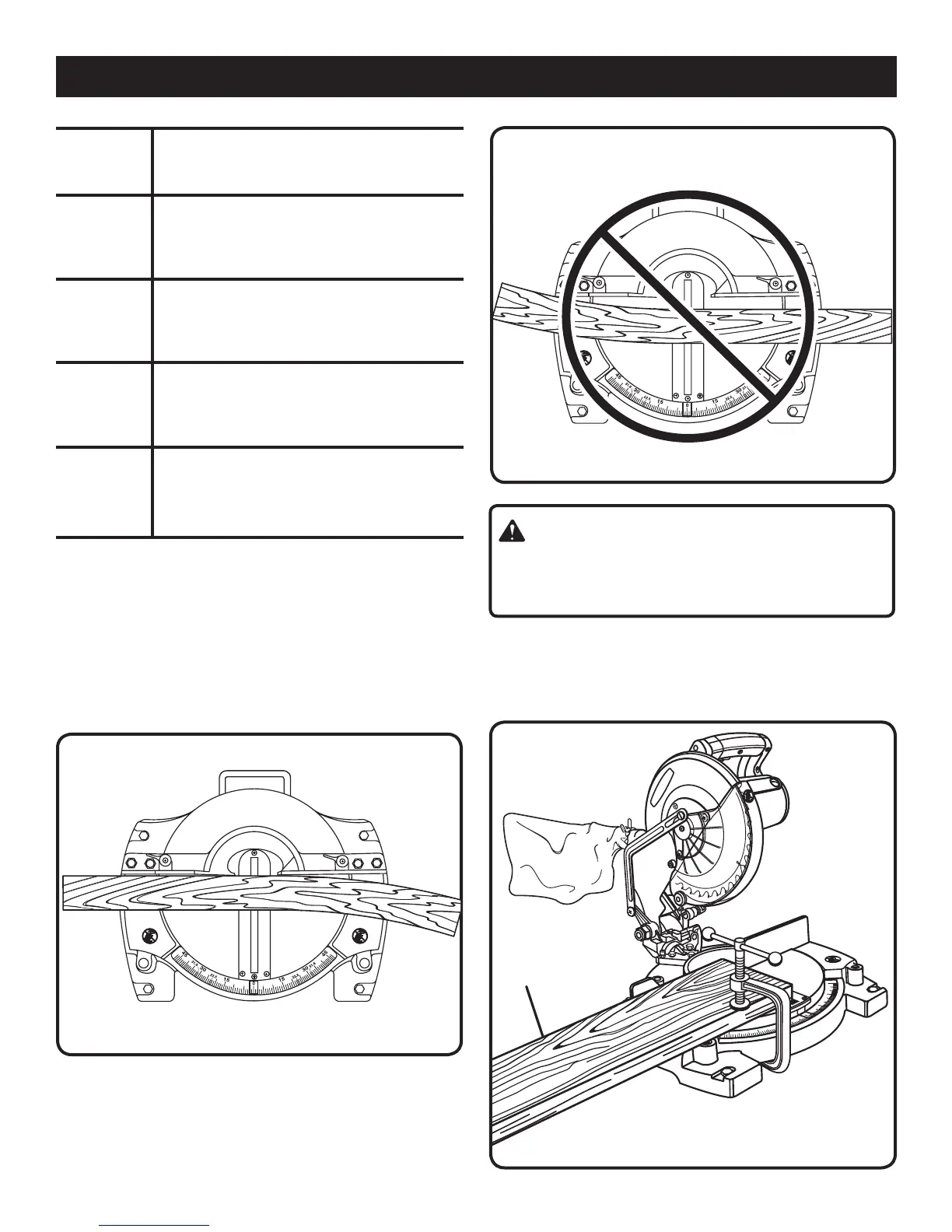

CUTTING WARPED MATERIAL
See Figures 31 - 32.
When cutting warped material, always make sure it is posi-
tioned on the miter table with the convex side against the
fence as shown in figure 31.
If the warped material is positioned the wrong way as shown
in figure 32, it will pinch the blade near the completion of
the cut.
Fig. 31
RIGHT
Fig. 32
WIDE
BOARD
