Honda 08E91-E22-101B - Page 10

10 of 28 AII 44367 (1008) © 2010 American Honda Motor Co., Inc. – All Rights Reserved.

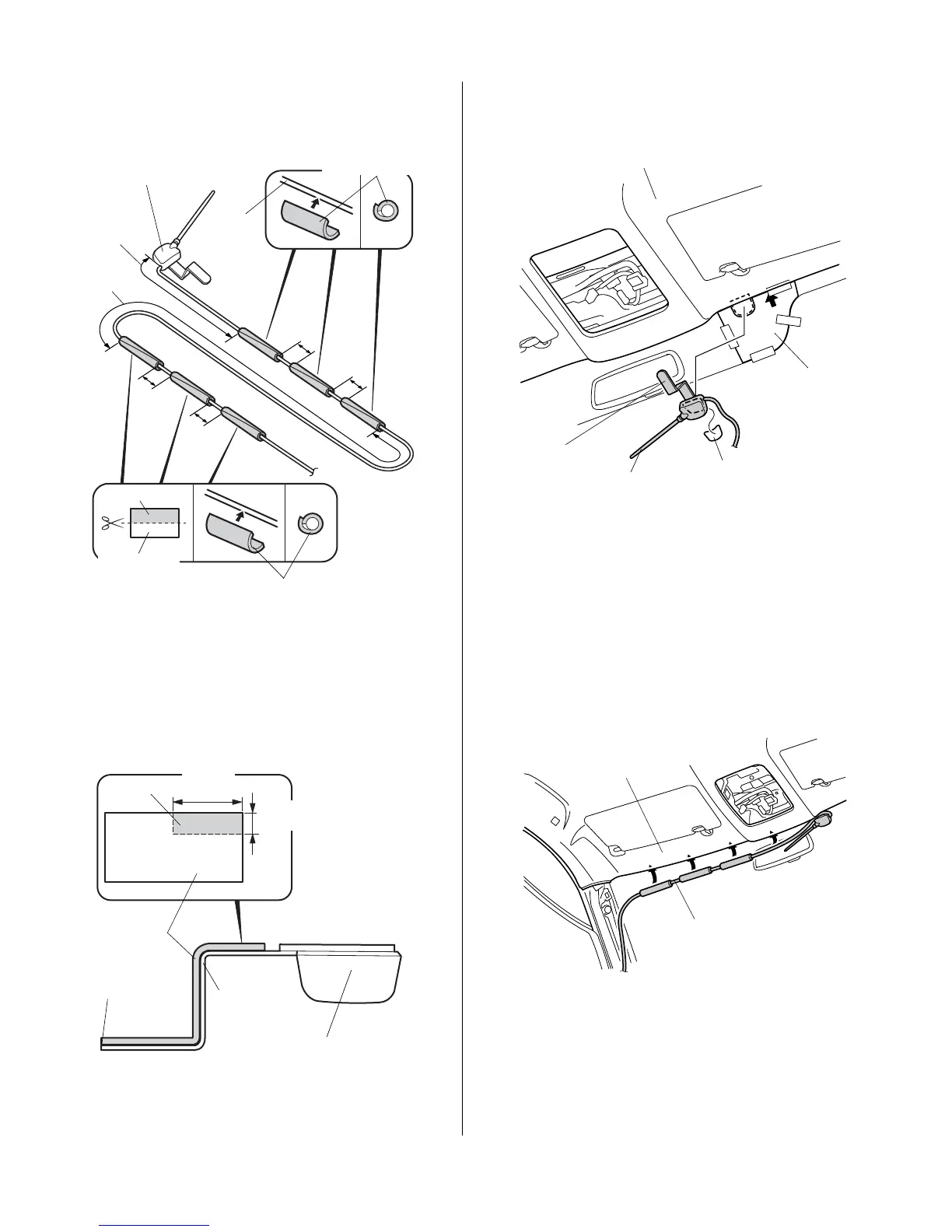

25. Measure the antenna cable as shown. Wrap three
urethane tapes onto the antenna cable in those
positions.
26. Cut two urethane tapes in half. Wrap three of the half
pieces of urethane tape around the antenna cable as
shown.
27. Cut the urethane tape as shown. Attach the urethane
tape to the antenna plate as shown.
6N3003AK
URETHANE TAPE
ANTENNA
720 mm
(28 in.)
ANTENNA
CABLE
390 mm
(15 in.)
30 mm
(1.2 in.)
URETHANE
TAPE
Cut.
HALF URETHANE TAPE
30 mm
(1.2 in.)
30 mm
(1.2 in.)
30 mm
(1.2 in.)
780101BK
ANTENNA
URETHANE
TAPE
15 mm
(0.6 in.)
Cut.
60 mm
(2.4 in.)
ANTENNA
PLATE
Align.
28. Using isopropyl alcohol on a shop towel, thoroughly
clean the area where the antenna will attach. Allow it
to dry before proceeding.
29. Remove the adhesive backing from the antenna.
Insert the antenna plate under the headliner, align
the antenna with the template, and attach the
antenna to the windshield.
30. Remove the template.
31. Push the antenna cable under the headliner as
shown. Be careful not to crease the headliner.
932002AD
TEMPLATE
ADHESIVE
BACKING
ANTENNA
ANTENNA
PLATE
HEADLINER
932003AD
ANTENNA
CABLE
HEADLINER
