14 of 28 AII 44367 (1008) © 2010 American Honda Motor Co., Inc. – All Rights Reserved.

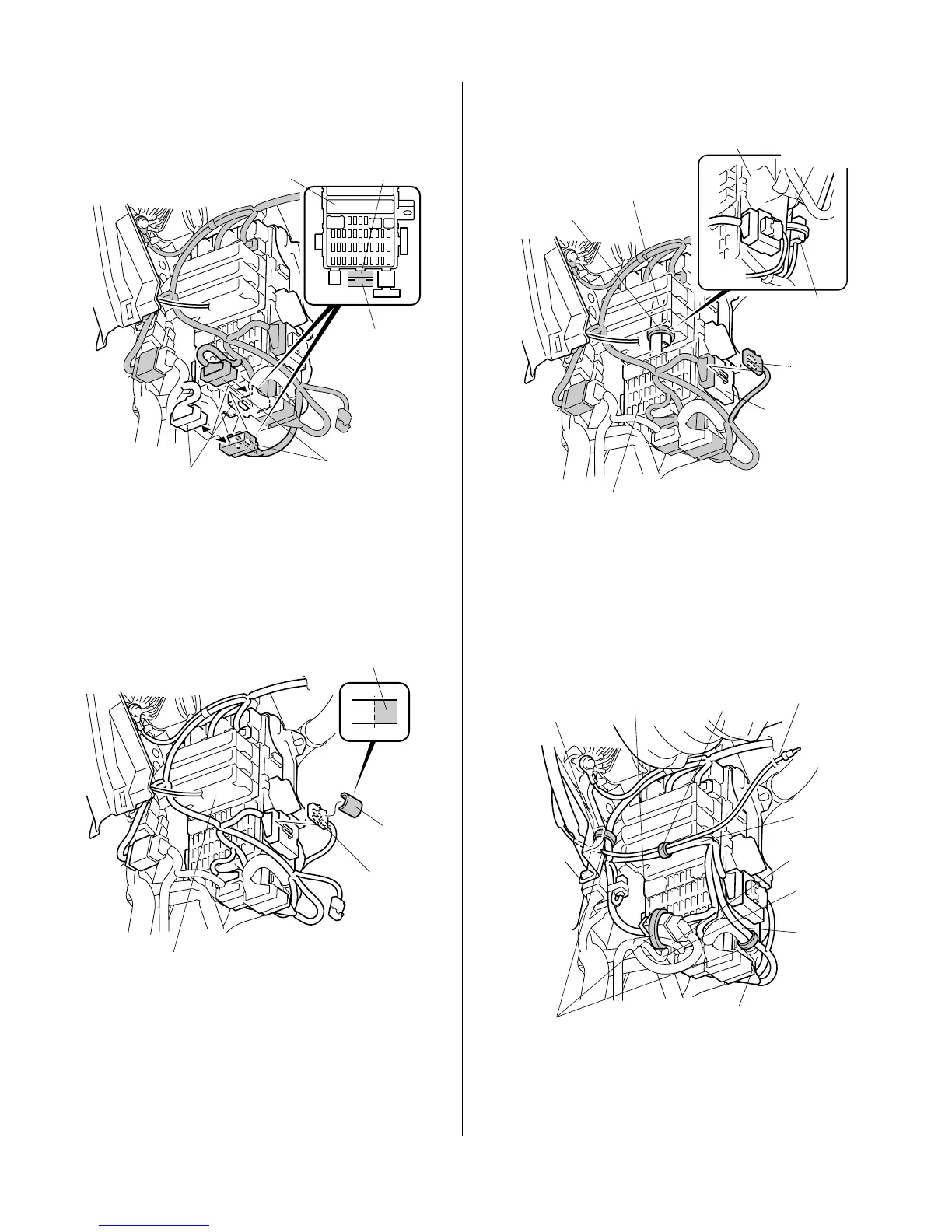

51. Unplug the vehicle 24-pin connector from the
underside of the fuse box and plug it into the engine
starter harness 24-pin connector as shown.
52. Install the engine starter harness 24-pin connector to
the 24-pin connector on the underside of the fuse
box as shown.
53. Remove the vehicle fuse case.
54. Wrap the vehicle fuse case with one urethane tape
half cut in step 26.
921605BD
VEHICLE 24-PIN
CONNECTOR
ENGINE STARTER
HARNESS 24-PIN
CONNECTOR
VEHICLE 24-PIN
CONNECTOR
FUSE BOX
ENGINE START-
ER HARNESS 24-
PIN CONNECTOR
921606BD
URETHANE
TAPE
FUSE BOX
URETHANE
TAPE
VEHICLE
FUSE CASE
55. Secure the vehicle fuse case to the vehicle harness
with one wire tie.
56. Install the engine starter harness fuse case to the
vehicle 20-pin connector.
57. Secure the antenna cable to the engine starter
harness with one wire tie.
58. Secure the engine starter harness 23-pin connector
(blue), and the engine starter harness to the vehicle
harness with three wire ties.
921607BD
VEHICLE 20-PIN
CONNECTOR
WIRE TIE
VEHICLE
HARNESS
ENGINE
STARTER
HARNESS
FUSE CASE
VEHICLE
FUSE CASE
VEHICLE
HARNESS
FUSE BOX
FUSE BOX
921608BD
ENGINE STARTER
HARNESS 23-PIN
CONNECTOR
(Blue)
ENGINE
STARTER
HARNESS
WIRE TIE
VEHICLE
HARNESS
ANTENNA
CABLE
WIRE TIE
VEHICLE
HARNESS
SRS
HARNESS
(Yellow)
ENGINE
STARTER
HARNESS
VEHICLE
HARNESS
