Honda 08E91-E22-101B - Page 15

© 2010 American Honda Motor Co., Inc. – All Rights Reserved. AII 44367 (1008) 15 of 28

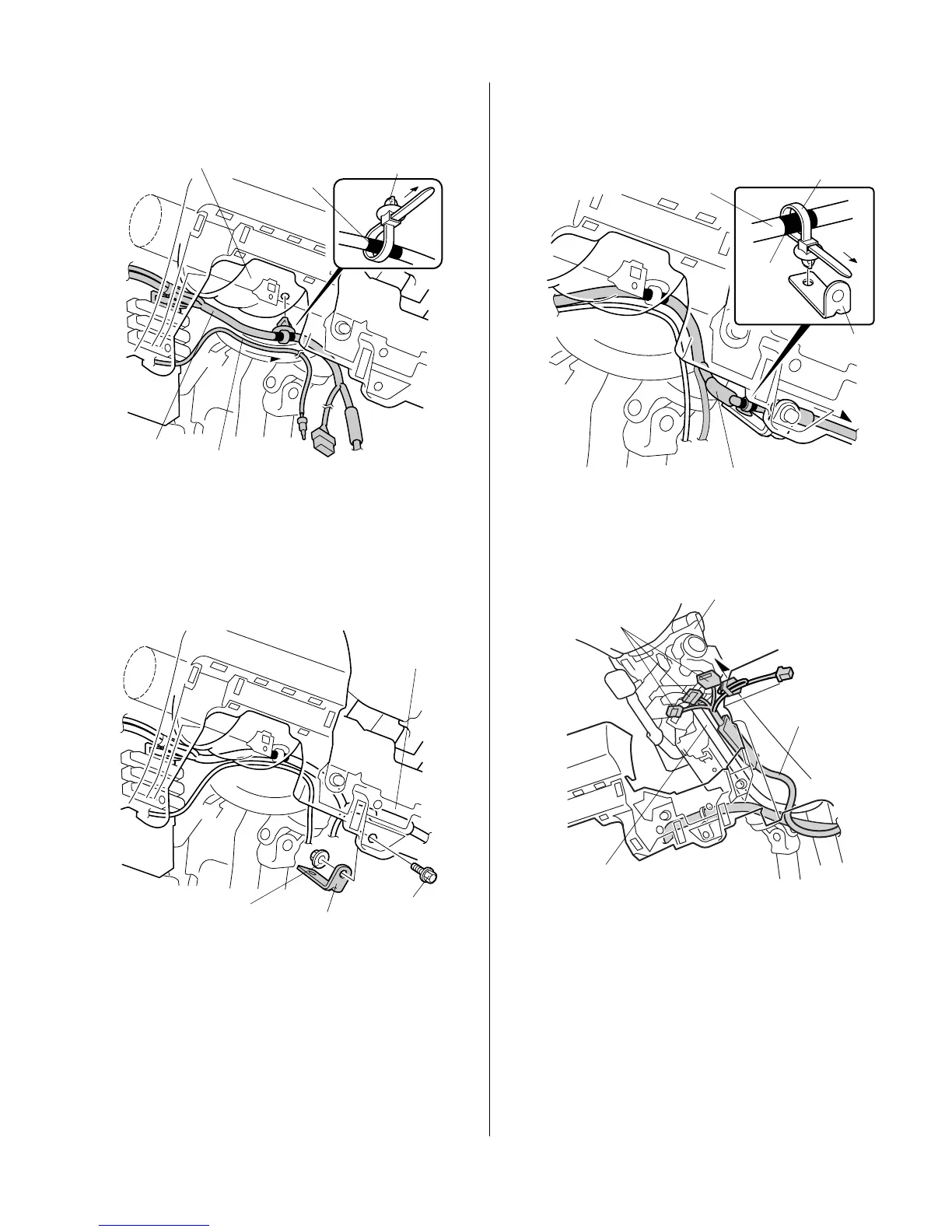

59. Attach one wire tie with clip to the engine starter
harness at the white tape, then push the clip into the
hole in the steering hanger beam.
60. Route the antenna cable.
61. Install the bracket on the instrument panel with one
6 x 12 mm washer bolt and one 6 mm flange nut.
921609BD
ENGINE
STARTER
HARNESS
WIRE TIE WITH CLIP
STEERING HANGER
BEAM
ANTENNA
CABLE
WHITE
TAPE
921610BD
INSTRUMENT
PANEL
6 x 12 mm
WASHER
BOLT
BRACKET
6 mm FLANGE
NUT
62. Attach the wire tie with clip to the engine starter
harness at the white tape, then push the clip into the
hole in the bracket.
63. Route the engine starter harness 7-pin connectors
(brown, green, white) to the steering column.
921611BD
BRACKET
ENGINE STARTER
HARNESS
ENGINE
STARTER
HARNESS
WIRE TIE WITH CLIP
WHITE
TAPE
6D01120Y
ENGINE STARTER
HARNESS
ENGINE STARTER
HARNESS 7-PIN
CONNECTORS
STEERING COLUMN
VEHICLE
HARNESS
