Honda 08E91-E22-101B - Page 16

16 of 28 AII 44367 (1008) © 2010 American Honda Motor Co., Inc. – All Rights Reserved.

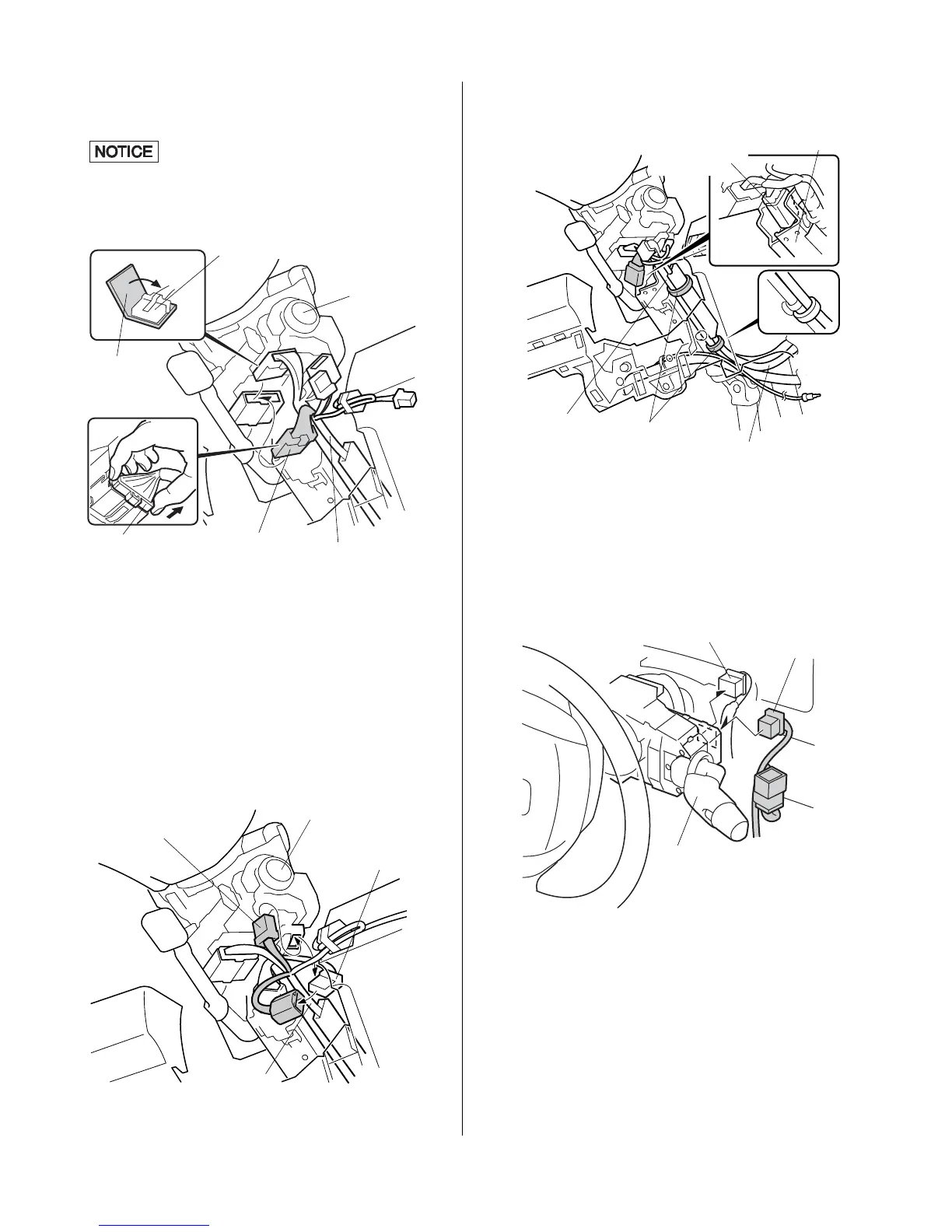

64. Unplug the vehicle 7-pin connector (brown) from the
ignition switch and plug in the engine starter harness
7-pin connector (brown) as shown.
Make sure the engine starter harness
7-pin connector (brown) is plugged in securely. A
loose connector can cause the engine to stall.
65. Wrap the vehicle 7-pin connector (brown) with a
urethane tape.
66. Unplug the vehicle 7-pin connector (white) from the
ignition switch and plug in the engine starter harness
7-pin connector (white) as shown. Plug the vehicle
7-pin connector into the engine starter harness 7-pin
connector.
721301AK
VEHICLE 7-PIN
CONNECTOR (Brown)
ENGINE
STARTER
HARNESS
ENGINE STARTER
HARNESS 7-PIN
CONNECTOR
(Brown)
IGNITION
SWITCH
URETHANE
TAPE
Pull the
connector
and make
sure it is
locked.
7213020K
ENGINE STARTER
HARNESS 7-PIN
CONNECTOR
(white)
VEHICLE 7-PIN
CONNECTOR
(White)
IGNITION
SWITCH
ENGINE
STARTER
HARNESS
67. Place the vehicle 7-pin connector (brown) into the
gap of the column.
68. Secure the engine starter harness to the vehicle
harness with two wire ties.
69. Unplug the vehicle 8-pin connector (black) from the
wiper switch. Plug the engine starter harness 8-pin
connector to the wiper switch.
972303AD
VEHICLE 7-PIN
CONNECTOR
(Brown)
VEHICLE
HARNESS
WIRE TIE
VEHICLE PANEL
ENGINE STARTER
HARNESS
6D01160Y
ENGINE STARTER
HARNESS 8-PIN
CONNECTOR
VEHICLE 8-PIN
CONNECTOR (Black)
WIPER
SWITCH
