© 2010 American Honda Motor Co., Inc. – All Rights Reserved. AII 44367 (1008) 17 of 28

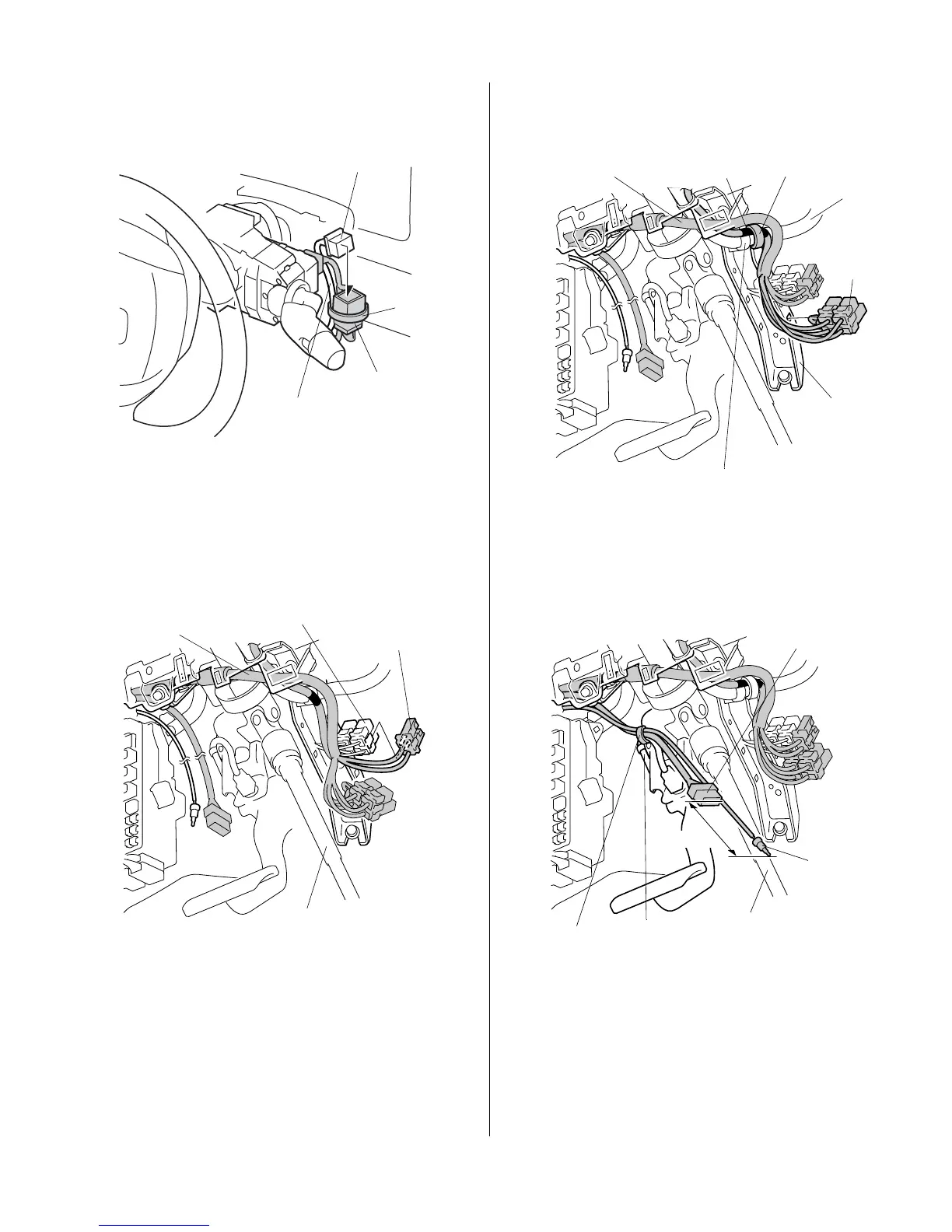

70. Plug the vehicle 8-pin connector (black) to the
engine starter harness 8-pin connector.
71. Secure the engine starter harness 8-pin connector
(black) to the vehicle harness with one wire tie.
72. Install the engine starter harness fuse case on the
vehicle relay block.
6D01171Y
VEHICLE 8-PIN
CONNECTOR
(Black)
ENGINE STARTER
8-PIN CONNECTOR
(Black)
WIRE TIE
VEHICLE
HARNESS
921701BD
ENGINE STARTER
HARNESS
ENGINE STARTER
HARNESS FUSE
CASE
VEHICLE RELAY
BLOCK
STEERING
SHAFT
73. Align the white tape on the engine starter harness to
the vehicle clip, and secure the engine starter
harness to the vehicle harness with one wire tie.
74. Secure the relay block on the engine starter harness
to the vehicle frame.
75. Align the antenna cable as shown.
76. Secure the engine starter harness and antenna
cable to the vehicle harness with one wire tie.
921702BD
ENGINE STARTER
HARNESS
ENGINE
STARTER
HARNESS
RELAY
BLOCK
VEHICLE
FRAME
VEHICLE
HARNESS
WIRE TIE
VEHICLE CLIP
WHITE
TAPE
921703BD
VEHICLE
HARNESS
WIRE TIE
STEERING
SHAFT
ENGINE STARTER
HARNESS 28-PIN
CONNECTOR
ANTENNA
CABLE
70 mm
