18 of 28 AII 44367 (1008) © 2010 American Honda Motor Co., Inc. – All Rights Reserved.

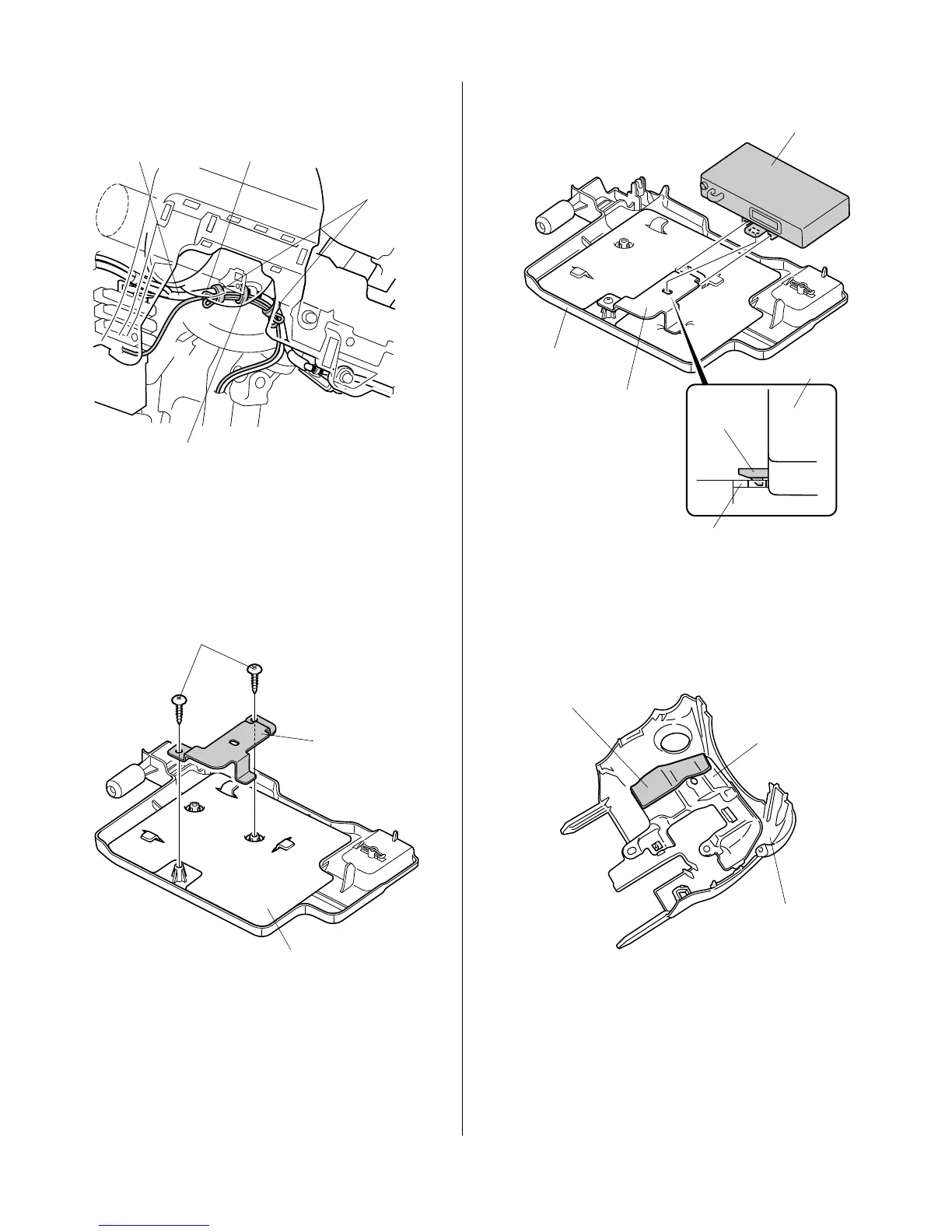

77. Bundle the excess antenna cable and secure it to the
vehicle harness with one wire tie.
78. Secure the antenna cable to the vehicle harness with
two wire ties.
79. Install the control unit bracket on the driver’s under
cover with two 5 x 12 mm self-tapping screws.
WIRE TIE
WIRE TIE
ANTENNA CABLE
Bundle the excess.
VEHICLE
HARNESS
CONTROL UNIT
BRACKET
DRIVER’S UNDER
COVER
SELF-TAPPING
SCREW, 5 x 12 mm
80. Install the control unit to the control unit bracket.
81. Using isopropyl alcohol on a shop towel, thoroughly
clean the area where the urethane tape will attach.
82. Attach a urethane tape to the bracket on the steering
column lower cover.
CONTROL UNIT
CONTROL UNIT
BRACKET
CONTROL UNIT
TAB
CONTROL UNIT
BRACKET
DRIVER’S UNDER
COVER
STEERING COLUMN
LOWER COVER
URETHANE TAPE
BRACKET
To Next Page
