© 2010 American Honda Motor Co., Inc. – All Rights Reserved. AII 44367 (1008) 19 of 28
If the vehicle is equipped with a vehicle security system,
go to step 101; otherwise, continue with step 83.

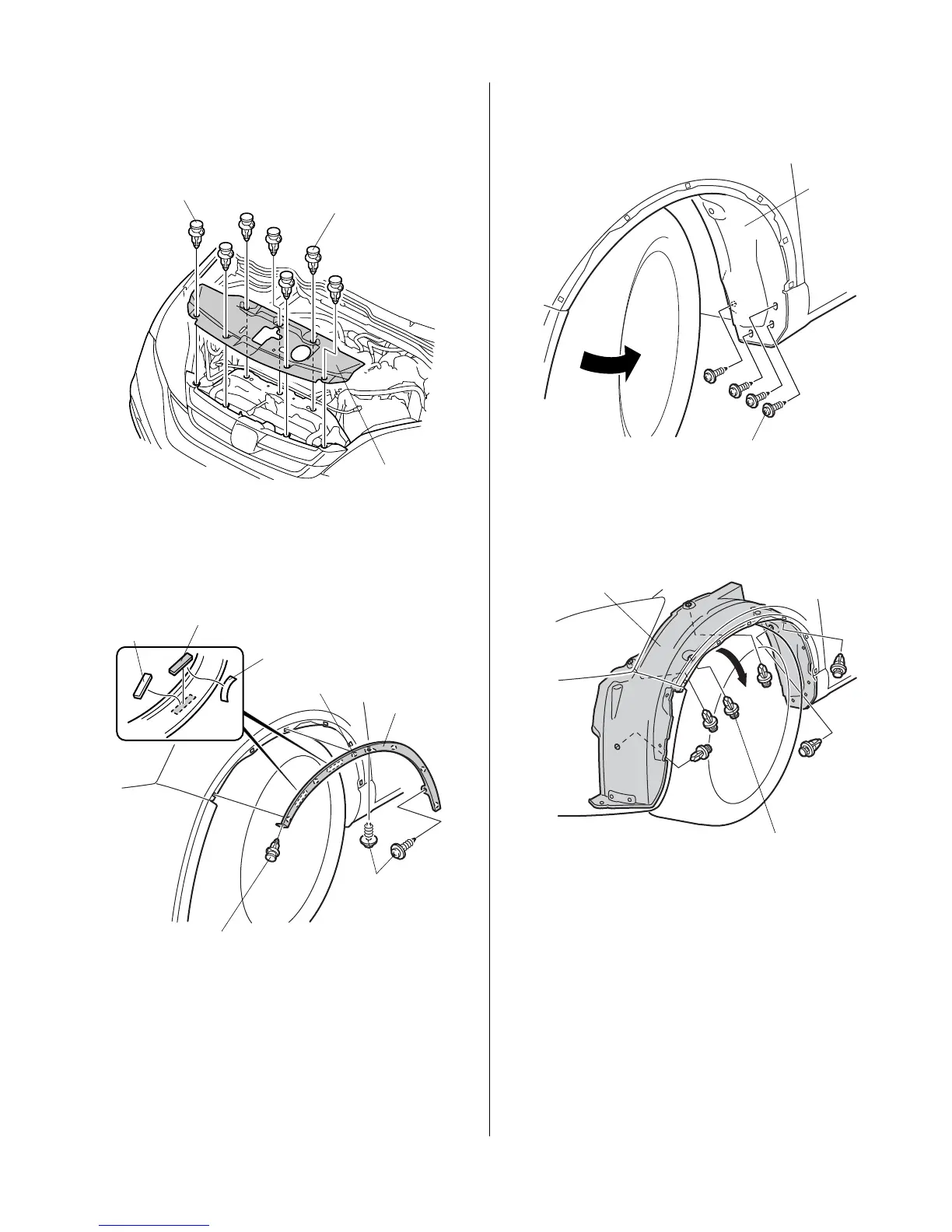

83. Remove the radiator cover (five clips A and two
clips B).
84. Remove the left fender arch (one clip, two
self-tapping screws, and six clips).
85. Remove two old spacers from the left fender arch.
86. Using isopropyl alcohol, thoroughly clean the area
where the spacers will attach. Replace the two
spacers with new ones.
920501AX
RADIATOR
COVER
5 CLIPS A
2 CLIPS B
721305AK
OLD
SPACER
6 CLIPS
ADHESIVE BACKING
Remove.
SELF-TAPPING
SCREW
LEFT
FENDER
ARCH
SPACER
CLIP
87. Remove four self-tapping screws from the left inner
fender.
88. Lower the left inner fender (six clips).
771301AK
4 SELF-TAPPING
SCREWS
LEFT INNER
FENDER
771302AK
6 CLIPS
LEFT INNER
FENDER
