Honda 08E91-E22-101B - Page 22

22 of 28 AII 44367 (1008) © 2010 American Honda Motor Co., Inc. – All Rights Reserved.

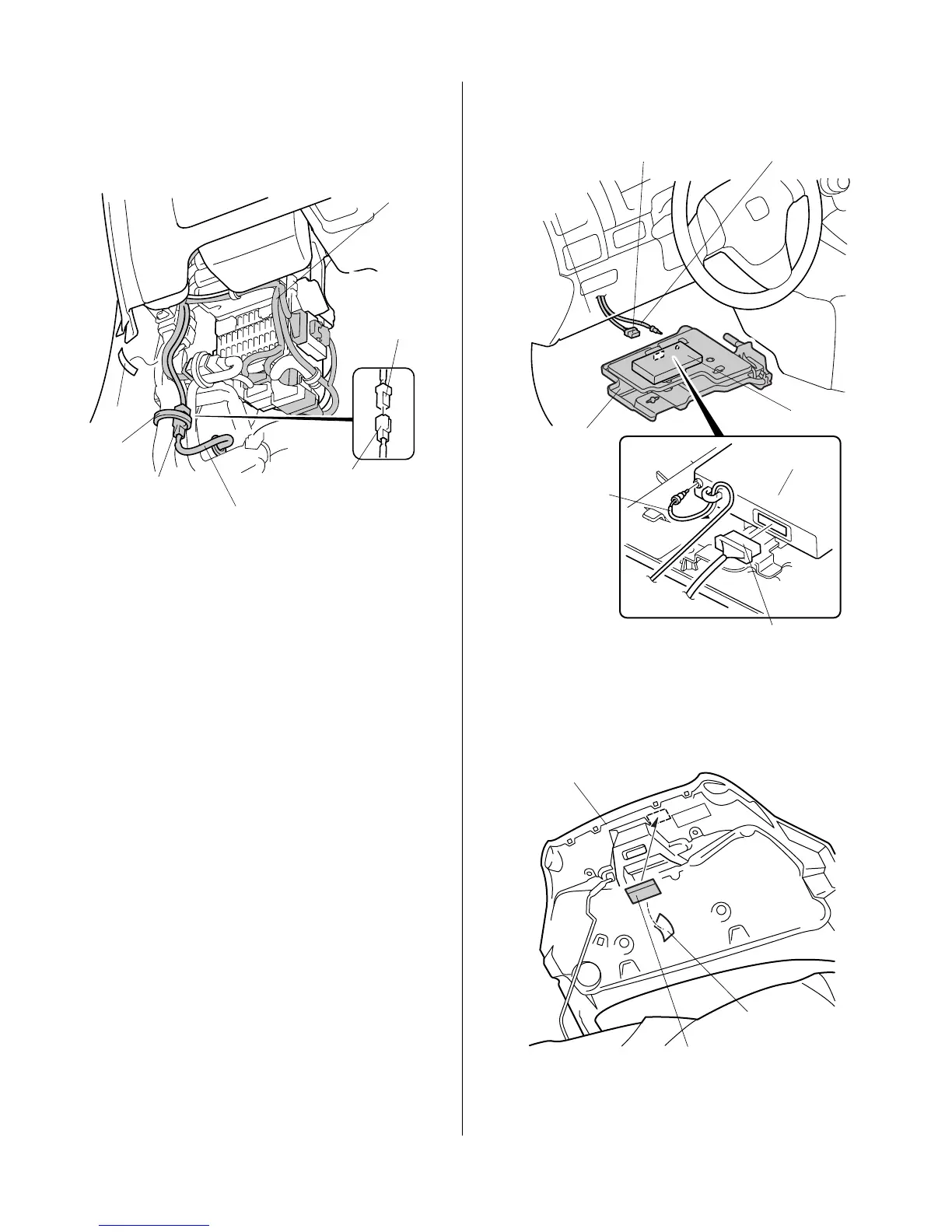

100. Remove the tape and plug the hood switch harness
2-pin connector into the engine starter harness 2-pin
connector. Secure the connector to the vehicle
harness with one wire tie.
921707BD
HOOD SWITCH
HARNESS 2-PIN
CONNECTOR
WIRE
TIE
PLUGGED
CONNECTORS
HOOD SWITCH
HARNESS
TAPE
ENGINE STARTER
HARNESS
ENGINE
STARTER
HARNESS
2-PIN
CONNECTOR
101. Plug the engine starter harness 28-pin connector
and antenna cable into the control unit as shown.
102. Reinstall the driver’s lower cover and the driver’s
under cover.
103. Using isopropyl alcohol on a shop towel, thoroughly
clean the area where the caution label will attach.
104. Attach the caution label to the hood.
ANTENNA
CABLE
ENGINE STARTER HARNESS
28-PIN CONNECTOR
ENGINE STARTER HARNESS
28-PIN CONNECTOR
DRIVER’S
LOWER
COVER
ANTENNA
CABLE
DRIVER’S
UNDER
COVER
CONTROL
UNIT
CONTROL
UNIT
6D2401AK
CAUTION
LABEL
HOOD
ADHESIVE
BACKING
