4 of 7 AII 47246 (1208) © 2012 American Honda Motor Co., Inc. – All Rights Reserved.

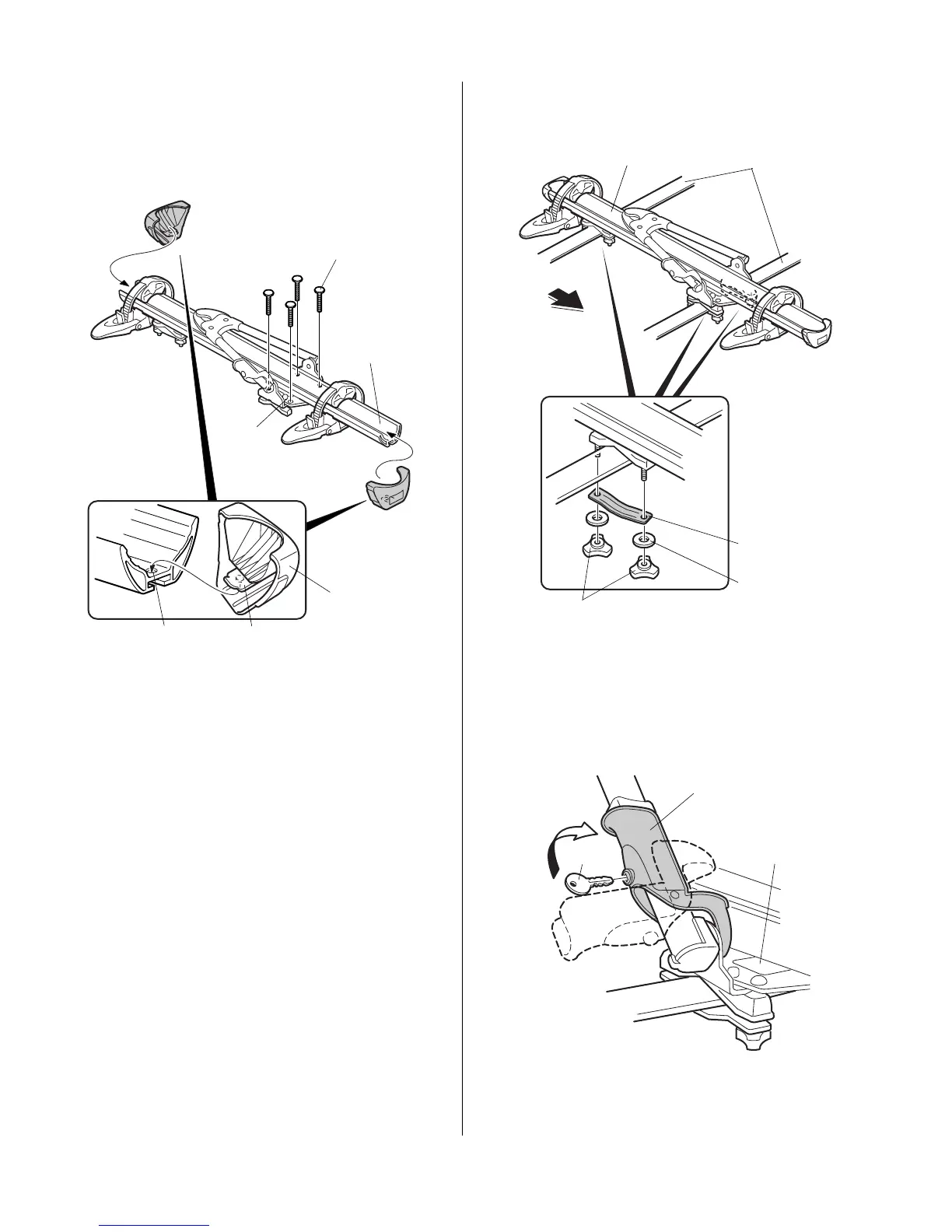

5. Install the end caps onto the bicycle attachment by
aligning the lock tab on the end cap with the hole in
the bicycle attachment. Push on each end cap until
the lock tab “clicks” into place. Insert four bolts into
the front plate.
950107AT
HOLE
LOCK
TAB
END CAP
BICYCLE
ATTACHMENT
FRONT
PLATE
4 BOLTS
6. Install the bicycle attachment to the crossbars with
six knobs, six washers, and three brackets.
7. Close the locking clamp lever. To deter theft of the
bicycle attachment, lock the locking clamp lever with
the key.
950108AT
CROSSBARS
KNOB
BRACKET
2 WASHERS
BICYCLE
ATTACHMENT
FRONT
950109AT
LOCKING
CLAMP
LEVER
KEY
BICYCLE
ATTACHMENT
