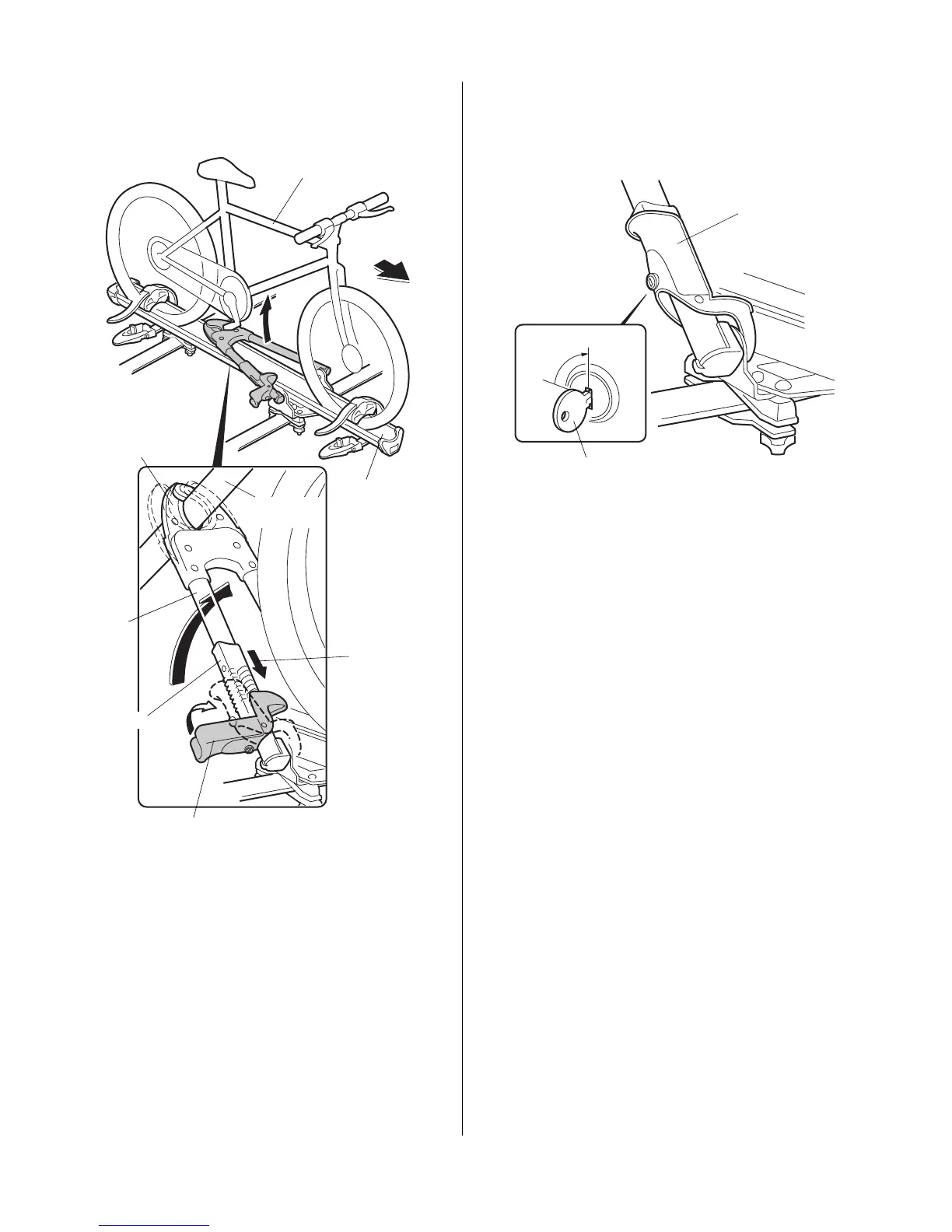

12. Position the bicycle on the bicycle attachment. Lift
the arm up, position the bicycle holder around the
bicycle frame, then push down the slider.
13. Push up the locking clamp lever to secure the bicycle
frame.
950111AT
BICYCLE
FRAME
SLIDER
BICYCLE
LOCKING CLAMP
LEVER
BICYCLE
HOLDER
Push down.
ARM
FRONT
BICYCLE
ATTACHMENT
14. Lock the locking clamp lever by inserting the key into
the key cylinder and turning it in a clockwise
direction.
950112AT
LOCKING
CLAMP
LEVER
KEY
Turn.
