Attach the tether strap hook to the
anchor, making sure the tether
strap is not twisted.
Tighten the strap according to the
seat maker’s instructions.

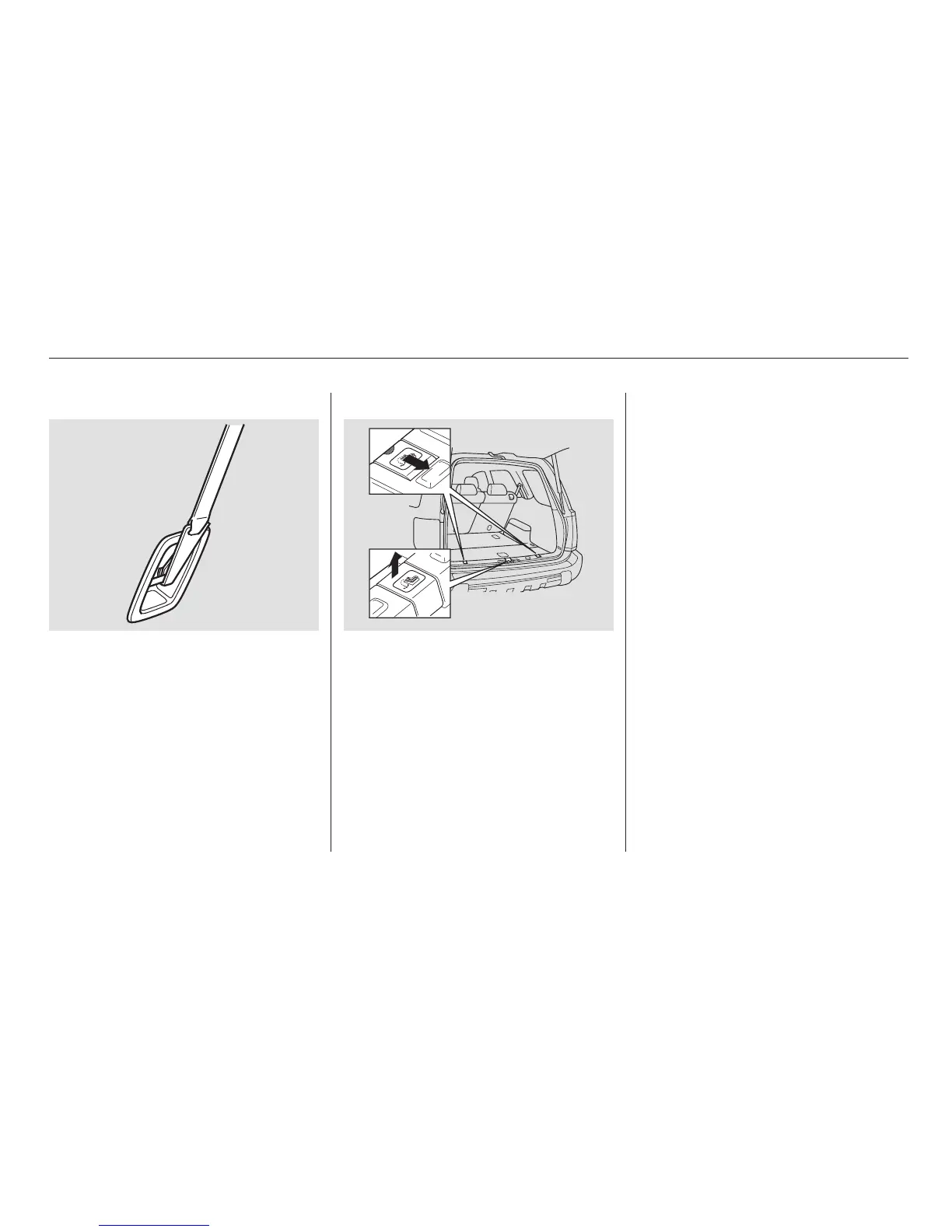

Each third row seat has a tether
anchorage point on the tailgate sill.
After properly securing the child
seat (see page ), lift the head
restraint, then route the tether
strap over the seat-back and
through the head restraint legs.
Slide the anchor cover open as
shown, then attach the tether
strap hook to the anchor, making
sure the strap is not twisted.
Tighten the strap according to the
seat maker’s instructions.
Follow steps 1 and 2 of the second
row seat installation.
2.
2.
1.
3.
49
Installing a Child Seat
Third Row Installation
