19
INSTALLATION
Correct and secure installation is
essential for safe boating and good
performance. Follow the installation
instructions provided in this manual.
POWER REQUIREMENTS
Before installation, check to be sure
that the outboard motor does not
exceed the recommended maximum
horsepower for the boat on which it is
to be installed. Refer to the boat’s
certification plate for recommended
maximum horsepower. If the
certification plate information is not
available, contact the boat dealer or
manufacturer.
For most applications, the outboard
motor should have
a horsepower
rating which provides 80% of the
maximum recommended horsepower
for the boat.

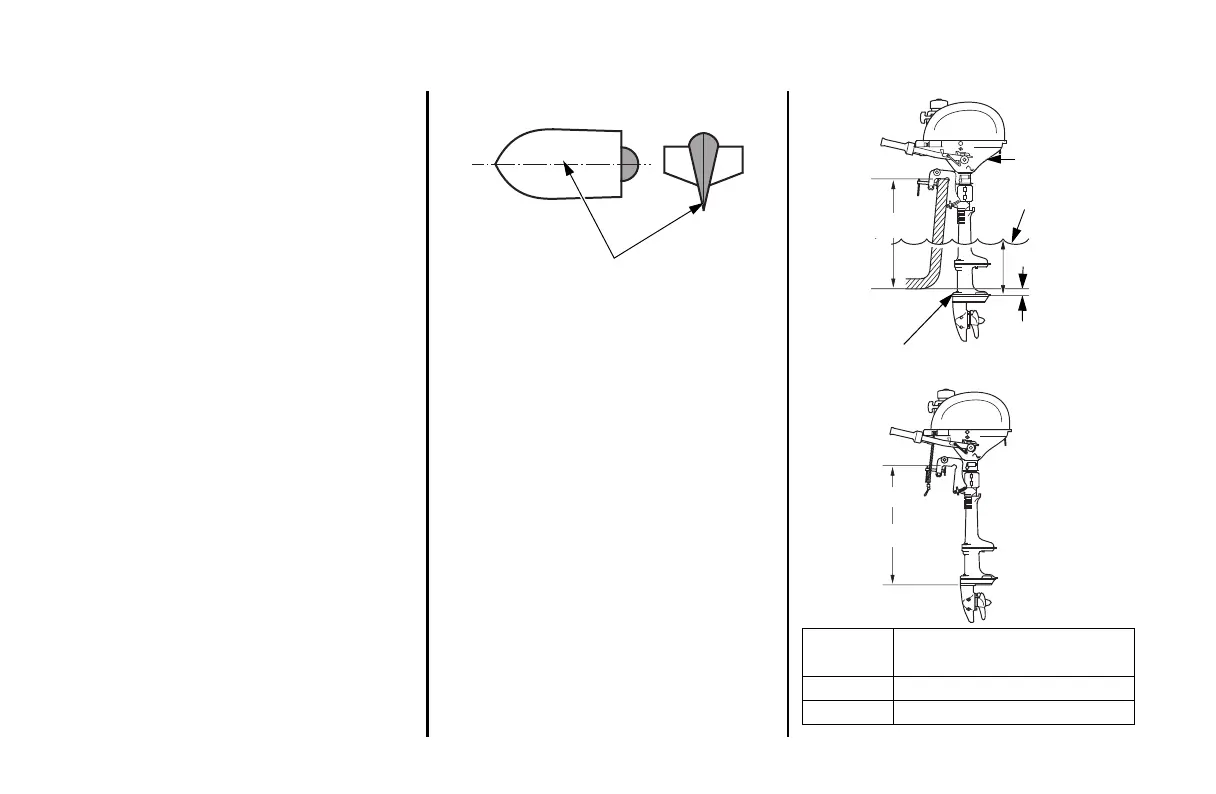

INSTALLATION POSITION
Install the outboard motor on the
center of the boat transom.
The antiventilation plate of the
o
utboard motor should be 0 – 2 in
(0 – 50 mm) below the bottom of the
boat. When the outboard motor is
mounted on
a sailboat, the
antiventilation plate should be 6 in
(150 mm) or more below the surface
of the water. For unusual situations,
see your Honda Marine dealer for
advice.
The correct dimensions differ
acc
ording to the type of boat and the
configuration of the bottom of the
boat. Follow the manufacturer’s
recommended installation height.
CENTER LINE
Type: Outboard Motor
Transom Height
S: 16.5 in (418 mm)
L: 22.5 in (571 mm)
BOAT
TRANSOM
HEIGHT
ENGINE
UNDER CASE
WATER SURFACE
6 in (150 mm)
0 – 2 in
(0 – 50 mm)
ANTIVENTILATION PLATE
OUTBOARD
MOTOR
TRANSOM
HEIGHT
