3. Scpara1e 1he brake ann from 1he brake cable.
NOTE:
a. No further disassembly is necessary when only the
brake pads are to he replaced.
b. Wrap the removed brake arm with a clca11 cloth or
the like lo prevent air-borne dust and dirt from enter•
inginside.
c. Do noc disassemble the brake arm.
4. Remove the thrust plate guide. Install a 6mm boll used
to secure th e caliper cover. in 1he threaded hole in the
back plate of the pad A; remove the pad A 1oge1her
with the 6mm
boll
5. Place a sland u11der 1he engine to raise the front wheel
off Che ground
6. Remove d 1e pad 8 while pressing on the l oc k pin area
with a suitab le screwdriver .
7. The pa<l II should be removed from the side from which
the pad A \Vas la ken out. The pad R, howc\fer, may be
removed froJll th e disc si<lc when it is worn down to the
red l ine.
IV . FRAME

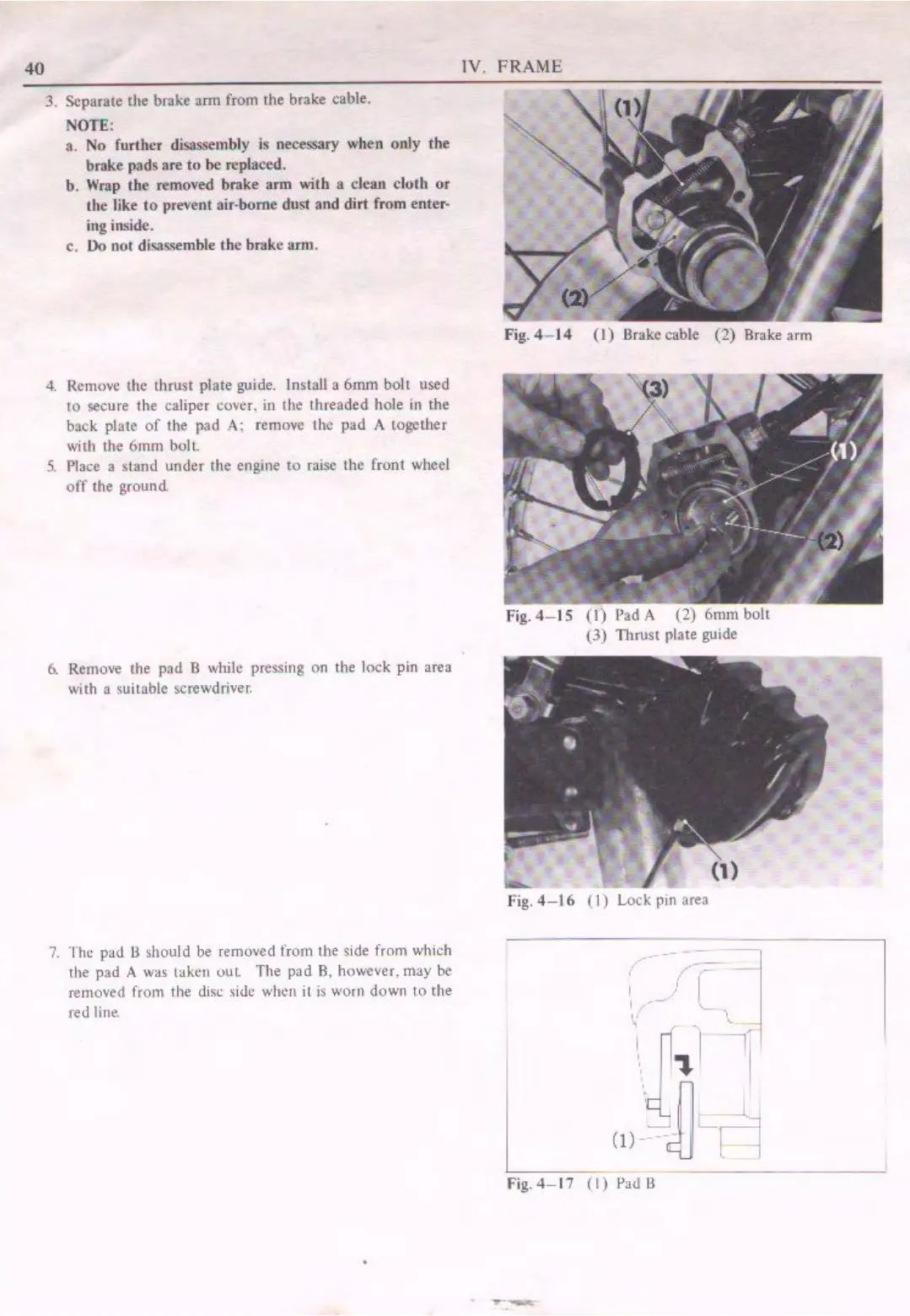

Fig. 4- 14 (I) llrake cable (2) Brake arm
Fig. 4-15 (I) Pad A (2) 6mm boll
(3) Thrusc plate guide
Fig. 4 -l 6 (I) Lock pin area
., ... ---- - .. =-- -
. / ~
; r I
I ,-- '
(l) i L~
Fig.4 - 17 (I) Pad II
