V.
ELECTRICAL
I.
Check the field coil for continuity.
If
there
is
no continuity, the field coil has
an
open
circuit The field coil
is
normal if
it
clicks
into
position
when a
12V
battery
is
connected with the switch turned
Oft
2 Check the operation
of
the magnetic switcl, Time may
sometimes render it useless due
to
badly pitted
or
bumt
switch contact~ The switch
is
tested electrically for
function
by
connecting a 12V battery to the field coil
wilh the switch turned on.
1f
there
is
no continuity, il
is
a signal that the switch
contacts
are
not
in
contact
with
the
switch plate.

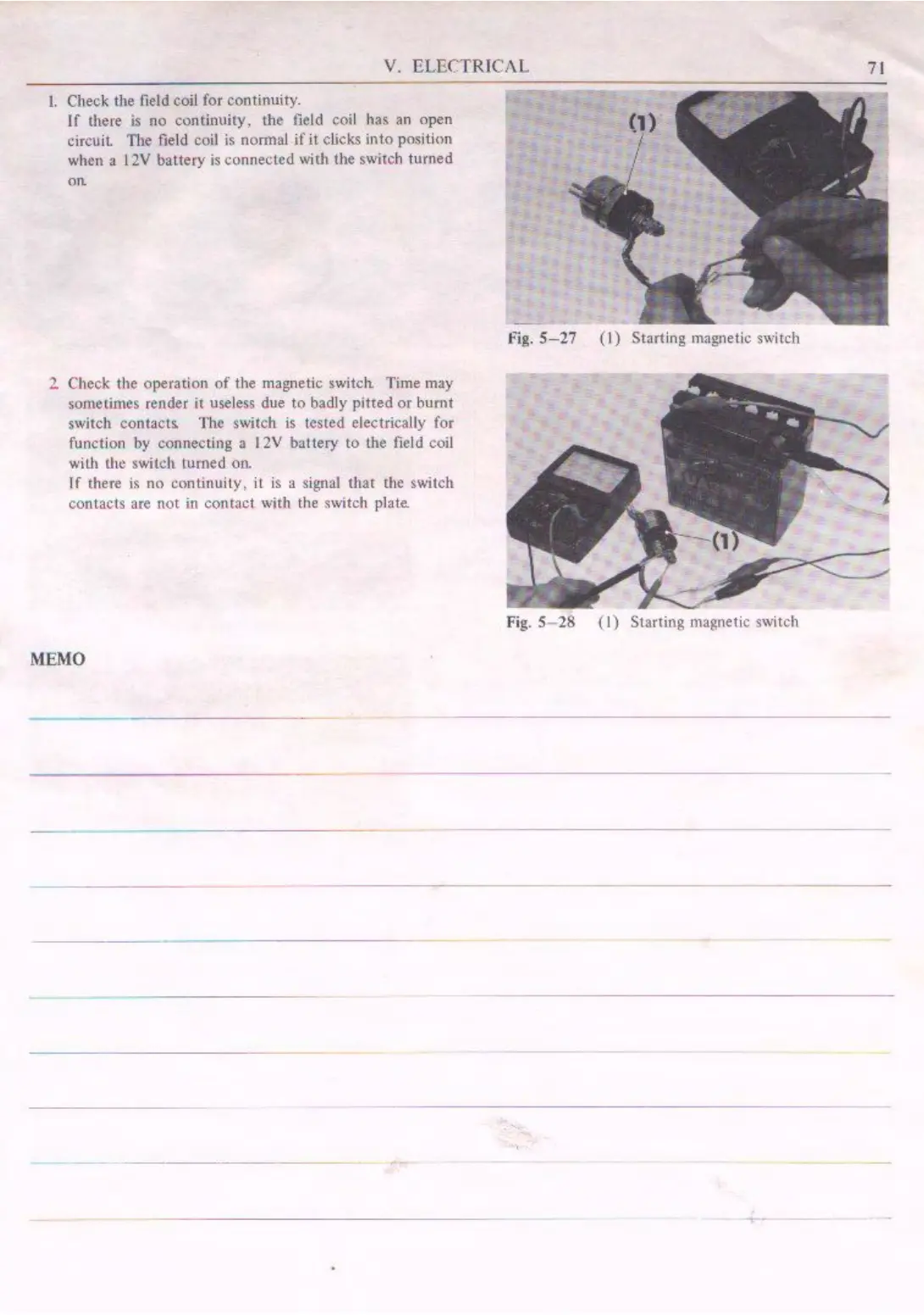

MEMO
(
1)
/
fig.
5-27
(
l)
Starting magnetic switch
Fig. 5-
28
( I) Starting magnetic switch
71
