J 16. SUPPLEMENT TO CB550Kl t
~lll'!jPlll'IJl'll ' 'l lllll'll" ll'l l l<ll" llllll"ll"ll' ll"il "ll"lllill",'''I 'II•> "II" l''J• 'I' "lf••ll"I "II' II'
1
11"11'~
1. FUEL COCK
The fuel cock is new for the revised model.
Concurrent with this change, the indication
marks and their positions on fuel cock was
changed.
Inspection and cleaning
1. Place the fuel lever in the "OFF" posi-
tion; disconnect the fue l tubes. Take
out the fuel tank.
2. Drain the fuel tank thorough ly.
3. Loosen the fuel cock fixing nut and then
remove the fue l cock and fuel filter from
the fuel tank.
4. Check the gasket to see if it is not
damaged. Replace with a new one, if
found to be damaged too badly beyond use.
5. Wash the fuel filter in solvent and dry
with compressed air. Any slightest
damage cannot be tolerated here. Also
replace the filter with a new one if found
to be clogged.
6. Install the fuel filter to the fuel cock with
the fixing nut. Do not forget to install
the gasket into the groove of the fixing
nut.
7. Install the fuel cock to the fuel tank with
the fixing nut.
8. Install the fue l tank in place on the
frame; connect tubes and secure with
the clips.
9. Fill the tank with fuel. With the fuel
cock lever in the "ON" position, check
for any leakage past the tube joints or
connections.

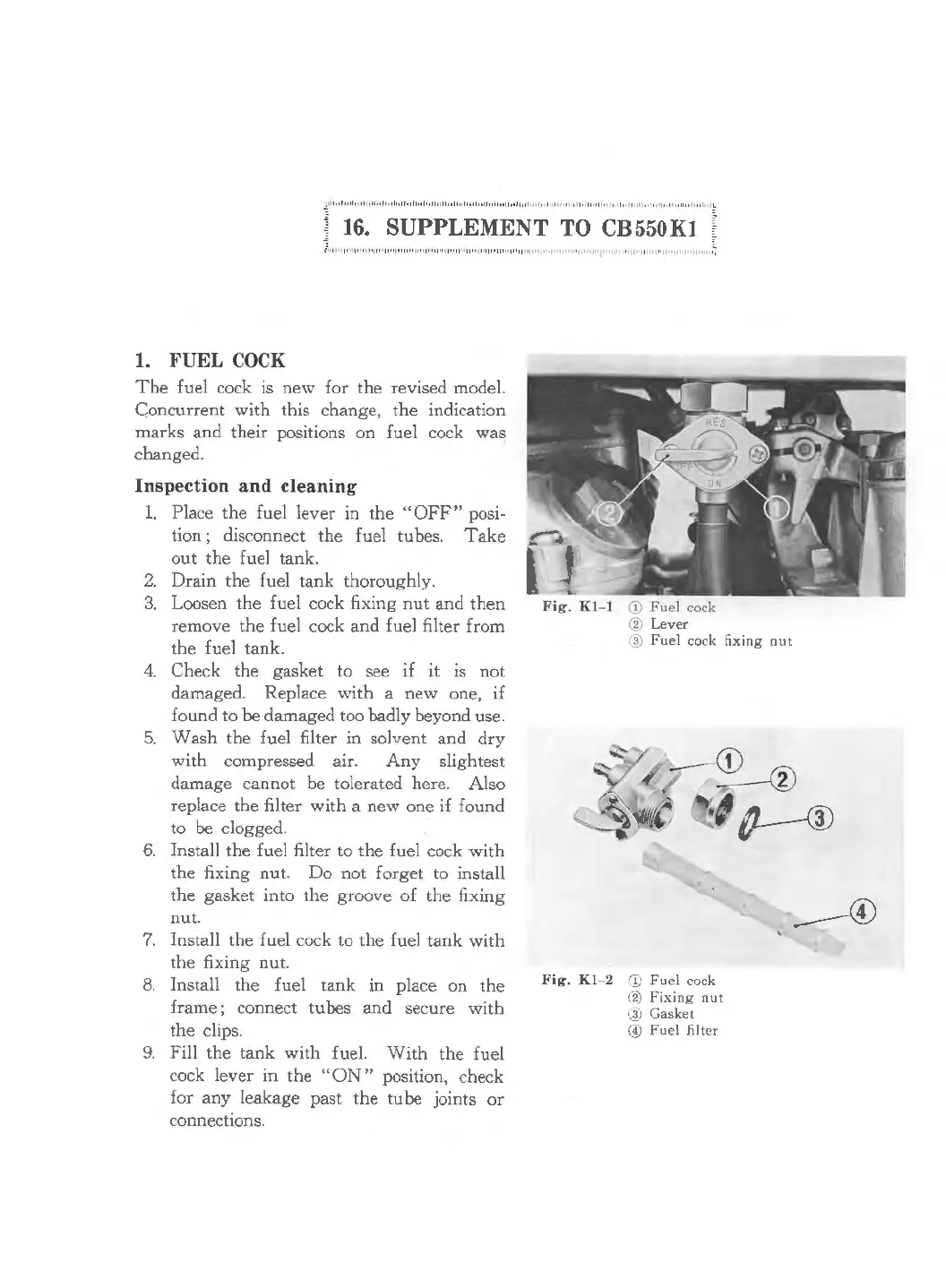

Fig. Kl -1 (D Fuel cock
® Lever
~ Fue l cock fixing nut
Fi g. Kl - 2
1 Fuel cock
~ Fixing nut
·-!> Gasket
© Fuel filter
