4. ENGINE
A. Disassembly
1. Remove the cam chain tensioner and the
chain guide in accordance with section
3. A.
B.
Inspection
1. Make sure that the gear of the cam chain
tensioner adjuster is properly meshed
with the rack, and inspect for smooth
operation.
To adjust the cam chain, see page 13.
C. Reassembly
1. Perform reassembly in accordance with
section 3. C.
9. CRANKSHAFT AND CONNECTING
ROD
A. Disassembly
1. Dismount the engine in accordance with
section 2.
A.
2. Disassemble the cylinder head, cylinder,
and piston in accordance with section 3.
A.
3. Remove the generator cover and remove
the rotor using a generator rotor puller.
(Tool No. 07933-2160000)
4. Remove the point cover, and the special
washer by removing the 6 mm bolt.
Next, unscrew the three 5 mm screws
and remove the contact breaker assembly
and the spark advancer.
5. Remove the clutch and the gear shift
arm in accordance with section 6. A.
6. Remove the starting motor cover, and
dismount the starting motor.

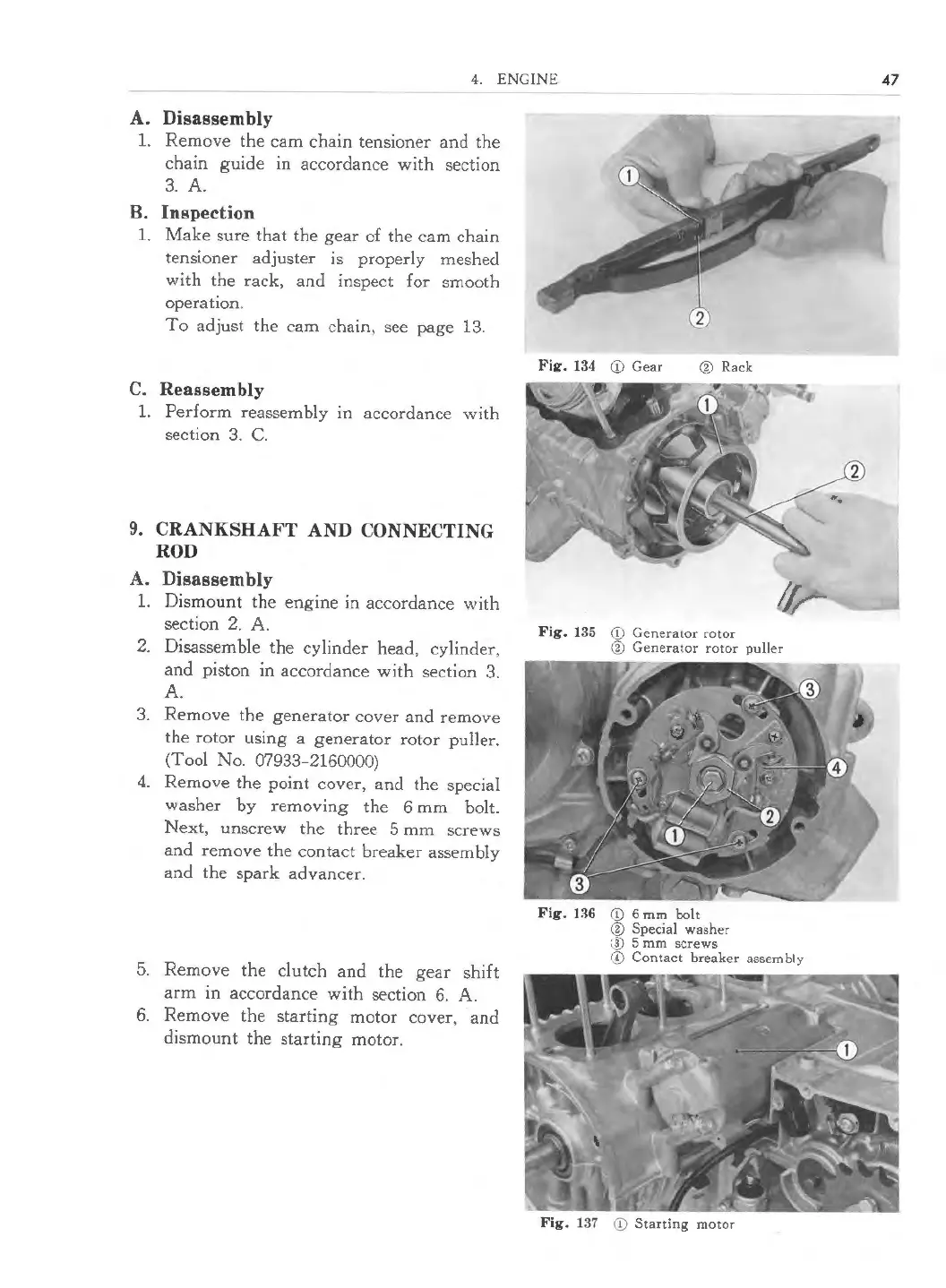

Fig. 134 CD Gear
@ Rack
Fig . 135 CD Generator rotor
@ Generator rotor puller
Fig. 136 CD 6 mm bolt
@ Special washer
® 5 mm screws
© Con tact breaker assembly
Fig . 137 CD Starting motor
