4. ENGINE
9. Install the gear shift arm and make sure that it operates smoothly m both direction.
10. Install the clutch in accordance with section 6. C.
8. CAM CHAIN TENSIONER
The cam chain tensioner is constructed of spring steel on which a layer of heat resistant
rubber is vulcanized and a sheet of teflon cemented. It applies pressure against the
cam chain and absorbs the shocks produced by the chain. The cam chain guide on the
tension side of the cam chain also controls chain vibration.
An adju stment screw is located at the rear of the cylinder block.

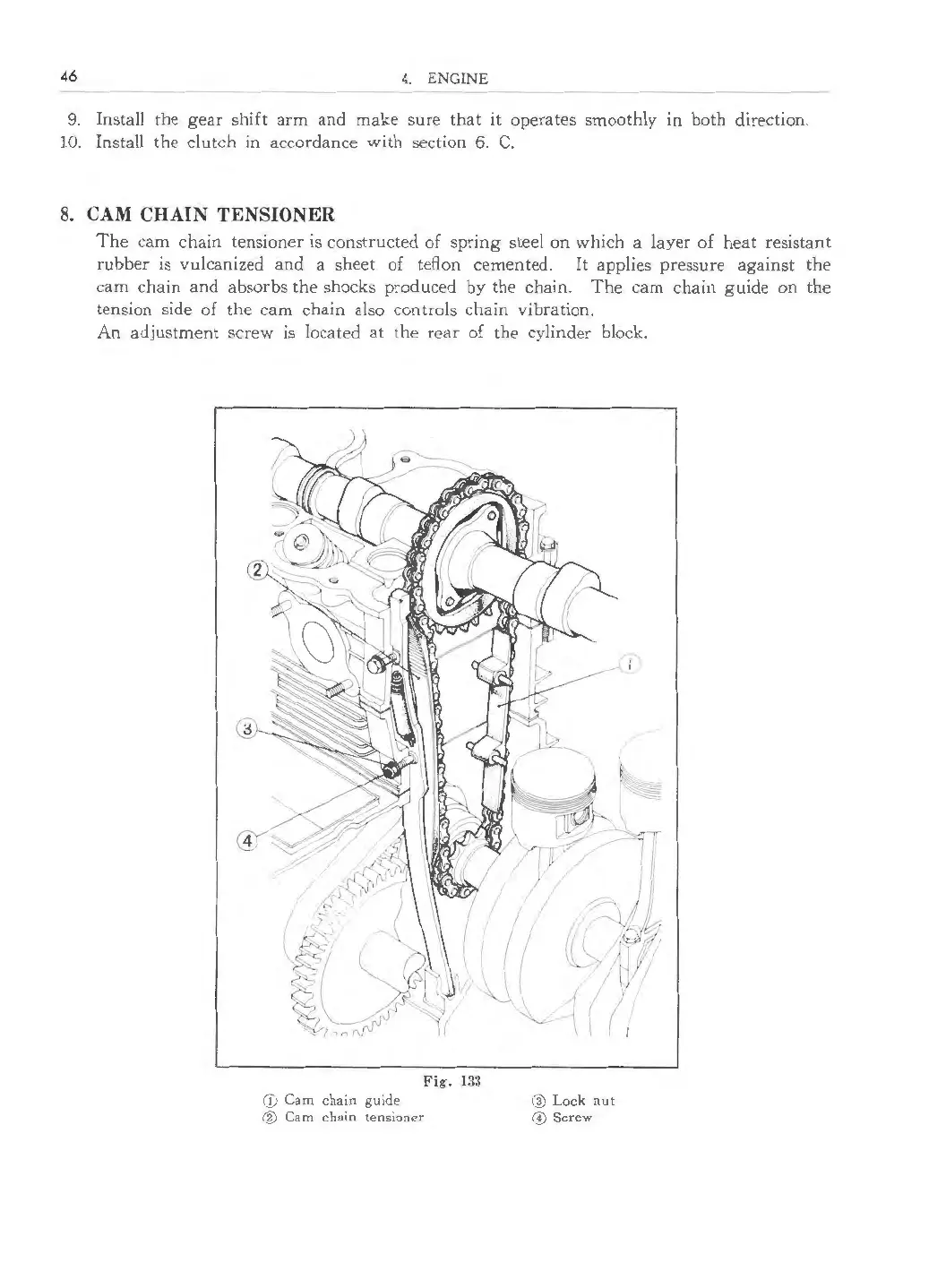

Fig. 133
r i) Cam chain guide
2 Cam chain tensi oner
@ Lock nut
(4 Screw
