4. ENGINE 35
C. Reassembly
1. Wash all of the component parts m kerosene and reassemble the parts in the reverse
order of disassembly.
Note :
Fig . 9i
(D Exhaust valve
© Inlet valve
@ lOxl.6 0 ring
© Exhaust valve guide
® Inlet valve guide
--®
®
®
-@
~- @

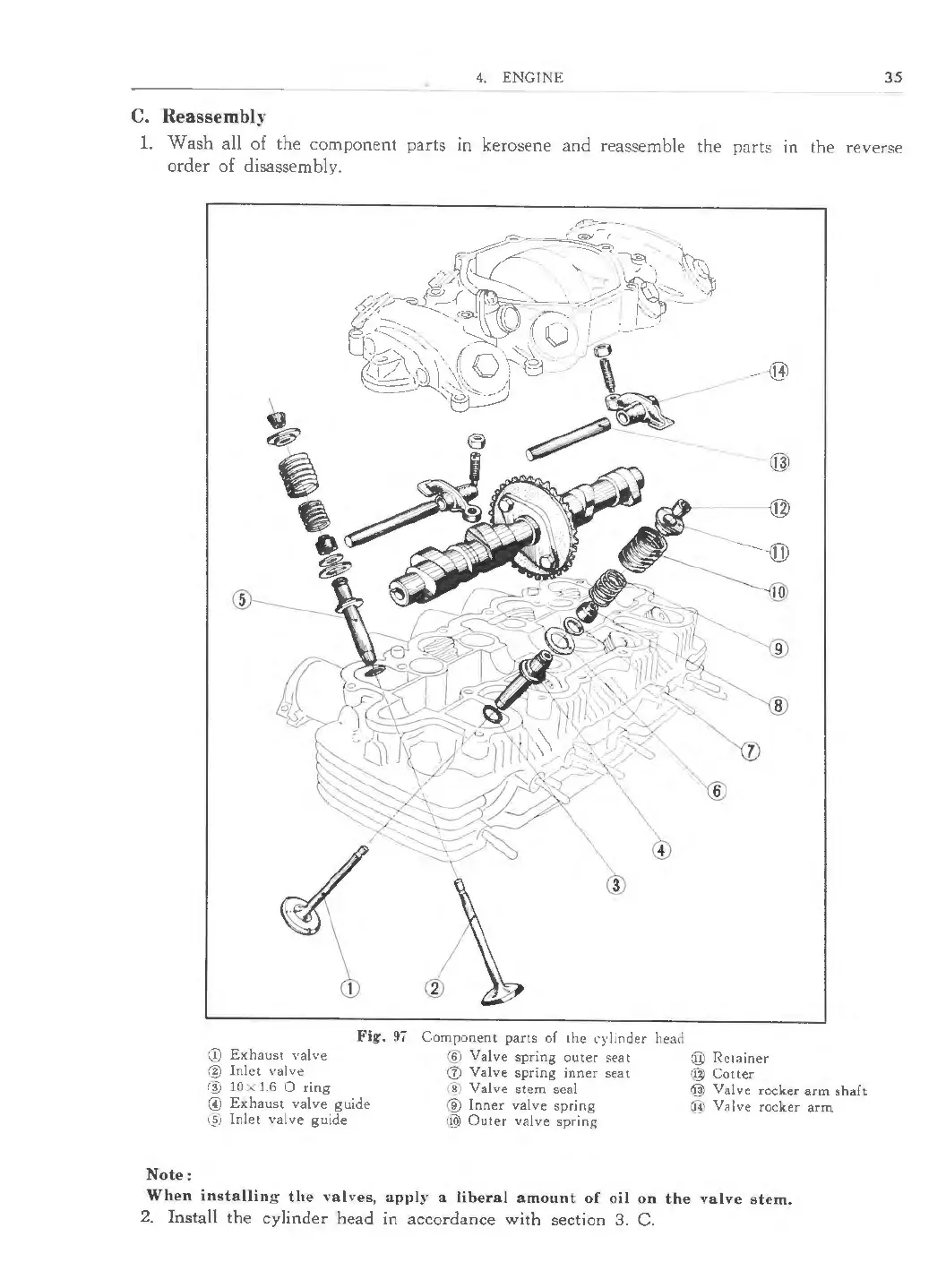

Component parts of the <·ylinder head
® Valve spring outer seat @ Retainer
® Valve spring inner seat @ Cotter
® Valve stem seal @ Valve rocker arm shaft
® Inner valve spring @ Valve rocker arm
@ Outer valve spring
When installin g t he val ves, appl y a lib eral amount of oil on th e val ve stem .
2. Install the cylinder head in accordance with section 3. C.
