4. ENGINE
A. Disassembly
j Oil Pump j
1. Drain the engine oil in accordance with
section 2. A.
2. Remove the starting motor cover and
the left crankcase cover.
3. Unscrew the
4 mm bolt and remove the
pressure switch wiring. Next remove
three 6 mm screws, and the oil pump.
4. Remove the cap and disassemble the re-
lief valve and spring.
j Oil Screen Filter j
1. Drain the engine oil in accordance with
section 2. A.
2. Unscrew ten 6 mm bolts from the oil pan.
Remove the oil pan, and the oil screen
filter can be removed.

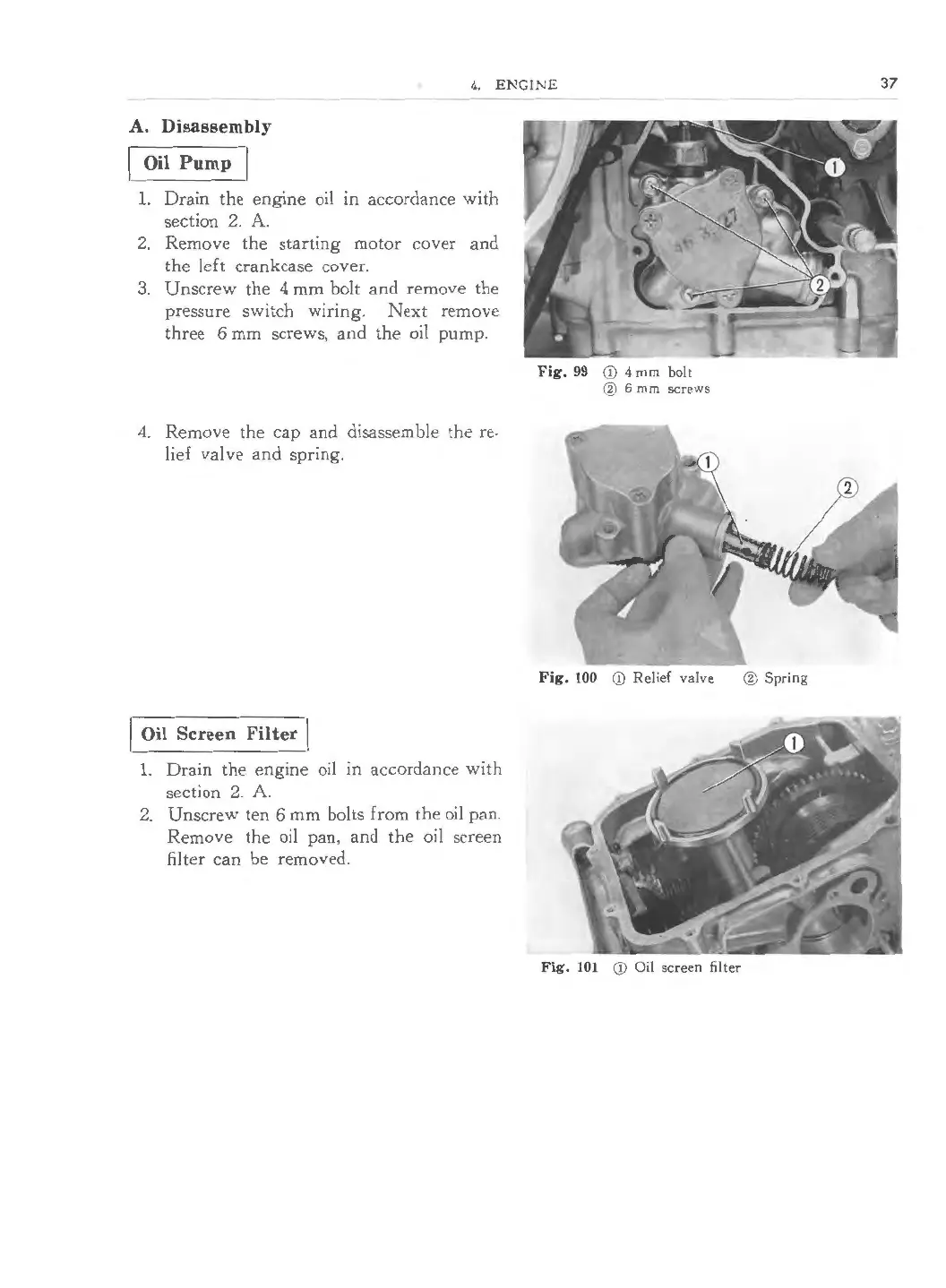

Fig. 99 <D 4 mm bolt
1) 6 mm screws
Fig. JOO <D Relief valve
Fig. 101 <D Oil screen filter
37
® Spring
To Next Page
