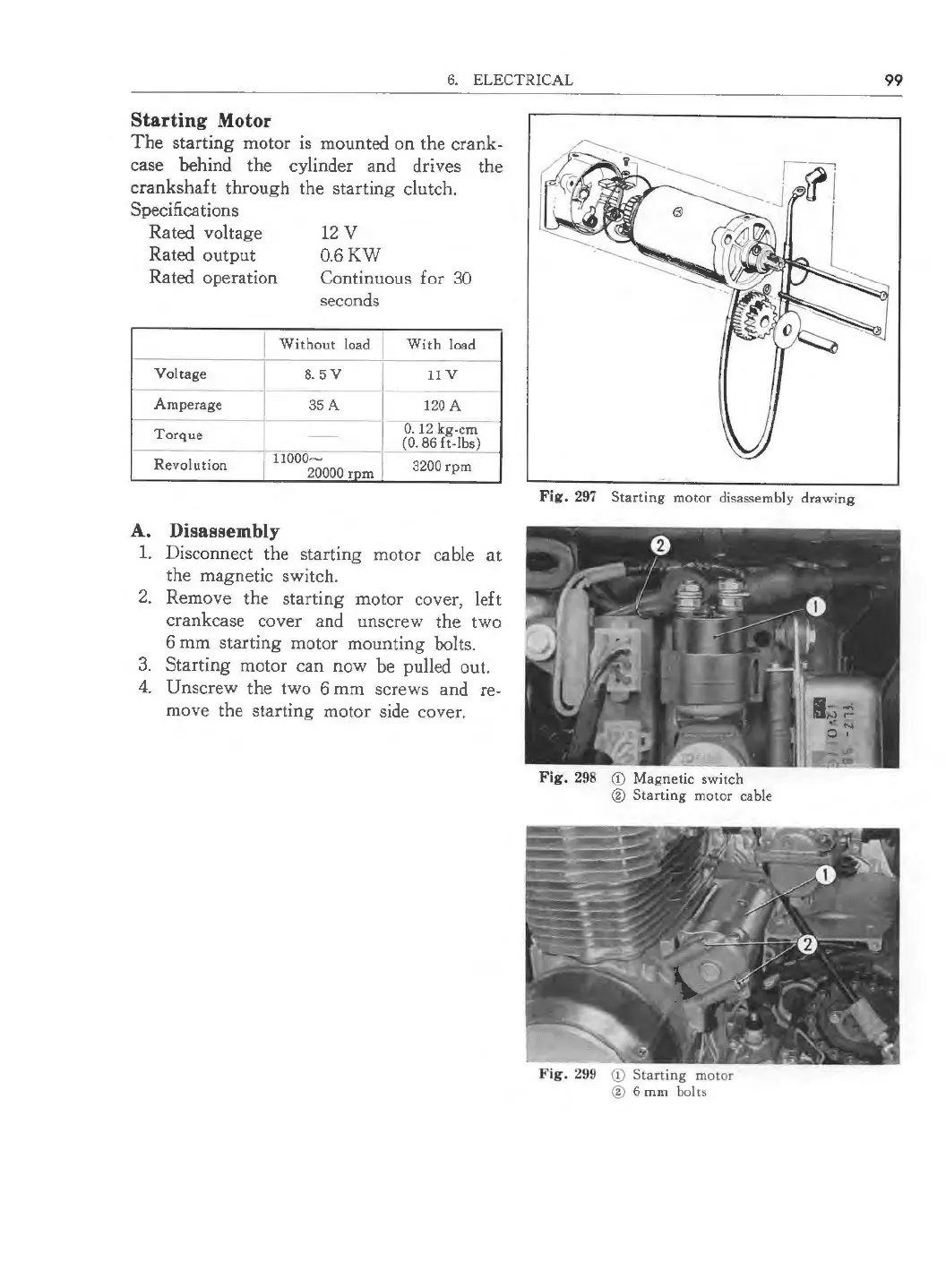

6. ELECTR ICAL
Starting Motor
T he startin g motor is mounted on the cran k-
case behind the cylinder and drives the
crankshaft through the starting clutch.
Specifications
Rated voltage
Rated output
Rated operation
12V
0.6KW
Continuous for 30
seconds
I
Wi thout load
I
With load
Voltage
8.5V
11 V
Ampe rage
35 A 120 A
Torque
-
0. 12 kg-cm
--
---
11000-
--
(0. 86 ft -lb~
Revo lution
20000 rpm
3200 rpm
A. Disassembly
1. Disconnect the starting motor cable at
the magnetic switch.
2. Remove the starting motor cover, le£ t
crankcase cover and unscrew the two
6 mm starting motor mounting bolts.
3. Start ing motor can now be pulled out.
4. Unscrew the two 6 mm screws and re-
move the starting motor side cover.
Fig. 297 Starting motor disassembly drawing
Fig. 298 CD Magnetic switch
® Starting motor cable
Fig. 299 CD Sta rting motor
® 6 mm bolts
99
