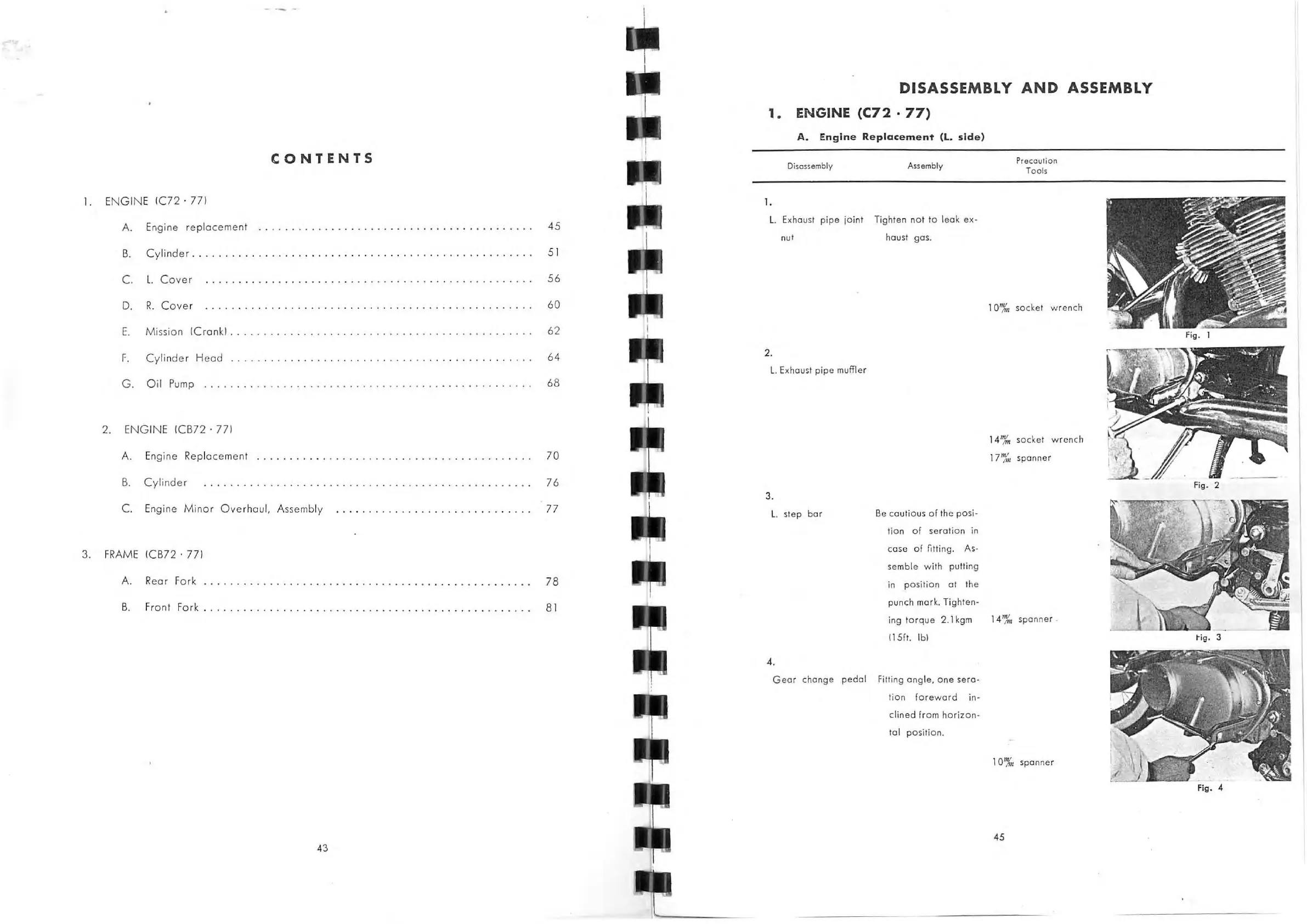

CONTENTS
1. E NGINE 1C72 · 771
A. Engine replacement . . . .•. . . . • . . .. . • . . . . . . ....... ... .. . . . . .... 45
B. Cylinde r . . ... . . .. . . ...• ... . •. . .. •• • .... .•.. . . • .. . . . • . ..•. . . . 51
C. L. Cover
56
D. R. Cove r
60
E.
Mi s si on (Crankl . ......•.. . • .... • •..... . .... . • ... . • .. . .. . . . •.. 62
F.
Cylinder Head
64
G. Oil Pump .....
68
2. ENGINE (CB72' 771
A. Engine Replacement . ... • •.. . . .• ... . ... ... • .... . . . . .• • .... • . . . 70
B. Cylinder
76
C. Engine Mi no r Ove r hau l, Assembly
77
3. FRAME (CB72' 771
A. Rear Fork .. . . . . . • . . . . • • . . . . •. . . ..•• . . . . .• . . . . .. . . . . • . . . . • .. 78
B. Fr ont Fo rk . .. . . . .. •. ... •.. ..• . .. ..• . . ... . . . . . . .• .. . . ...... " 81
43
DISASSEMBLY AND ASSEMBLY
1. ENGINE (C72 . 77)
A. Engine Replacement (L. side)
Disassembly Assembly
I.
L. Exhaust pipe jOint Tighten not 10 l eak ex-
nut haus! gas.
2.
l. Exhaust pipe muffler
3.
l. step bar
Be cautious of the posi-
tion of serotion in
cese of IItting. As-
semble with pulling
in position at the
punch mark . Ti ghten-
Precaution
Tools
1 D' Xn socket w rench
14
n
X" socket wrench
1 7"}{JI sponner
ing t orque 2.1 kgm 14'Xn spanner .
115ft. Ibl
4.
Gear change pedal Filling angle. one sera-
lion foreword in -
clined fr om horizon-
tal position.
1 0'%1 spanner
45
