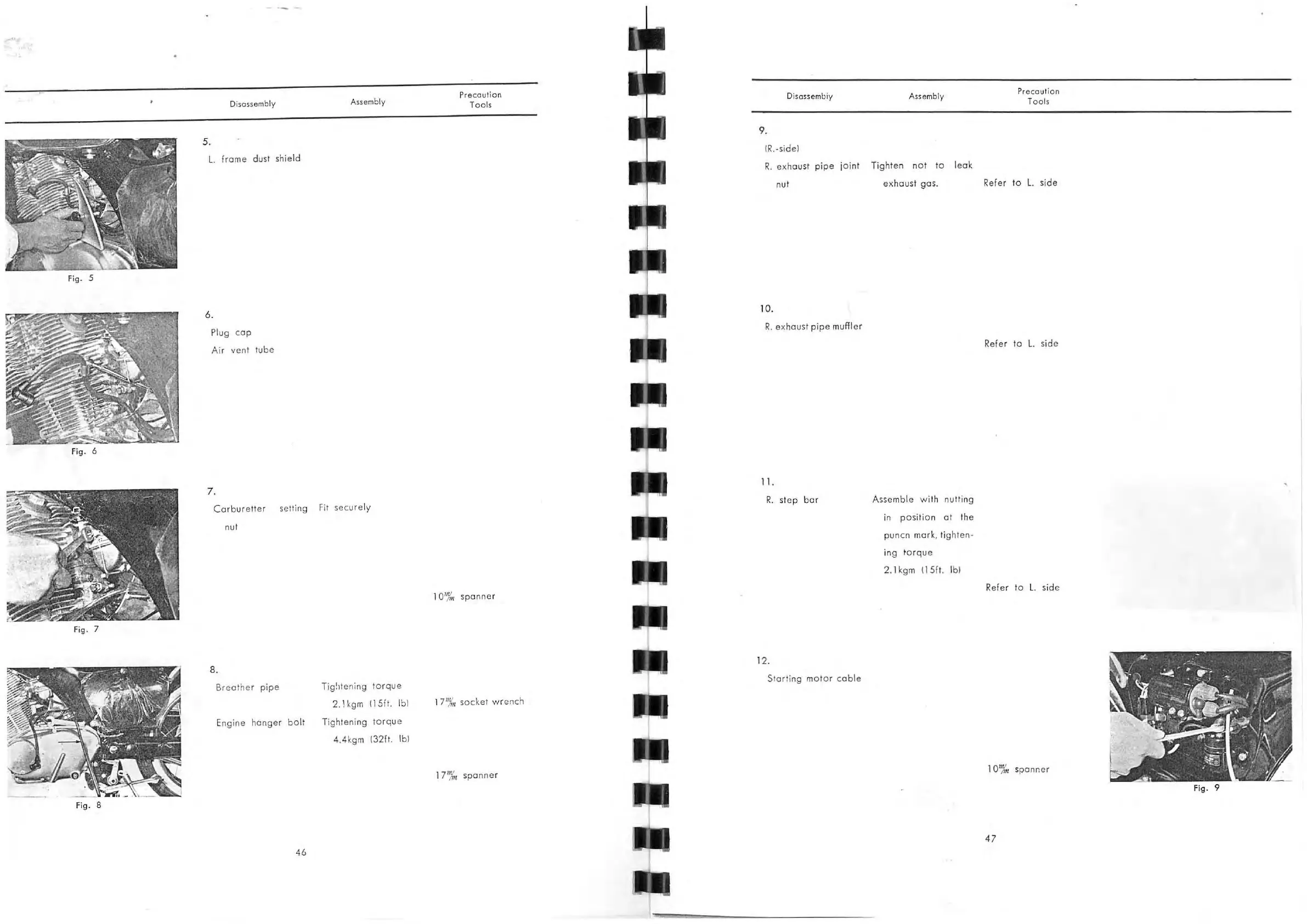

Honda CB77 - Page 26

Disossembly
Assembly
5.
l. frame dust sh ie ld
6.
Plug cop
Ai r vent tube
Fig. 6
7.
Carburelter setting Fit securely
nut
Fig. 7
8.
Breather pipe
Tig~llening torque
2.1 kgm 115ft. Ibl
Engine hanger bolt
Tightening torque
4.4kgm 132ft. Ibl
fi g. 8
46
Precaution
Tools
17
1
';:11 socket wrench
17 "X" spanner
Disassembiy Assembly
9.
IR.· sidel
R. exhaust pipe jOint Tighten not 10 leak
nut
10.
R. exhaust pipe muffler
1 1.
R. step bar
12.
Starting motor c oble
exhaust gas.
Assemble
with nuning
in position at Ihe
puncn mark, lighten-
ing torque
2.1 kgm 115ft. Ibl
Precaution
Tools
Refer to l. side
Re fer to l. side
Refer to l. side
10% spanr.er
47
Fig. 9
