HRX217HYA • HRX217HZA VARIABLE MOWING SYSTEM/ MOWER DECK/WHEELS
3. Remove the shutter and rear base plate.
INSTALLATION
1. Install the shutter, aligning the slots in the shutter arm
with the roll pin in the shutter lever arm. Do not push the
shutter ring into place at this time.
2. Install the rear base plate and push the shutter ring
into place. Be sure the rear base plate bushing aligns
with the shuttle lever arm. Install the rear shutter holder
and the two rear 5/16-24 x 2-3/8 inch engine mounting
bolts. Tighten the engine mounting bolts to the specified
torque.
TORQUE: 19.6 ~ 23.6 N•m (14.5 ~ 17.4 ft-lb)

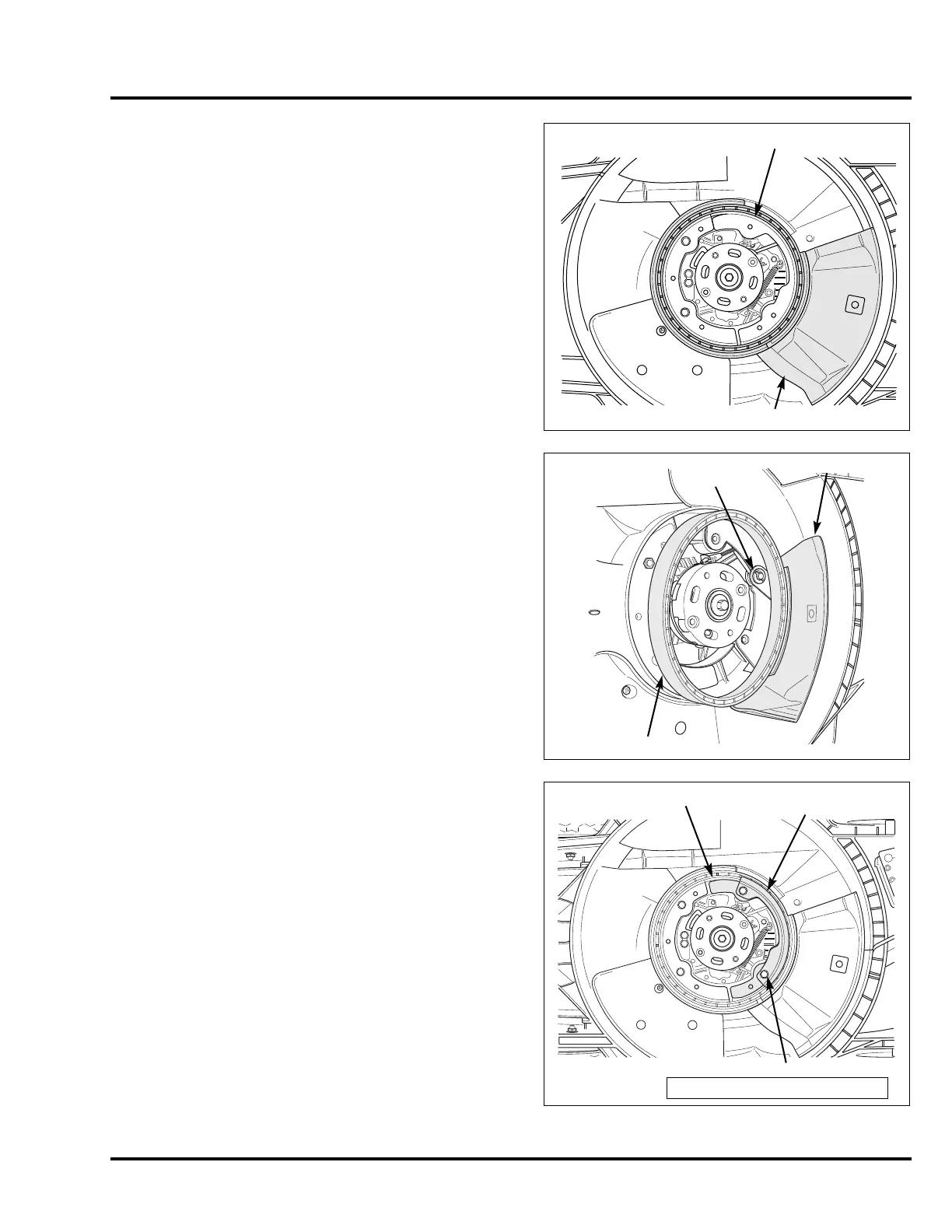

SHUTTER
REAR BASE PLATE
SHUTTER
ARM
SHUTTER RING
SHUTTER
REAR SHUTTLE
HOLDER
REAR BASE PLATE
BOLT, 5/16-24 x 2-3/8 in (2)
19.6 ~ 23.6 N•m (14.5 ~ 17.4 ft-lb)
