Honda HRX217K6HYA - Reel Unwound

7-7
HRX217HYA • HRX217HZA RECOIL STARTER

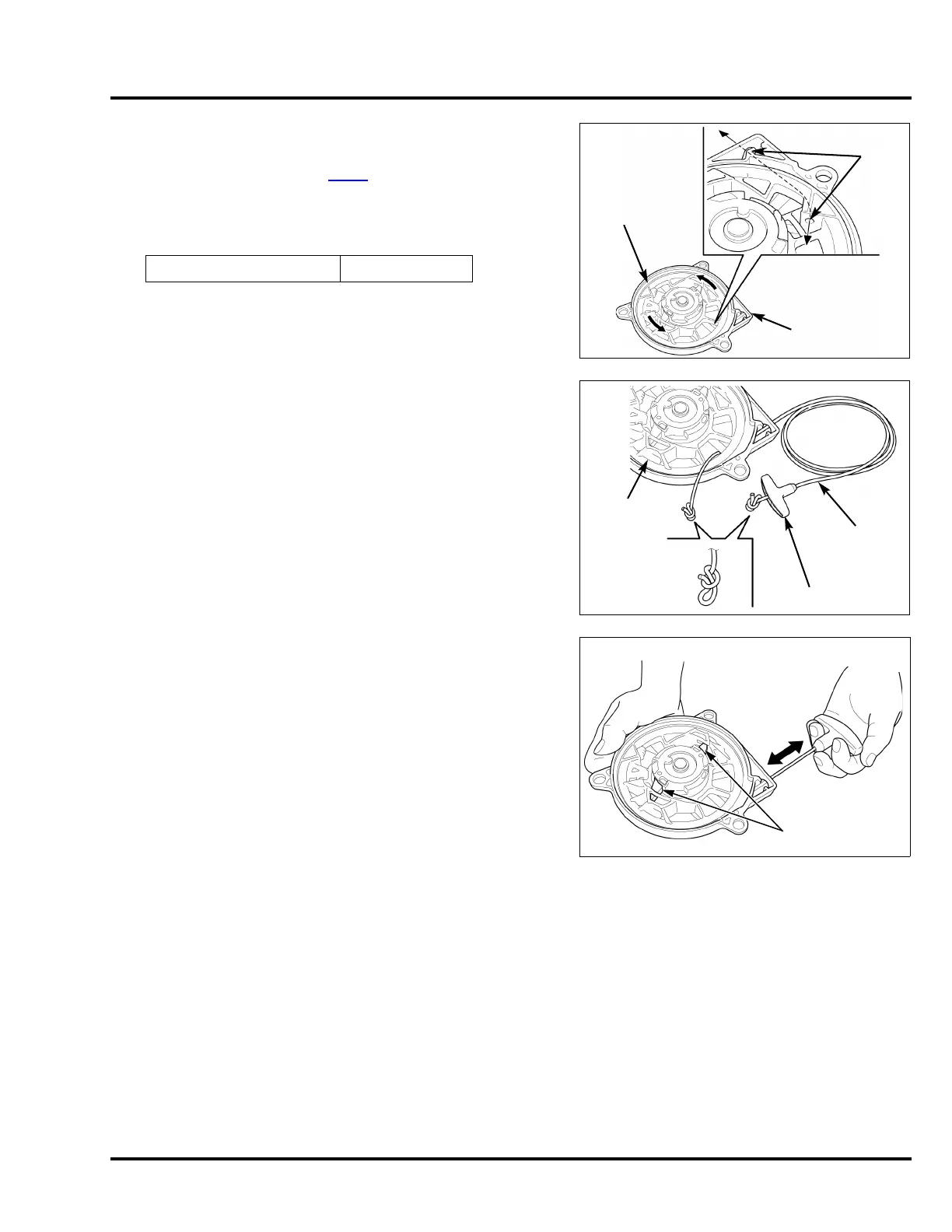

6. REEL UNWOUND
1. Remove the recoil starter (P. 7 -3 ).
2. Turn the starter reel in the direction of the arrow six turns.
Align the rope hole in the starter case with the rope hole in the
starter reel.
3. Pass the starter rope through the starter grip and make a slip
knot at the end of the rope.
4. Pass the other end of the starter rope through the rope hole in
the starter case, then through the rope hole in the starter reel,
and make a slip knot at the end of the rope.
5. Remove the band holding the starter reel and carefully allow
the starter reel to rewind.
6. Check the operation of the ratchets by pulling the starter rope
several times.
Starter reel turns 6
STARTER REEL
STARTER CASE
ALIGN
HOLES
STARTER
REEL
STARTER GRIP
STARTER
ROPE
RATCHETS
