RECOIL STARTER HRX217HYA • HRX217HZA

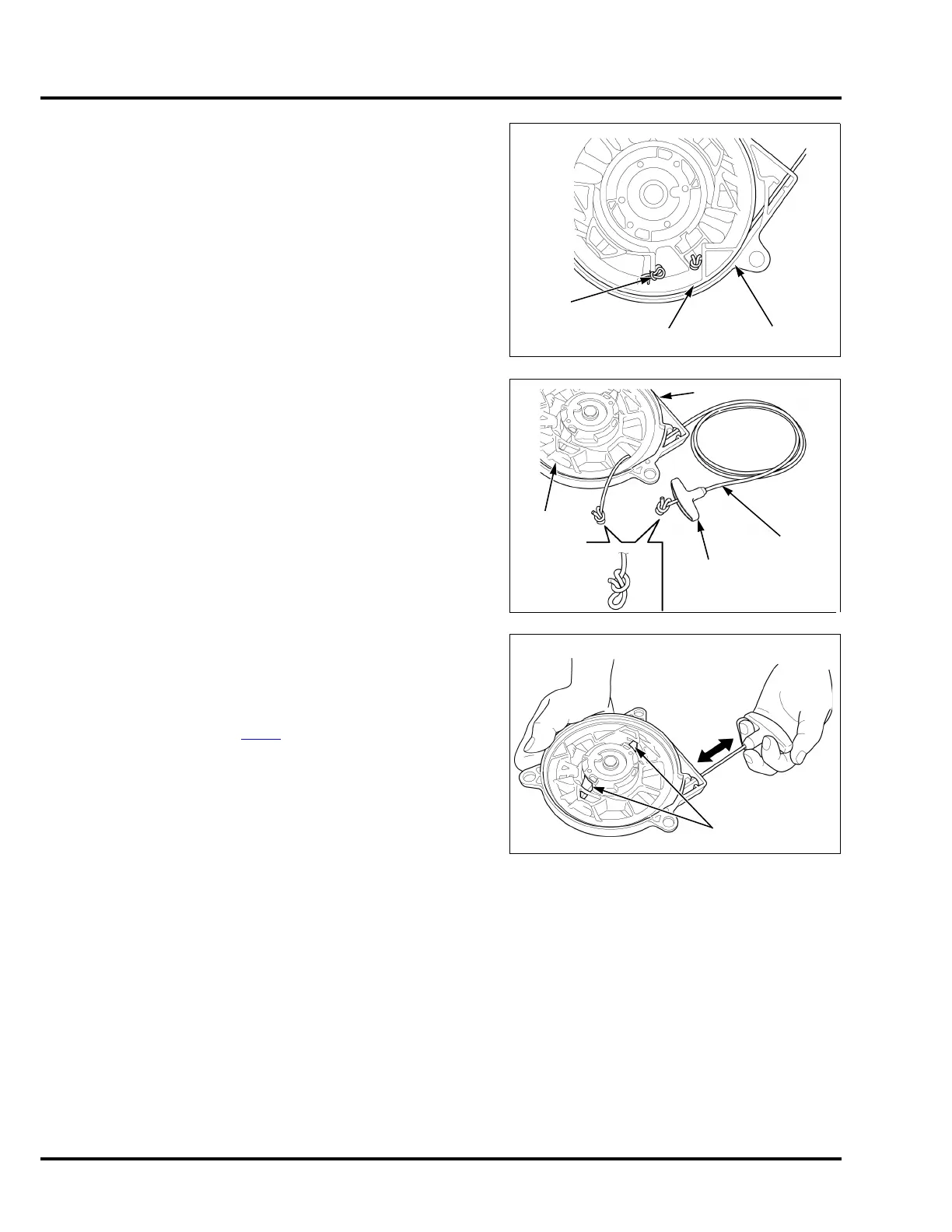

3. To prevent the starter reel from rewinding, hold the starter reel
and starter case with a band or equivalent material as shown.
4. Untie the knots of the starter rope at the starter grip side and
the starter reel side, and remove the starter rope.
5. Pass the starter rope through the starter grip and make a slip
knot at the end of the rope.
6. Pass the other end of the starter rope through the rope hole in
the starter case and through the rope hole in the starter reel,
and make a slip knot at the end of the rope.
7. Remove the band holding the starter reel and carefully allow
the starter reel to rewind.
8. Check the operation of the ratchets by pulling the starter rope
several times.
9. Install the recoil starter (P. 7 - 3
).
BAND
STARTER REEL STARTER CASE
STARTER
ROPE
STARTER
REEL
STARTER CASE
STARTER
GRIP
RATCHETS
