4-5
HRX217HYA • HRX217HZA ROTO-STOP®/DRIVE BELT

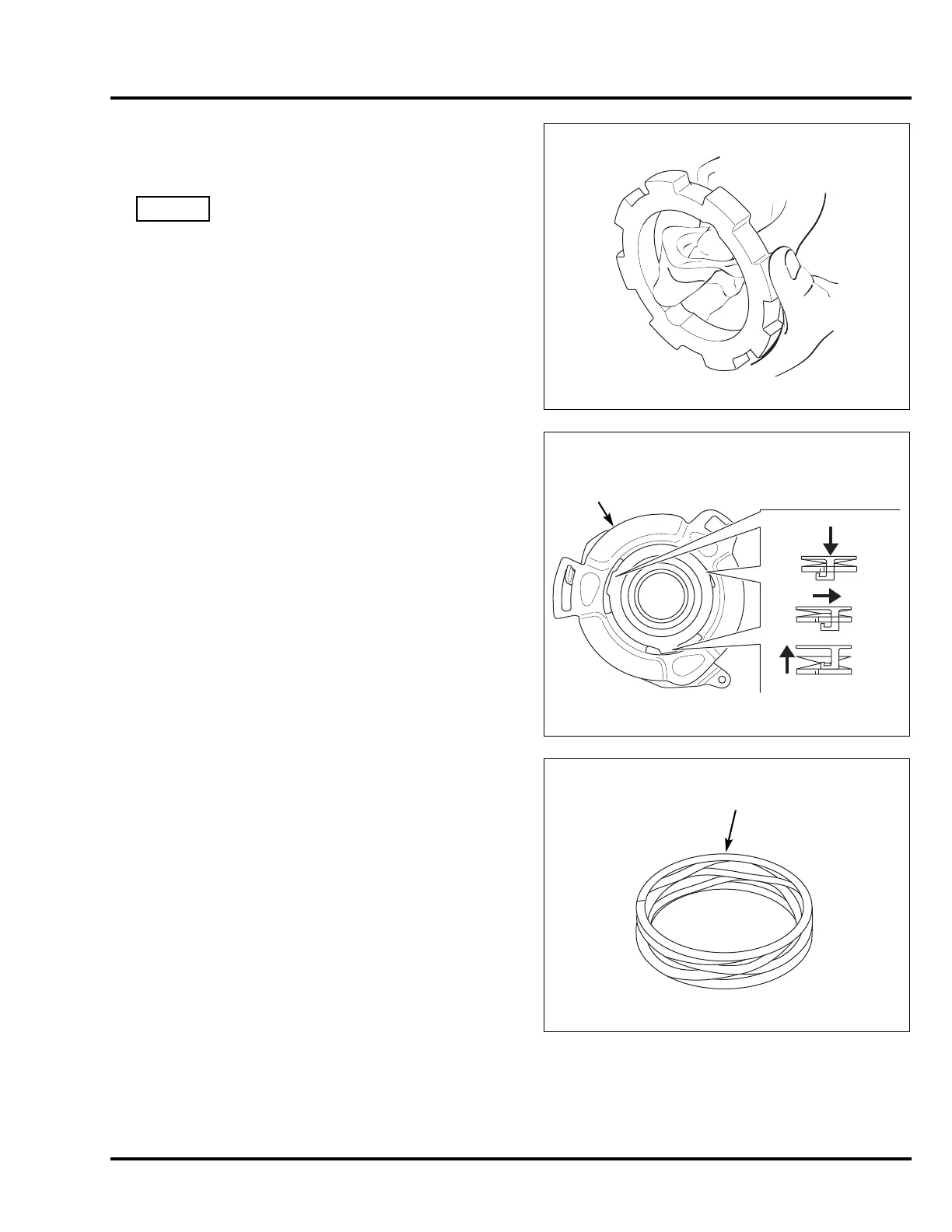

2. Clean the driven disc clutch and brake surface with a
clean, dry shop towel. Replace the driven disc if it has
been contaminated with oil.
N OTICE
Do not put the driven disc into the parts cleaner. If the
driven disc is washed with parts cleaner, the driven disc
will require replacement.
3. Disassemble the brake assembly:
a. Push the spring hook plate down.
b. Rotate the spring hook plate clockwise.
c. Release the three hooks.
d. Separate the brake plate from the ball plate, and
remove the three balls.
4. Inspect the ball plate spring for damage or
deformation, such as bending or cracks.
.
BRAKE
ASSEMBLY
SPRING HOOK PLATE
a.
b.
c.
BALL PLATE SPRING
