uuFusesuFuse Locations
Handling the Unexpected

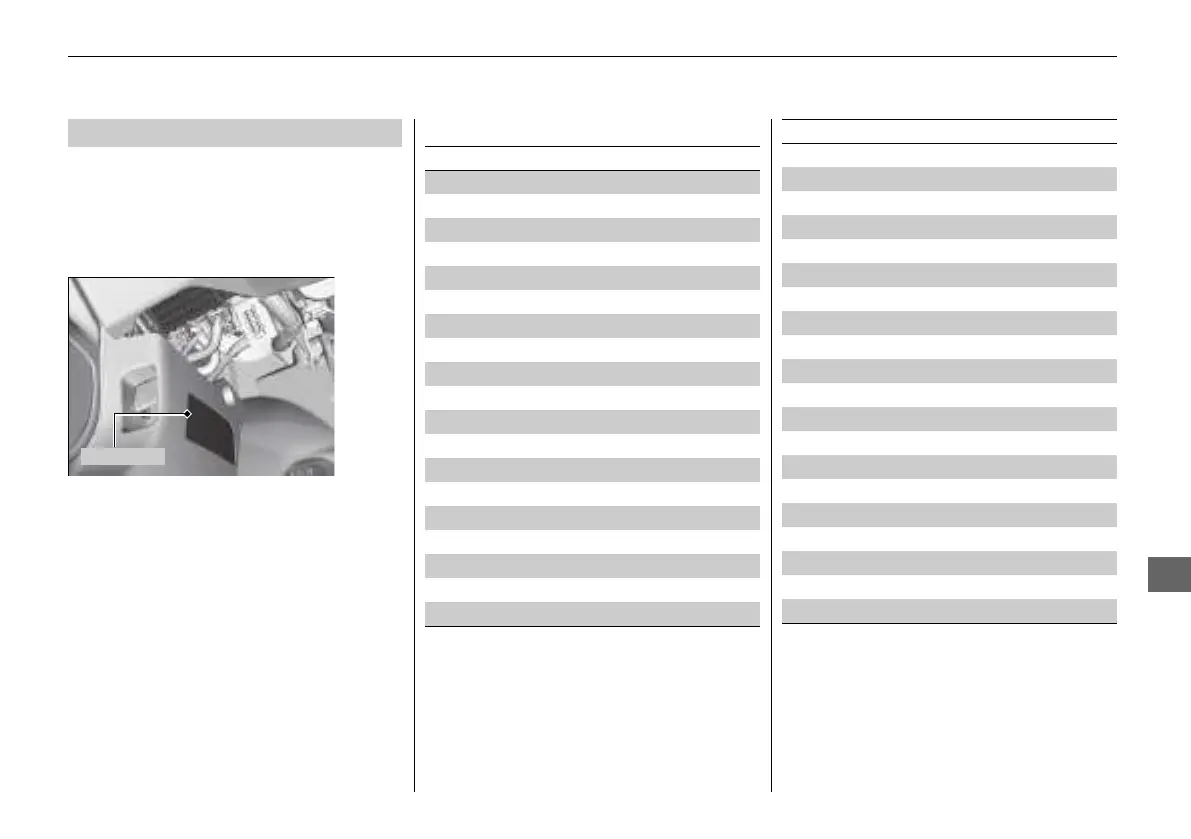

Located under the dashboard.
Fuse locations are shown on the label on
the side panel.
Locate the fuse in question by the fuse
number and label number.
Interior Fuse Box Type B
Fuse Label
Circuit protected and fuse rating
Circuit Protected Amps
1 ACC 10 A
2
3 BATT ECU 10 A
4 SHIFTER 5 A
5 OPTION 10 A
6 P-ACT 5 A
7 METER 10 A
8 FUEL PUMP 15 A
9 AIRCON 10 A
10
11 IG1 MON 5 A
12 R SIDE DOOR LOCK 10 A
13 L SIDE DOOR UNLOCK 10 A
14 RR L P/W 20 A
15 AS P/W 20 A
16 DOOR LOCK 20 A
17 VBSOL 7.5 A
18
19 SUNROOF
*
(20 A)
20 ESB 5 A
21 ACG 10 A
22 DRL 7.5 A
23
24
25 DR DOOR LOCK (10 A)
26 R SIDE DOOR UNLOCK 10 A
27 RR R P/W 20 A
28 DR P/W 20 A
29 FR ACC SOCKET 20 A
30 OPTION 10 A
31 DR P/SEAT REC
*
20 A
32 FR SEAT HEATER
*
20 A
33 DR P/SEAT SLI
*
20 A
34 ABS/VSA 10 A
35 SRS 10 A
36 HAC OP 20 A
37 BATT FAN 15 A
38 L SIDE DOOR LOCK 10 A
39 DR DOOR UNLOCK 10 A
Circuit Protected Amps
* Not available on all models
