ENGINE REMOVAL/INSTALLATION
8-9
ENGINE INSTALLATION

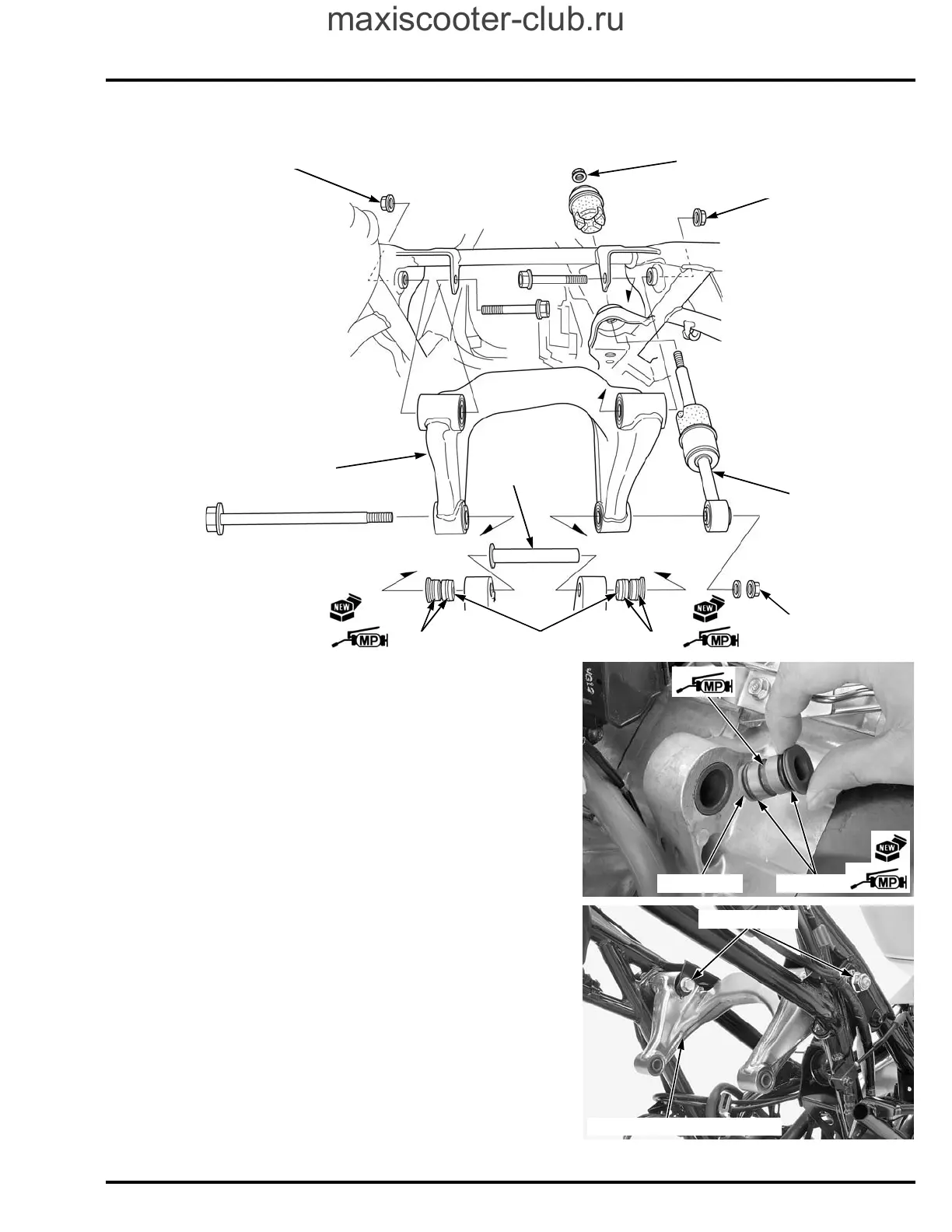

• Before installing the engine, route the wires, hoses, and cables properly (page 1-21).
Coat new O-rings with molybdenum disulfide paste
and install them to the engine mounting bushing
grooves.
Apply 0.50 – 0.70 g (0.018 – 0.025 oz) of molybde-
num disulfide paste to the center groove of the
engine mounting bushings and install them.
Loosely install the engine hangar bracket, bolts and
nuts.
59 N·m (6.0 kgf·m, 44 lbf·ft) 20 N·m (2.0 kgf·m, 15 lbf·ft)
59 N·m (6.0 kgf·m, 44 lbf·ft)
ENGINE HANGER BRACKET
O-RINGS BUSHINGS O-RINGS
59 N·m (6.0 kgf·m,
44 lbf·ft)
TENSION ROD
COLLAR
NUTS/BOLTS
ENGINE HANGER BRACKET
