BATTERY/CHARGING SYSTEM
19-2
BATTERY/CHARGING SYST EM

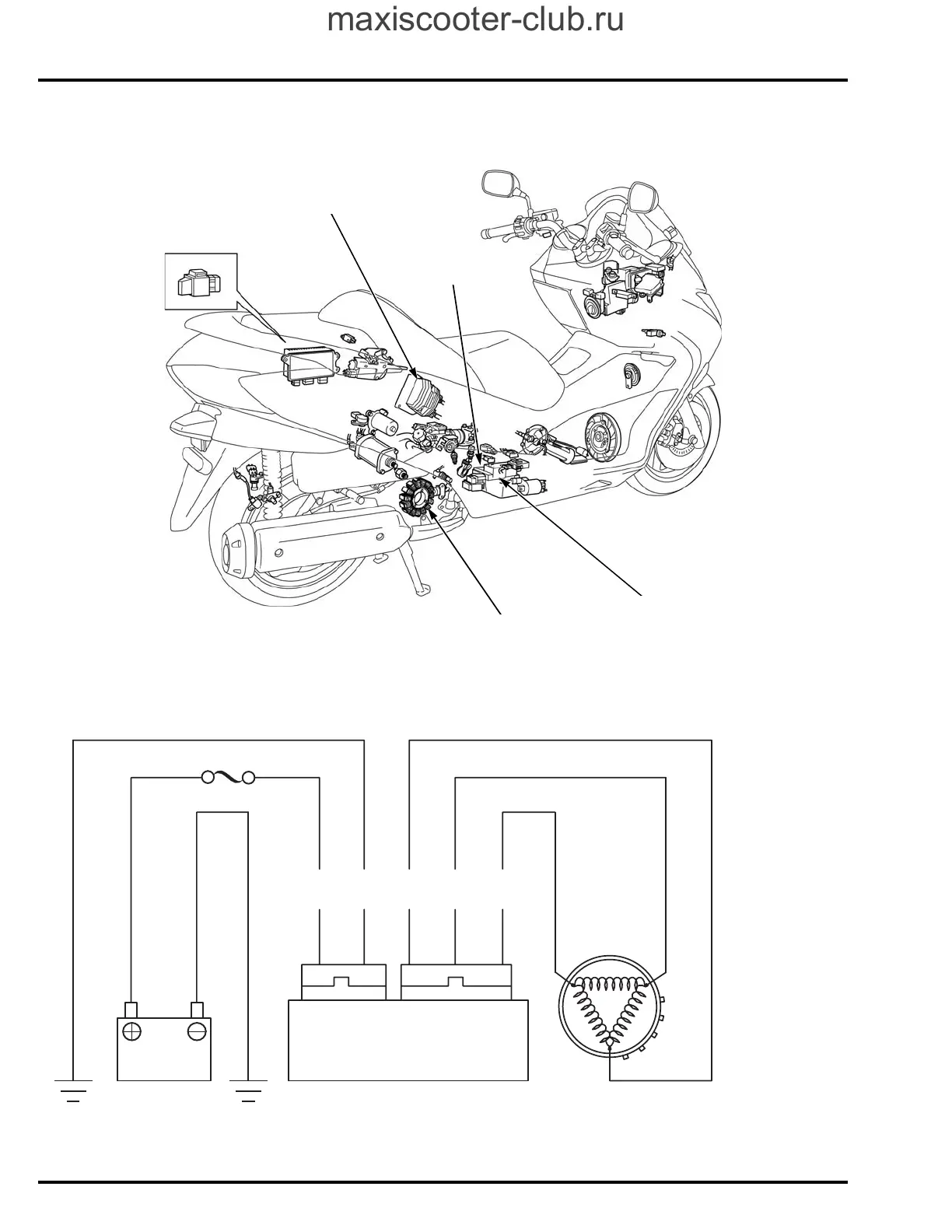

SYSTEM LOCATION
NSS250A shown:
SYSTEM DIAGRAM
REGULATOR/RECTIFIER
BATTERY
ALTERNATOR
FUSE/RELAY BOX:
– MAIN FUSE (40 A)
NSS250S:
BATTERY
MAIN A FUSE 40A
R/W G Y Y Y
REGULATOR/RECTIFIER
ALTERNATOR
G
R
W
Y
: Green
: Red
: White
: Yellow
