Honda Shadow Phantom 750 User Manual

(1)
(1) pin spanner
12 435
LEFT REAR (right side similar)
111

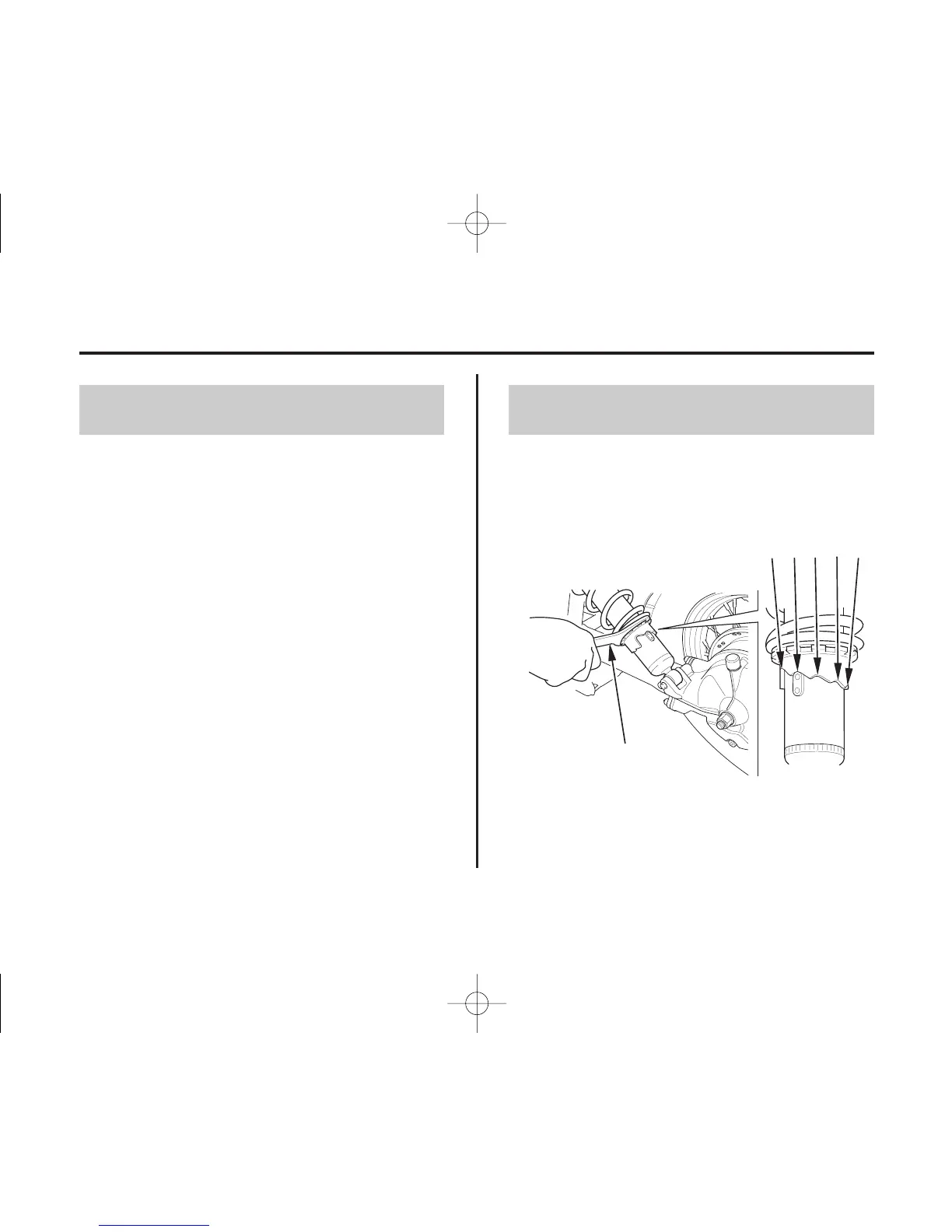

Rear Suspension Adjustment Rear Suspension Spring Pre-load
Suspension
Servicing Your Honda
Safety PrecautionsThe rear suspension can be adjusted for
rider (and passenger) weight and riding
conditions by changing the spring pre-load.
Refer to on page .
Do not attempt to disassemble, service, or
dispose of the damper; see your dealer.
The instructions found in this owner’s
manual are limited to adjustments of the
shock assembly only.
To adjust, use an appropriable pin spanner
or see your dealer.
(cont’d)
60
１０／０９／０２ １１：３７：０１ ３１ＭＦＥ６４０ ０１２０

Honda Shadow Phantom 750 Specifications

General

Engine Type	745cc liquid-cooled 52-degree V-twin
Bore and Stroke	79mm x 76mm
Compression Ratio	9.6:1
Transmission	Wide-ratio five-speed
Final Drive	Shaft
Front Suspension	41mm fork; 4.6 inches travel
Rear Suspension	Dual shocks with five-position spring-preload adjustability; 3.5 inches travel
Front Brake	Single 296mm disc with twin-piston caliper
Rear Brake	Drum
Front Tire	120/90-17
Rear Tire	160/80-15
Rake	34°
Wheelbase	64.6 inches
Seat Height	25.8 inches
Curb Weight	549 pounds
Trail	6.3 inches
Fuel Capacity	3.7 gallons
Induction	PGM-FI with automatic enrichment circuit, one 34mm throttle body
