Honda Shadow Phantom 750 User Manual

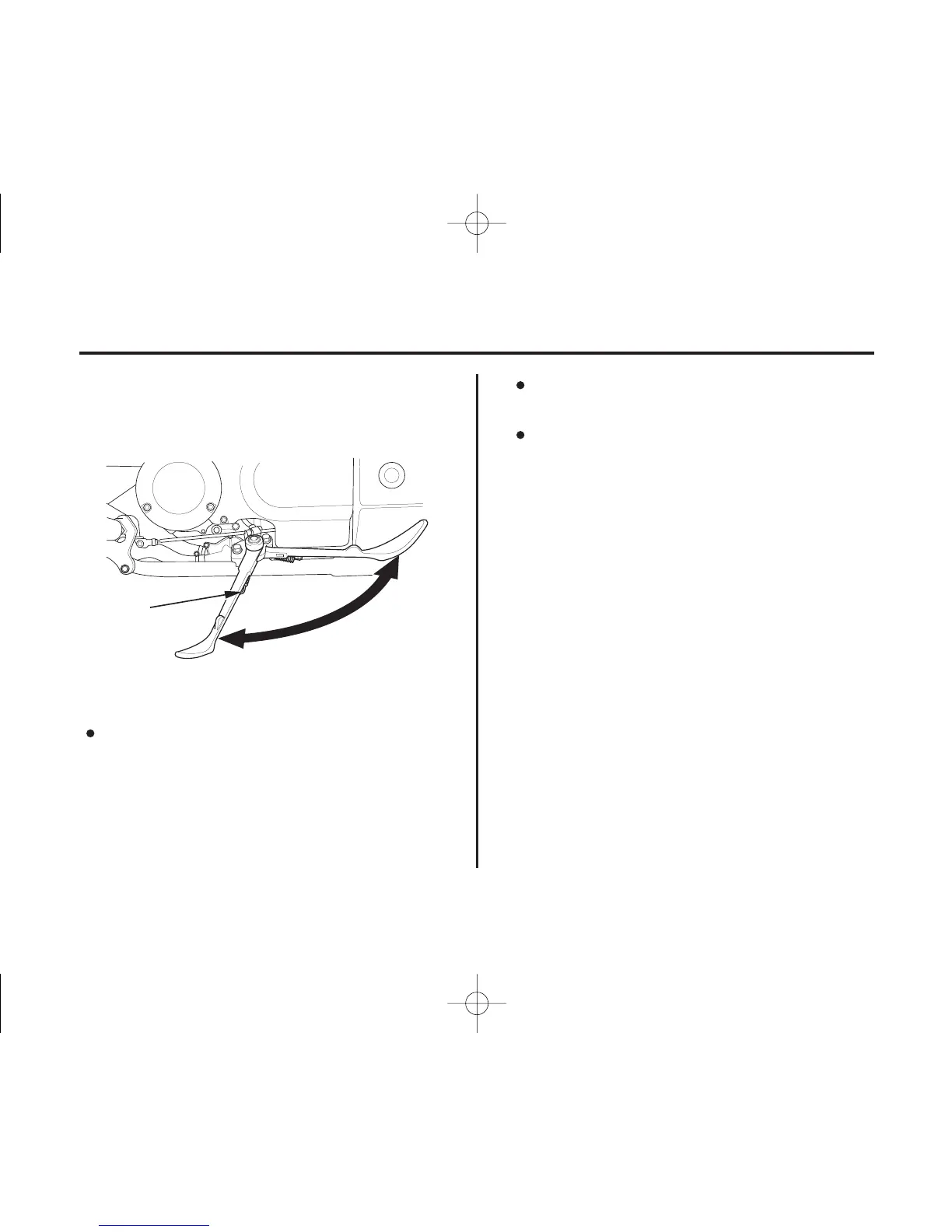

LEFT SIDE
(1) side stand spring
(1)
129
Side Stand
Servicing Your Honda
Safety PrecautionsRefer to on page . Check the spring for damage or loss of
tension.
Check the side stand ignition cut-off
system:
Sit on the motorcycle and put the
transmission in neutral.
Raise the side stand.
Start the engine.
Pull the clutch lever in.
Shift the transmission into gear.
Lower the side stand all the way.
The engine should stop as you lower the
side stand. If the engine doesn’t stop,
see your dealer for service.
Check that the side stand assembly is
working properly. If the side stand is
stiff or squeaky, clean the pivot area
and lubricate the pivot bolt with clean
grease.
1.
2.
3.
4.
5.
6.
60
１０／０９／０２ １１：３９：２２ ３１ＭＦＥ６４０ ０１３８

Honda Shadow Phantom 750 Specifications

General

Engine Type	745cc liquid-cooled 52-degree V-twin
Bore and Stroke	79mm x 76mm
Compression Ratio	9.6:1
Transmission	Wide-ratio five-speed
Final Drive	Shaft
Front Suspension	41mm fork; 4.6 inches travel
Rear Suspension	Dual shocks with five-position spring-preload adjustability; 3.5 inches travel
Front Brake	Single 296mm disc with twin-piston caliper
Rear Brake	Drum
Front Tire	120/90-17
Rear Tire	160/80-15
Rake	34°
Wheelbase	64.6 inches
Seat Height	25.8 inches
Curb Weight	549 pounds
Trail	6.3 inches
Fuel Capacity	3.7 gallons
Induction	PGM-FI with automatic enrichment circuit, one 34mm throttle body
