Rear Wheel
Removal
1.
Support your motorcycle securely and
raise the rear wheel off the ground using
the centre stand or a hoist.
2.
Remove the chain covers. 2 P. 68
3.
Remove the rear brake adjusting nut.
4.
Disconnect the brake rod from the brake
arm.
5.
Disconnect the brake stopper arm from
the brake panel by removing the cotter
pin, brake stopper arm nut, washer and
rubber grommet.
6.
Loosen the drive chain lock nuts and drive
chain adjusting nuts on both sides of the
swingarm.
7.
Remove the rear axle nut while holding
the rear axle shaft at the other end with a
wrench.
8.
Remove the drive chain from the driven
sprocket by pushing the rear wheel
forward.
9.
Remove the rear axle shaft, drive chain
adjusters, side collars and rear wheel from
the swingarm.
20181207113539_32KVMC000_eng_BOOK Page 83 Friday, December 07 2018 11:40:26 JST

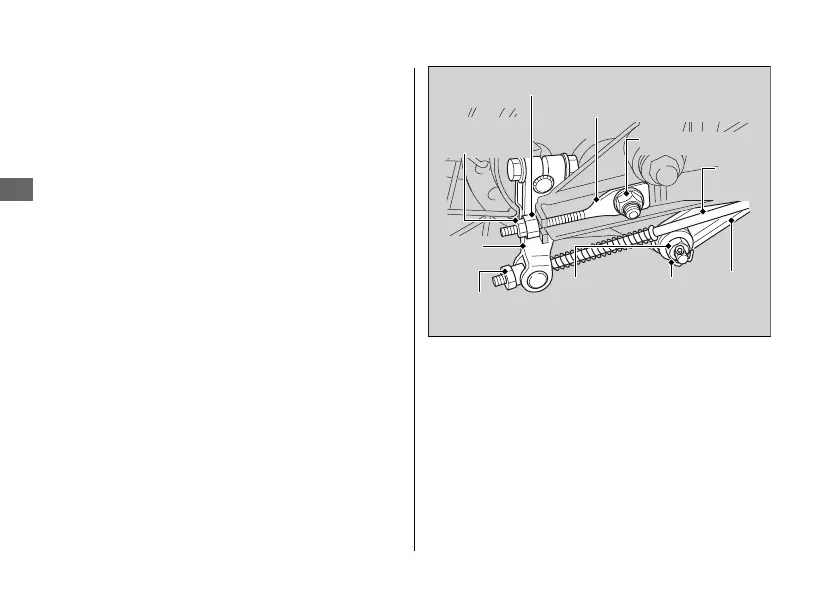

Tyre Puncture u Removing Wheels
Troubleshooting
80
Drive chain adjusting nut
Brake
stopper
arm nut
Drive chain
lock nut
Brake
arm
Rear brake
adjusting nut
Brake
stopper
arm
Cotter
pin
Brake
rod
Rear axle nut
Drive chain adjuster
