Honeywell 1000 Series User Manual

2
EN1R--9161 0006R10--NE
Ignition
72
115
60
50
113
Mounting hole Ø 3.2
Flame detection
30
29
19
Connector pins suitable for
Molex 3001 female connectors
Note: specific housings may deviate from drawing

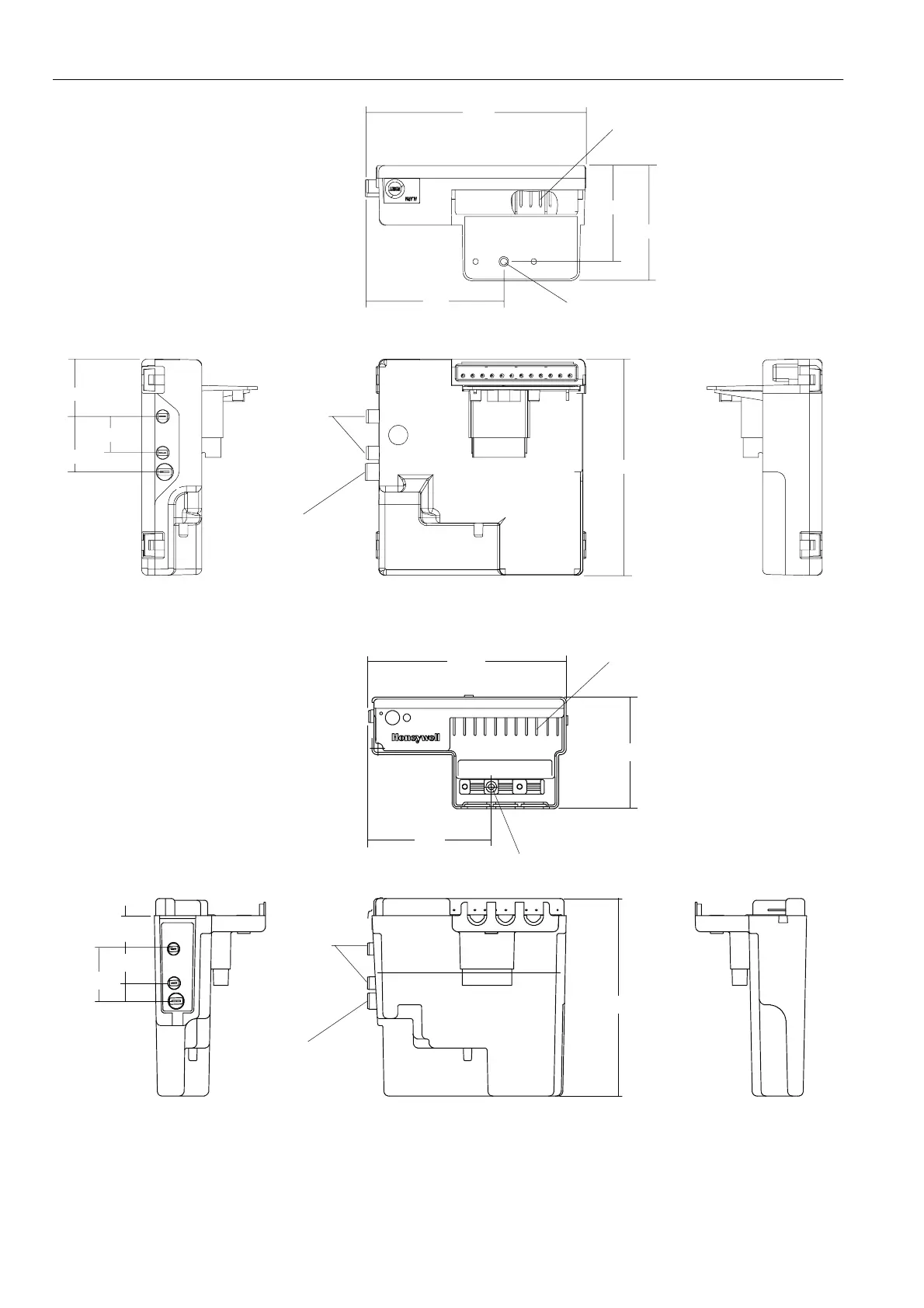

Fig. 1. Dimensional drawing “new style” housing in mm
111
Connector pins suitable
f
or
Molex 3001 female connectors
62
Mounting hole Ø 3.2
69
29
19
18.5
69
110
Ignition
Flame detection
Note: specific housings may deviate from drawing
Fig. 2. Dimensional drawing “old style” housing in mm

Honeywell 1000 Series Specifications

General

Housing Material	Plastic
Control Modes	PID, On/Off
Communication	RS-485
Power Supply	24V DC
Input Voltage	24V DC
Outputs	Digital and Analog
