Remark
Optional integrated flame relay available with safe separation
or opto coupler with safe separation.
N.C. contact of flame relay has no safe separation.
WARNING
Opto coupler interface needs a debounce time > 20
ms in order to prevent noise caused by transients on
mains.
9
8
65
L
10
12
N
712
LM
3
Optional
411
RS
Side connections **
*
LM -- Limiter
RS -- Reset switch
* See note 8.
** See page 10 fig. 16.
*** See page 10 fig. 17.
Optional ***

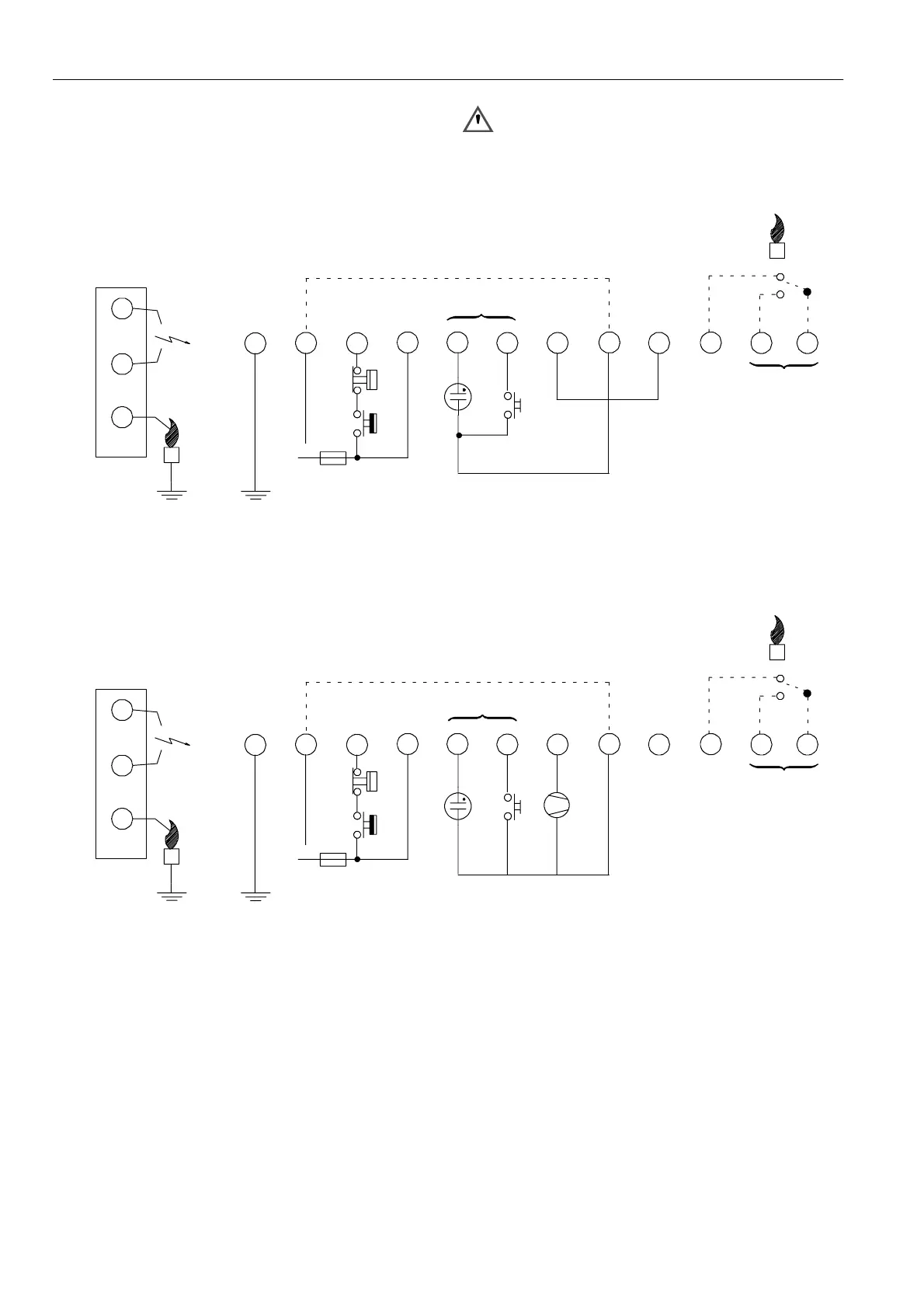

Fig. 10. Connection diagram S4565AD and BD
9
8
65
L
10
12
N
712
LM
3
Optional
411
RS
Side connections **
*
* See note 8.
** See page 10 fig. 16.
*** See page 10 fig. 17.
Optional ***
Optional
Fig. 11. Connection dia gram S4565BD and QD “1000” series for gas/air application

Honeywell 1000 Series Specifications

General

Housing Material	Plastic
Control Modes	PID, On/Off
Communication	RS-485
Power Supply	24V DC
Input Voltage	24V DC
Outputs	Digital and Analog
