SERIES 2000 ELECTRONIC TEMPERATURE SENSORS
7 63-2590—05

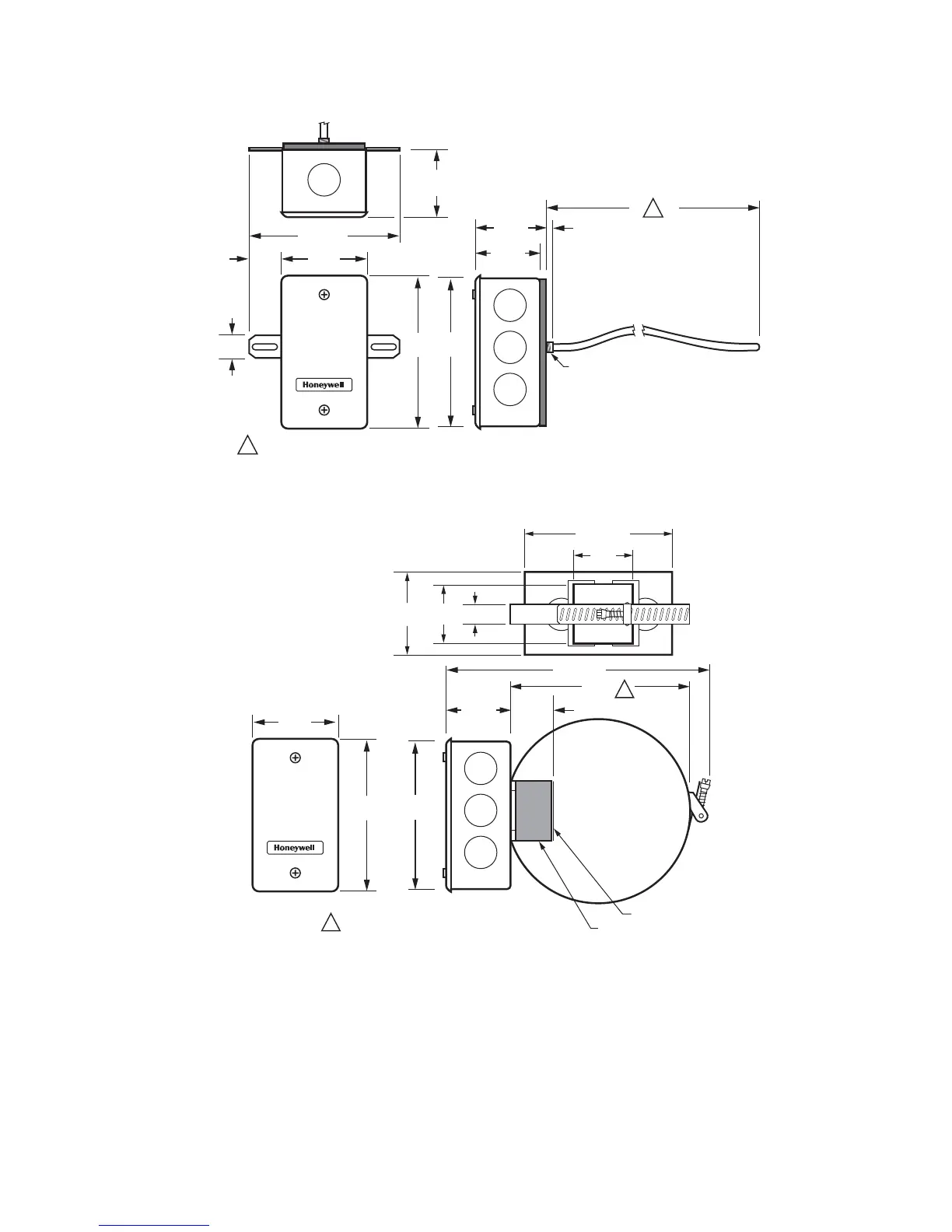

Fig. 7. C7021R, C7023R, C7041R dimensions in in. (mm).
Fig. 8. C7021K, C7023K, C7041K dimensions in in. (mm).
2-5/16
(59)
15/16
(23)
1-11/16
(43)
4-3/16
(107)
3/4
(19)
4
(70)
1-11/16
(43)
M22818
1-13/16
(46)
7/16 (12)
1/8 NPSM (3)
3-7/8 (99)
DEPENDING ON THE MODEL, THE ELEMENT LENGTH IS EITHER 12 FT (366 CM) OR 24 FT (732 CM).
1
1
2-5/16
(59)
4-3/16
(107)
4
(70)
1-11/16
(43)
7-1/8 (182)
9/16 (14)
1-1/2
(38)
1-1/2
(38)
2-5/16
(59)
M22134
1-1/4
(32)
5 (127)
MAXIMUM PIPE DIAMETER SHOWN.
MINIMUM PIPE DIAMETER: 1-5/8 (41)
1
1
4-3/16 (107)
COPPER PLATE
FOAM PAD
