11 - 5
Standard Cable Pinouts
Keyboard Wedge

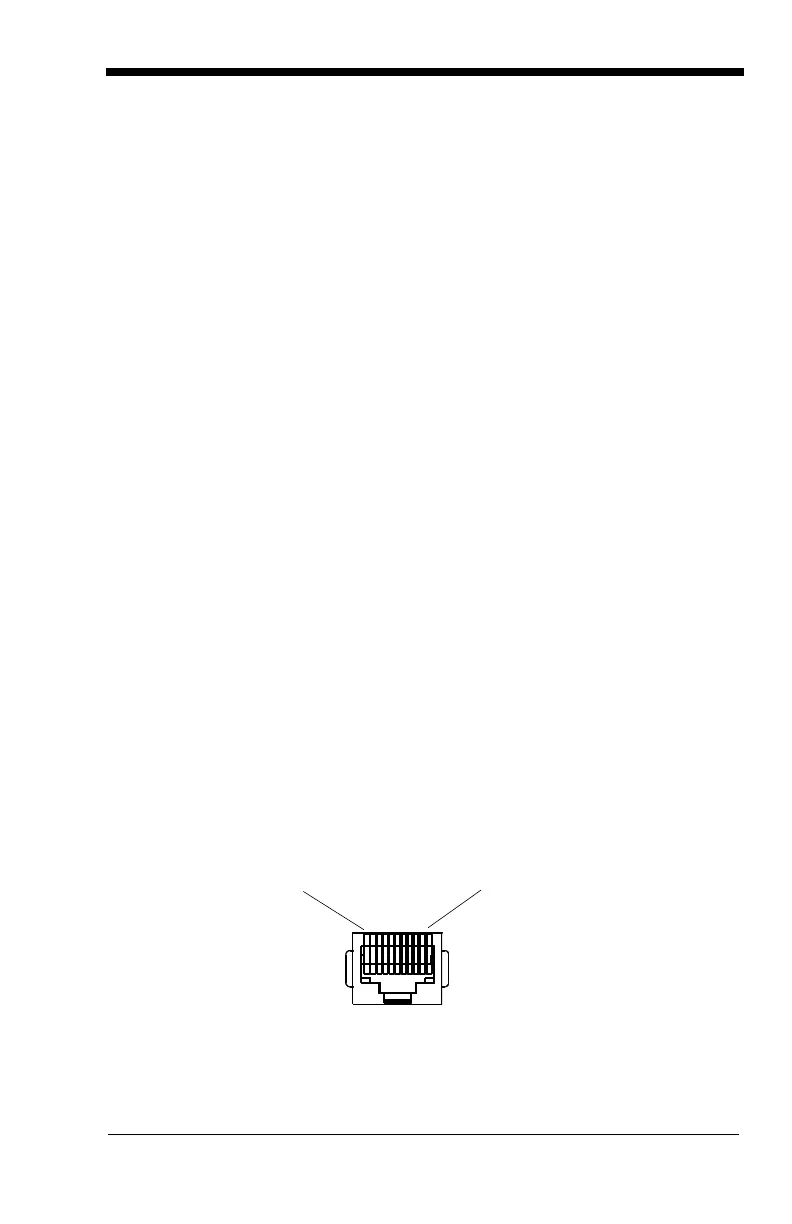

10 Pin RJ41 Modular Plug
connects to the base
1
2 Cord shield
3 Tied to supply power
4 Supply ground
5 Terminal clock
6 Terminal data
7 Supply power input (Refer to tables on page 11-3.)
8 Keyboard data
9 Keyboard clock
10
