Honeywell 2020-5

11 - 6

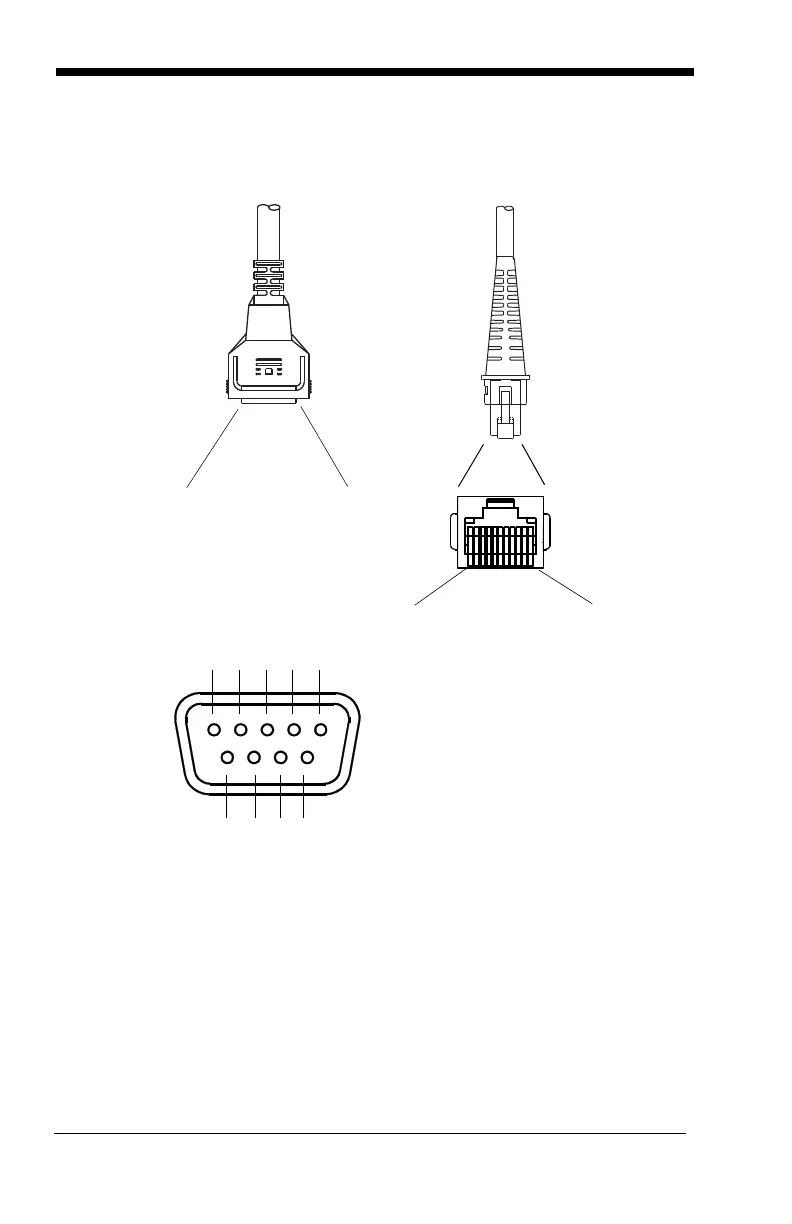

Standard Cable Pinouts
Wand Emulation
10 Pin Modular Plug connects to the base
1 2 Cord shield 3 Prog 1 (Tied to supply power for primary cable) 4 Supply ground 5 6 Bar code data output 7 Supply power input (Refer to tables on page 11-3.) 8 9 10
Bar code data output
Supply power input
9 Pin Type D Female
connects to your terminal
Supply ground Cord shield
1 2 3 4 5
6 7 8 9
