11 - 7
S

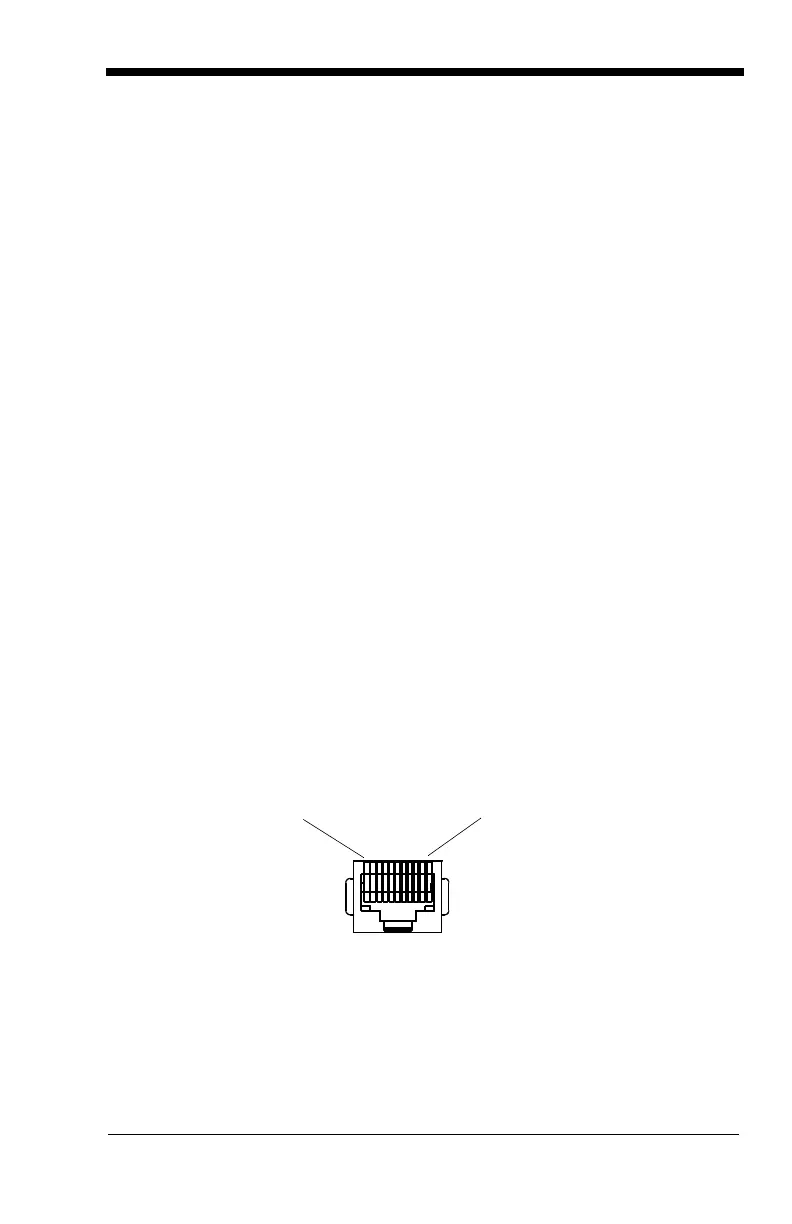

tandard Cable Pinouts
Serial Output
10 Pin RJ41 Modular Plug
connects to the base
1
2
Cord shield
3
Prog 1 (Tied to supply power for primary cable)
4
Supply ground
5
Receive data - Serial data to image scanner
6
Transmit data - Serial data from image scanner
7
Supply power input (Refer to tables on
page
11-3
.)
8
Request to send data
9
Clear to send data
10
168
170
Table of Contents
Default Chapter
7
Solids and Water Protection
7
Table of Contents
11
Chapter 1 - Getting Started
21
About this Manual
21
Unpacking the System
21
Models
21
Cordless System: Main Components
22
About the Battery
22
Proper Disposal of the Battery
23
Base Charge Mode
24
Linking Image Scanner to Base
25
Image Scanner Modes
25
Unlinking the Image Scanner
25
Single Image Scanner Operation
26
Locked Link Mode - Single Image Scanner
26
Open Link Mode - Single Image Scanner
26
Override Locked Image Scanner
26
Multiple Image Scanner Operation
27
Image Scanner Name
27
Changing Image Scanner Name - Serially
27
Changing Image Scanner Name - Via Bar Codes
28
Image Scanner Report
29
Application Work Groups
29
Application Work Group Selection
30
Resetting the Standard Product Default Settings: Current Application Work Group
31
Resetting the Standard Product Default Settings: All Application Work Groups
31
Using the Image Scanner with Bluetooth Devices
32
Changing Bluetooth PIN Code
32
Out-Of-Range Alarm
32
Duration
32
Alarm Sound Type
33
Data Accumulation Mode
33
Batch Mode Transmit Delay
34
Beeper and LED Sequences and Their Meaning
34
3820/3820I LED Sequences and Their Meaning
35
2020 LED Sequences and Their Meaning
35
Basic Operation of the Cordless System
36
System Conditions
37
Communication between the Cordless System and the Host
38
Connecting the Base When Powered by Host (Keyboard Wedge)
38
Reading Techniques
40
Resetting the Standard Product Defaults
40
Plug and Play
41
Keyboard Wedge Connection
41
Laptop Direct Connect
41
Rs-232
41
Wand Emulation Plug & Play
42
IBM 4683 Ports 5B, 9B, and 17 Interface
42
Connecting the Base with USB
43
IBM Surepos
44
USB PC or Macintosh Keyboard
44
Usb Hid
45
USB Com Port Emulation
45
Connecting the Base with Serial Wedge
46
Chapter 2 - Terminal Interfaces
49
Terminal ID
49
Supported Terminals
50
Keyboard Country
52
Keyboard Style
54
Keyboard Modifiers
55
Connecting the Base with RS-232 Serial Port
56
RS-232 Baud Rate
57
RS-232 Word Length: Data Bits, Stop Bits, and Parity
57
RS-232 Handshaking
58
Host ACK Selection
59
Host ACK Enable
60
Wand Emulation
62
Wand Emulation Connection
62
Wand Emulation Transmission Rate
63
Wand Emulation Polarity
63
Wand Emulation Idle
63
Wand Emulation Data Block Size
64
Wand Emulation Delay between Blocks
64
Wand Emulation Overall Checksum
64
Chapter 3 - Output
65
Good Read Indicators
65
Beeper - Good Read
65
Beeper Volume - Good Read
65
Beeper Pitch - Good Read
66
Beeper Duration - Good Read
66
LED - Good Read
66
Number of Beeps - Good Read
66
Good Read Delay
67
User-Specified Good Read Delay
67
Image Scanner Trigger Modes
67
Manual/Serial Trigger, Low Power
67
Automatic Trigger
69
Presentation Mode
69
Hands Free Time-Out
70
Reread Delay
70
User-Specified Reread Delay
70
Centering Window
71
Preferred Symbology
72
Symbology Chart
73
Output Sequence Overview
74
Output Sequence Editor
75
Require Output Sequence
75
Multiple Symbols
77
No Read
78
Video Reverse
78
Chapter 4 - Data Editing
79
Prefix/Suffix Overview
79
To Add a Prefix or Suffix
79
To Clear One or All Prefixes or Suffixes
80
To Add a Carriage Return Suffix to All Symbologies
81
Prefix Selections
81
Suffix Selections
82
Function Code Transmit
82
Intercharacter, Interfunction, and Intermessage Delays
82
Intercharacter Delay
83
User Specified Intercharacter Delay
83
Interfunction Delay
84
Intermessage Delay
84
Chapter 5 - Data Formatting
85
Data Format Editor Introduction
85
To Add a Data Format
85
Other Programming Selections
86
Data Format Editor Commands
86
Data Format Editor
88
Data Formatter
88
Alternate Data Formats
89
Chapter 6 - Symbologies
91
Introduction
91
All Symbologies
91
Message Length
92
Codabar
93
Codabar Start/Stop Characters
93
Codabar Check Character
93
Codabar Concatenation
94
Codabar Message Length
95
Code 39
95
Code 39 Start/Stop Characters
95
Code 39 Check Character
96
Code 39 Message Length
96
Code 39 Append
97
Code 32 Pharmaceutical (PARAF)
97
Full ASCII
98
Code 39 Code Page
99
Interleaved 2 of 5
99
Check Digit
99
Interleaved 2 of 5 Message Length
100
Code 93
101
Code 93 Message Length
101
Code 93 Code Page
101
Straight 2 of 5 Industrial
102
Straight 2 of 5 Industrial Message Length
102
Straight 2 of 5 IATA Message Length
103
Matrix 2 of 5
103
Matrix 2 of 5 Message Length
104
Code 11
104
Check Digits Required
104
Code 11 Message Length
105
Code 128
105
ISBT 128 Concatenation
106
Code 128 Message Length
106
Code 128 Code Page
106
Code 128 Function Code Transmit
107
Telepen
107
Telepen Output
107
Telepen Message Length
108
Upc a
108
UPC a Check Digit
108
UPC a Number System
109
UPC a Addenda
109
UPC a Addenda Required
109
UPC a Addenda Separator
110
UPC-A/EAN-13 with Extended Coupon Code
110
UPC E0 and UPC E1
111
UPC E0 and UPC E1 Expand
111
UPC E0 and UPC E1 Addenda Required
111
UPC E0 and UPC E1 Addenda Separator
112
UPC E0 Check Digit
112
UPC E0 Number System
112
UPC E0 Addenda
113
EAN/JAN 13 Check Digit
113
EAN/JAN 13 Addenda
114
EAN/JAN 13 Addenda Required
114
EAN/JAN 13 Addenda Separator
114
ISBN Translate
115
Ean/Jan 8
115
EAN/JAN 8 Check Digit
115
EAN/JAN 8 Addenda
116
EAN/JAN 8 Addenda Required
116
EAN/JAN 8 Addenda Separator
116
Msi
117
MSI Check Character
117
MSI Message Length
117
Plessey Code
118
Plessey Message Length
118
GS1 Databar Omnidirectional
118
GS1 Databar Limited
119
GS1 Databar Expanded
119
GS1 Databar Expanded Message Length
120
GS1 Emulation
120
China Post Code
121
Korea Post Code
122
Korea Post Message Length
122
Posicode a and B
122
Posicode Message Length
123
Codablock F
124
Codablock F Message Length
124
Code 16K
125
Code 16K Message Length
125
Code 49
125
Code 49 Message Length
126
Chapter 7 - Interface Keys
127
Keyboard Function Relationships
127
Supported Interface Keys
131
Chapter 8 - Utilities
133
To Add a Test Code I.D. Prefix to All Symbologies
133
Reset Image Scanner
133
Show Software Revision
133
Show Data Format
133
Image Scanner Report
134
Image Scanner Address
134
Base Address
134
Resetting the Standard Product Default Settings: Current Application Work Group
134
Resetting the Standard Product Default Settings: All Application Work Groups
135
Temporary Visual Xpress Configuration
135
Chapter 9 - Visual Xpress
137
Visual Xpress Introduction
137
Installing Visual Xpress from the Web
138
Chapter 10 - Serial Programming Commands
139
Conventions
139
Menu Command Syntax
139
Query Commands
140
Concatenation of Multiple Commands
140
Responses
141
Examples of Query Commands
141
Trigger Commands
142
Resetting the Standard Product Default Settings: Current Application Work Group
142
Resetting the Standard Product Default Settings: All Application Work Groups
143
Menu Commands
144
Terminal Interfaces
145
Output Selections
149
Prefix/Suffix Selections
151
Data Formatter Selections
152
Symbologies
152
Minimizing Bluetooth/Ism Band Network Activity
160
Chapter 11 - Product Specifications
163
3820 Product Specifications
163
3820I Product Specifications
164
2020-5BE Product Specifications
165
2020-CBE Product Specifications
166
Chapter 12 - Maintenance
171
Cleaning the Device
171
Inspecting Cords and Connectors
171
Replacing the 2020 Interface Cable
172
Troubleshooting Base
172
Chapter 13 - Customer Support
175
Product Service and Repair
175
Online Product Service and Repair Assistance
176
Limited Warranty
176
Appendix A - Reference Charts
179
Symbology Chart
179
Code Page Mapping of Printed Bar Codes
183
Appendix B - Minimizing Bluetooth/Ism Band Network Activity
185
Auto Reconnect Mode
185
Maximum Link Attempts
186
Relink Time-Out
186
Bluetooth/Ism Network Activity Examples
187
Sample Symbols
189
Programming Chart
191
