ANCHORING SAFE TO A CONCRETE FLOOR

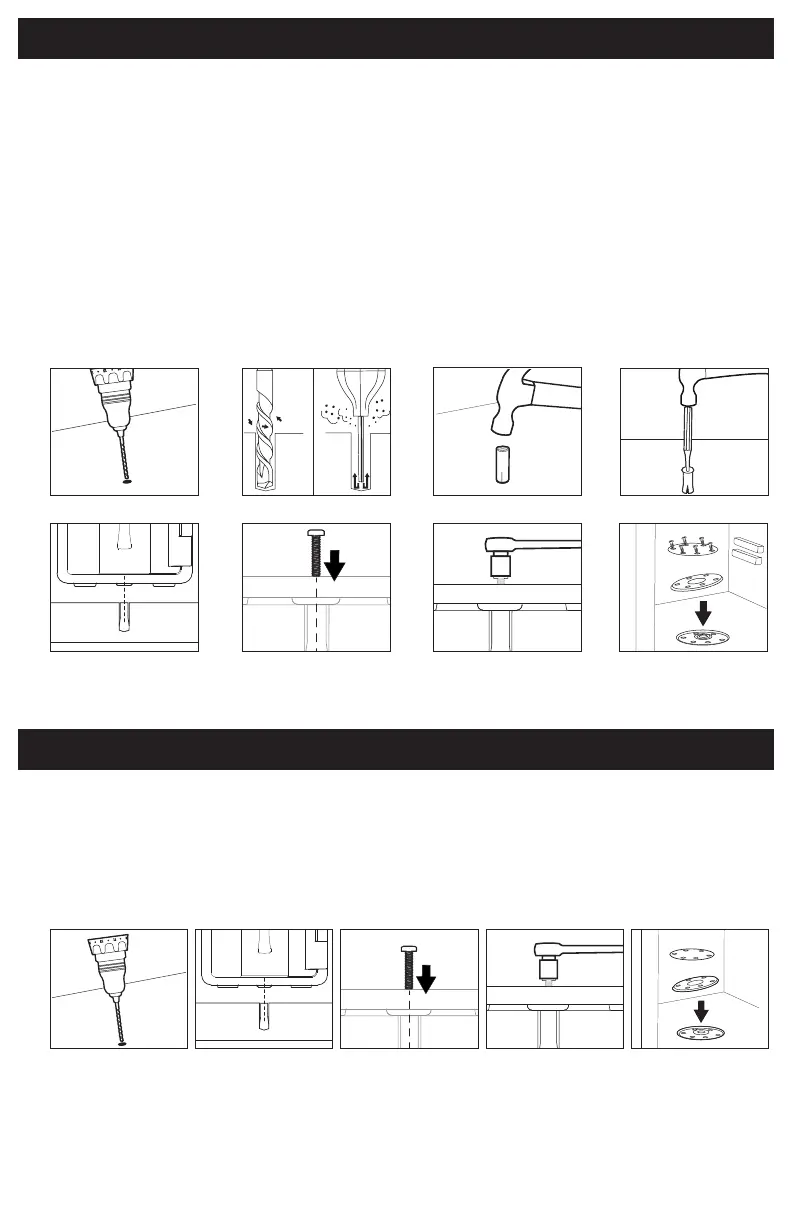

1. Using a 1/2” concrete drill bit, drill a hole in the floor with a depth of 1-5/8”. (Figures 1 & 2)
IMPORTANT: Hole must be 1-5/8” deep (minimum) to properly insert the Drop-in Anchor, and no
deeper than 1-3/4” to keep the anchor in position for the Hex Head Bolt.
2. Remove any excess dust from the hole. Insert the Drop-in Anchor (slotted side down) and tap into
place using a hammer, until it is flush with the floor surface. (Figure 3)
3. Insert an anchor punch or Phillips head screwdriver into the Drop-in Anchor and hammer to lock
into place. This will prevent it from turning when mounting the safe. (Figure 4)
4. Place the safe back into position, lining up the mounting hole. (Figure 5)
5. Insert the Hex Head Bolt, through the safe floor and into the Drop-in Anchor. (Figure 6)
6. Secure the Hex Head Bolt tightly using a socket wrench. (Figure 7)
7. Replace the gasket and mounting plate cover. (Figure 8)
Figure 5
Figure 1
Figure 8
Figure 4
Figure 3
Figure 6
Figure 2
Figure 7
1. Use a 1/4” Wood Drill Bit to drill a hole in the floor with a depth of 1-1/2”. (Figure 1)
2. Remove any excess dust from the hole.
3. Place the safe back into position, lining up the mounting hole. (Figure 2)
4. Insert a Wood Lag Bolt through the safe bottom and into the floor hole. (Figure 3)
5. Secure the Wood Lag Bolt tightly using a 9/16” socket wrench. (Figure 4)
6. Replace the gasket and mounting plate cover. (Figure 5)
ANCHORING SAFE TO A WOOD FLOOR
Figure 1 Figure 2 Figure 3 Figure 4 Figure 5
