Honeywell 35 Series NVR HDD Installation Guide
Install HDDs in NVR
Note:
The below description is taking HN35080200 as an example.
1. Take out 1~2 HDDs. Place 2 screws on each HDD as below. Lock these 2 screws loosely.
Note:
Don’t tighten the 2 screws.

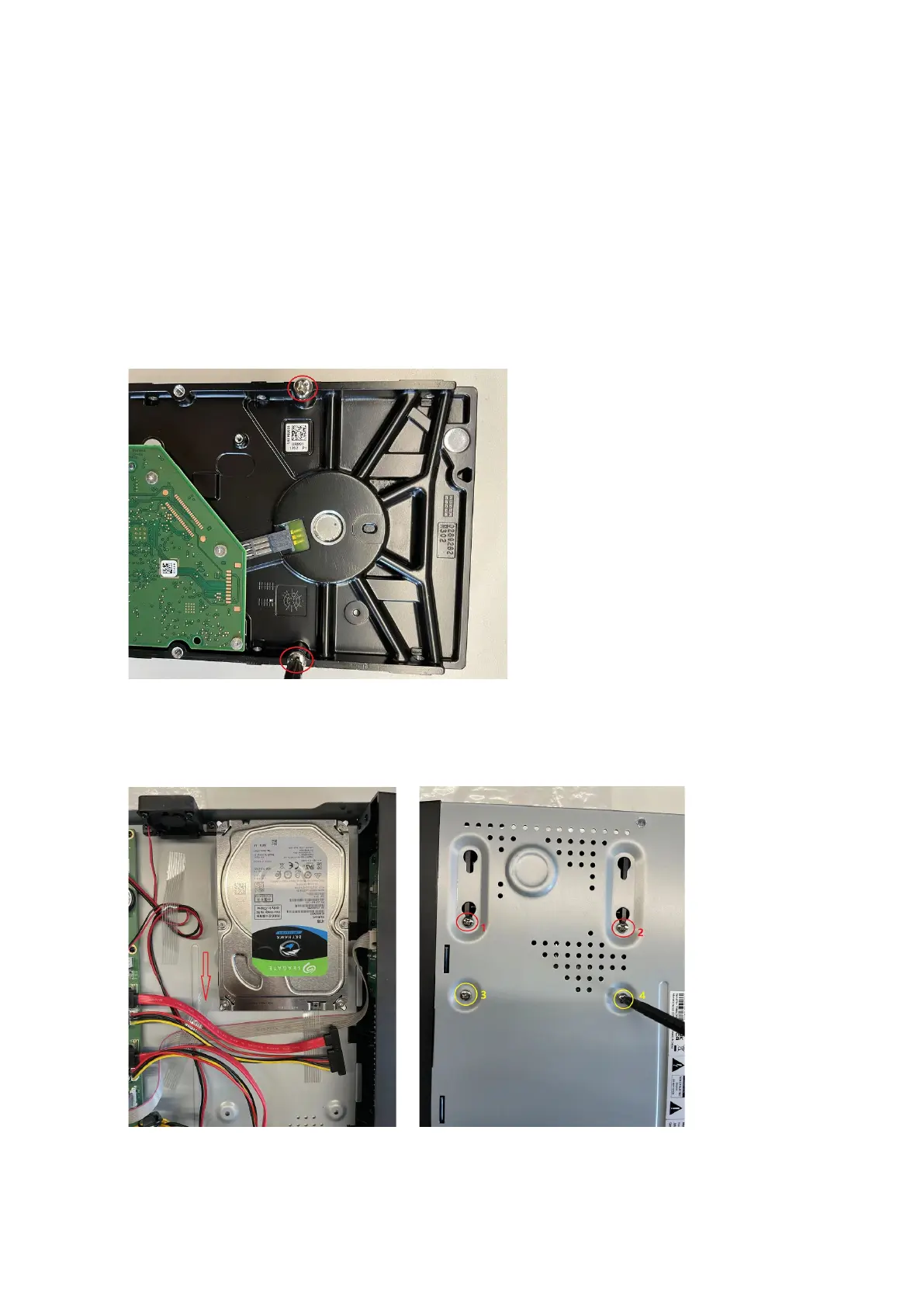

Figure 4 Lock Screws for HDD
2. Slide the HDD gently in the NVR, making sure the 2 screws in step 1 are in the following
screw holes: No.1 and No. 2 as shown below. Tighten screws for No.1 an No. 2 and add two
more screws for No.3 and No. 4 and tighten up them.
Figure 5 Lock Screws for HDD
3. Plug the SATA and power connectors into the HDDs.
