HONEYWELL 7000 SOLID STATE ALARM SYSTEM
69-1192—1
3
INSTALLATION
When Installing this Product...
1. Read these instructions carefully. Failure to follow them
can damage the product or cause a hazardous condition.
2. Check the ratings given in the instructions and marked
on the product to make sure the product is suitable for
the application.
3. Installer must be a trained, experienced service
technician.
4. After installation is complete, check out the product
operation as provided in these instructions.
Overview
This section provides a general overview of the system
(Fig. 1) and installation and hookup instructions for the
following equipment:
1. Control Panel:
a. Enclosure.
b. Circuit Board.
c. Transformer.
2. Point Expansion Module.
3. RF Expansion Module.
4. RF Receiver.
5. RF Transmitter.
6. Keypad.
Control Panel
The control panel performs the main functions of the system.
The following can be found inside the control panel
enclosure:
a. Control Panel Circuit Board.
b. Batteries.

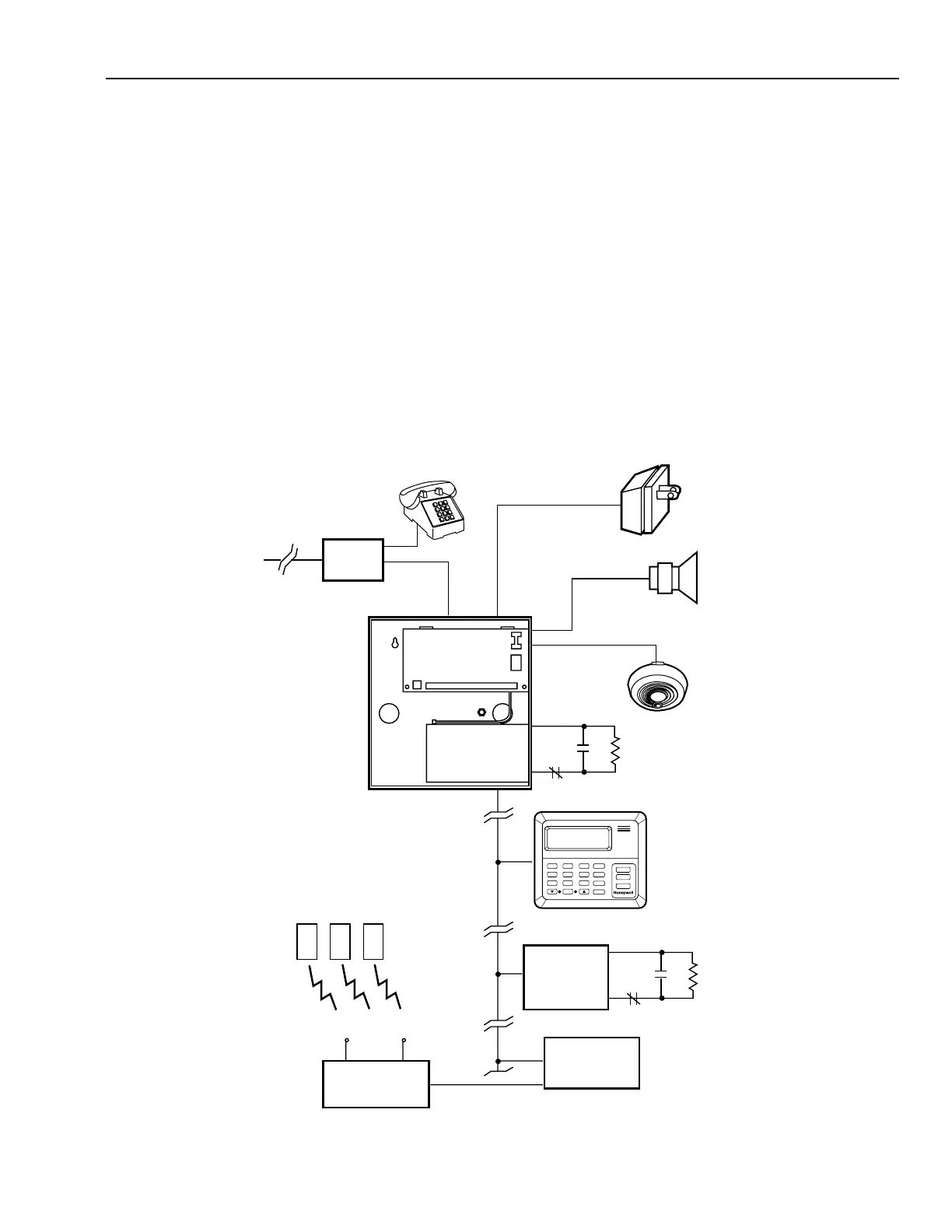

Fig. 1. General overview of Honeywell System 7000.
BATTERY
TB1
J1
S1
CONTROL PANEL
HARDWIRE LOOPS
MODES
OPTIONS
OK
CANCEL
FIRE
POLICE
SPECIAL
1
2
3
45
6
7
89
0
POINT
EXPANSION
MODULE (PEM)
RF EXPANSION
MODULE (RFEM)
RF RECEIVER
KEYPAD
RF TRANSMITTERS
HBUS
HARDWIRE LOOPS
TELCO
LINES
PLUG-IN
TRANSFORMER
RJ31X
HORN/BELL
SMOKE
DETECTOR
M10907
